Renovation Set IAN 88918

Safety instructions:

• Intended use: Suitable only for private use in dry indoor rooms!

• The renovation fitting is intended as a temporary replacement for a ceiling fitting!

• The fitting may only be installed at a minimum height of 2.30 m and out of arm‘s reach. If you touch the lampholder during operation, there is a risk of severe burns caused by the lamp, which is

getting very hot during operation!

• Installation must be carried out by a fully qualified electrician, as non-professionals are not able to assess the dangers of electrical power properly! Please contact a qualified electrical fitter. Risk of

electric shock if used incorrectly!

Scope of delivery:

Technical data:

• Fitting:

Type 912, 250V, max. 100W, E27

• Bulb:

Osram Classic Eco, 230V, 46W, 700lm, E27

• Voltage tester:

Type 19300, 100 - 250V AC, 50 - 500 Hz, -10 to +50°C

• Instruction manual

• Safety instructions

Installation instructions:

1. The fuse of the power circuit on which work is to be carried out must be switched off and secured to prevent switching on again.

2. Check that all conductors are no longer live using a voltage tester. (Figure 1)

3. If the cable ends have not been stripped, remove the insulation from the cable and cores using a suitable tool. (Figure 2, Figure 3)

4. Place the cable into the strain relief device and close the fixing clamp. (Figure 4, Figure 5 Figure 6)

5. Insert the stripped L conductor into clamp „L“, the stripped neutral conductor into screw clamp „N“ of the fitting and tighten the

screws – the PE conductor is not connected. (Figure 7)

6. Screw in the bulb and then switch on the fuse again. (Figure 8)

Replacing the bulb:

1. Switch off the corresponding fuse and secure to prevent switching on again.

2. Allow the bulb to cool down to room temperature and then unscrew in anti-clockwise direction.

3. Screw in the new bulb in clockwise direction, then switch on the fuse again.

Disposal instruction:

This product may be disposed with your other household waste!

Warranty for type 912 + type 19300:

During manufacturing this REV product is passed through several quality testing stations which are set up with newest technology. Should nevertheless a defect arise, REV offers a warranty to the fol-

lowing extent:

1. The duration of the warranty is 36 months after the date of purchase.

2. The unit is either repaired or replaced by REV free of charge or if it can be shown that it has become unusable during the warranty period due to a manufacturing or material defect.

3. The liability does not cover transport damages or damaged incurred through defective installation.

4. If REV repudiates the warranty claim and no objection is made within 6 months, the right to repair becomes time-barred.

5. In a warranty case the unit must be sent to the dealer or REV together with the sales slip and a short description of the defect.

6. If there is no proof for a warranty liability being in place, any repair carried out will be invoiced.

Producer: REV Ritter GmbH • Frankenstr. 1-4 • D-63776 Mömbris • www.rev.biz • [email protected] • Tel: +49 180 500 2734

Service: REV Ritter GmbH • Frankenstr. 1-4 • D-63776 Mömbris • www.rev.biz • [email protected] • Tel: +49 180 500 2734

04.13

3

• 

Kunnostusvälinesarja IAN 88918

Turvallisuusohjeita:

• Määräysten mukainen käyttö: soveltuu vain yksityiskäyttöön kuivissa sisätiloissa!

• Kunnostuksen yhteydessä käytettävä lampunkanta on tarkoitettu kattovalaisimen ohimeneväksi korvikkeeksi!

• Lampunkannan saa asentaa vain 2,30 m:n vähimmäiskorkeudelle käsien ulottumattomiin! Lampun kuumeneminen käytössä saattaa johtaa palovammoihin, jos lampun kantaan kosketaan käytön

aikana!

• Asennuksen saa suorittaa vain pätevä sähköasentaja, sillä ammattitaidoton henkilö ei osaa arvioida sähkövirran aiheuttamia vaaratilanteita! Epäasianmukaisessa käytössä on olemassa sähköiskun

vaara!

Toimituksen sisältö:

Tekniset tiedot:

• Lampunkanta:

tyyppi 912, 250V, max. 100W, E27

• Lamppu:

Osram Classic Eco, 230V, 46W, 700lm, E27

• Jännitetesteri:

tyyppi 19300, 100 – 250V AC, 50 – 500Hz, -10 ... +50 °C

• Käyttöohje

• Turvallisuusohjeita

Asennusohje:

1. Sen virtapiirin varoke, jossa tehdään töitä, on kytkettävä pois päältä ja varmistettava jälleenkytkemistä vastaan!

2. Jännitteettömyys tulee tarkistaa jännitetesterillä kaikista johtimista! (kuva 1)

3. Jos johtoja ei ole kuorittu, poista johdon ja johtimien eriste sopivalla työkalulla ! (kuva 2, kuva 3)

4. Ripusta johto vedonpoistimeen ja sulje pitosanka ! (kuva 4, kuva 5, kuva 6)

5. Laita kuorittu L-johdin lampunkannan liittimeen ”L”, kuorittu nollajohdin liitinruuviin ”N” ja ruuvaa kiinni – suojajohdinta ei liitetä! (kuva 7)

6. Ruuvaa lamppu paikalleen ja kytke sitten varoke jälleen päälle! (kuva 8)

Lampun vaihto:

1. Kytke vastaava varoke pois päältä ja varmista jälleenkytkemistä vastaan!

2. Anna lampun jäähtyä huoneenlämpöiseksi ja kierrä sitten irti vastapäivään!

3. Kierrä uusi lamppu paikalleen myötäpäivään ja kytke varoke jälleen päälle!

Hävittämisohje:

Tuotteen saa hävittää talousjätteen mukana!

Takuu varten tyyppi 912 + tyyppi 19300:

Tämä REV-tuote läpikäy valmistuksen aikana useampia tekniikan uusimpien tietojen mukaan laadittuja koestusasemia. Mikäli tuote on tästä huolimatta puutteellinen, suorittaa REV ostajalle takuukorvauk-

sen seuraavassa määrin:

1. Takuun kestoaika on 36 kuukautta ostopäivästä lukien.

2. REV korjaa laitteen maksutta tai vaihtaa sen uuteen, mikäli se tulee takuuajan kuluessa todistettavasti valmistus- tai materiaalivirheen vuoksi käyttökelvottomaksi.

3. Valmistajan vastuu ei kata kuljetusvaurioita eikä virheellisestä asennuksesta aiheutuneita vaurioita.

4. Mikäli asiakas ei esitä vastalausetta 6 kuukauden kuluessa siitä kun REV on kieltäytynyt hyväksymästä takuuvaadetta, niin oikeus korjaukseen raukeaa vanhenemisen vuoksi.

5. Takuutapauksessa tulee laite lähettää jälleenmyyjälle tai suoraan valmistajalle (REV) ostotositteen ja lyhyen puutteellisuusselostuksen kera.

6. Ilman takuutositetta voidaan korjaus suorittaa ainoastaan laskutusta vastaan.

Producer: REV Ritter GmbH • Frankenstr. 1-4 • D-63776 Mömbris • www.rev.biz • [email protected] • Tel: +49 180 500 2734

Service: REV Ritter GmbH • Frankenstr. 1-4 • D-63776 Mömbris • www.rev.biz • [email protected] • Tel: +49 180 500 2734

3

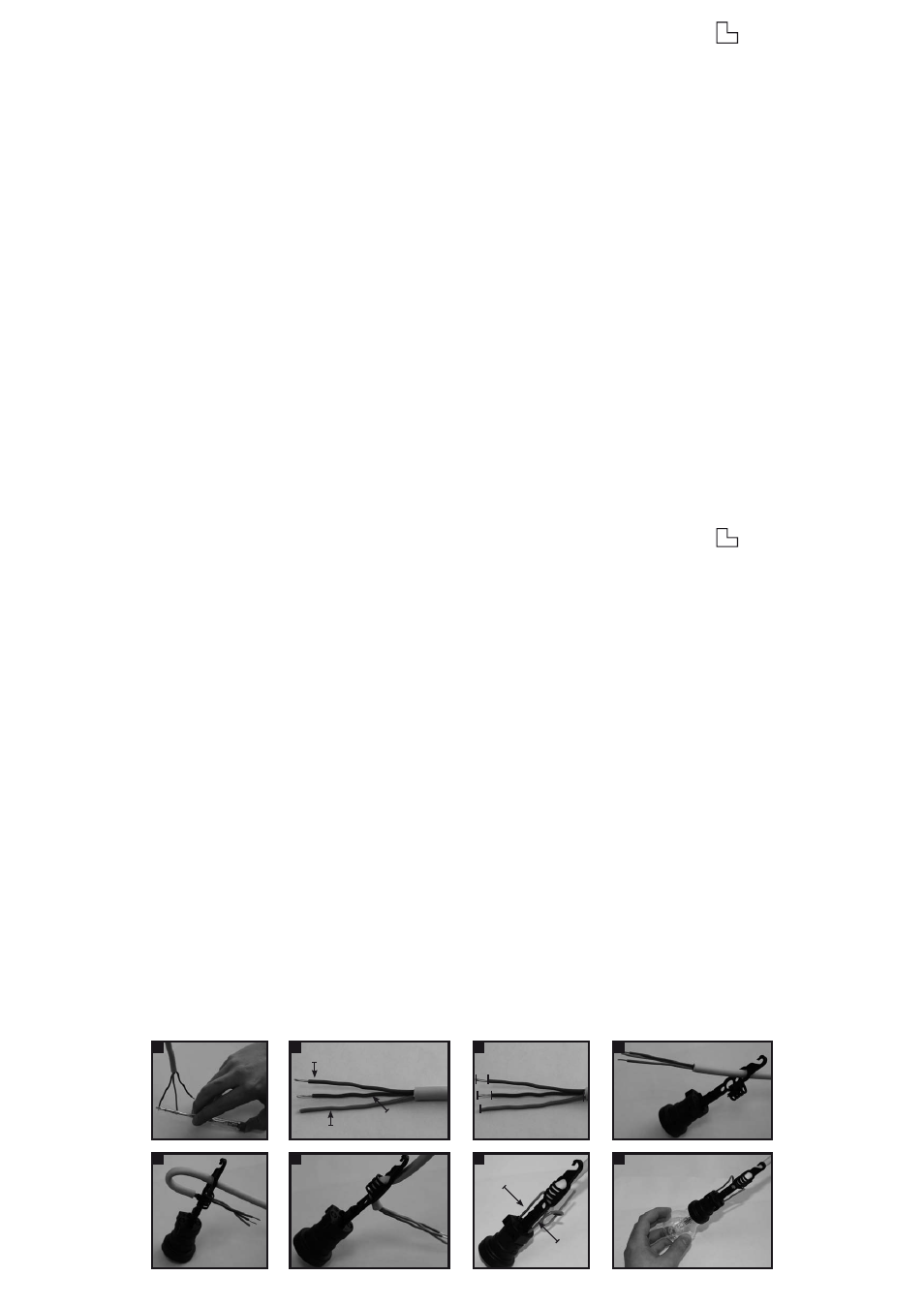

L conductor (black/brown) / L-johdin (musta/
