Item
Description
Stock-no.
1
Pump casing
1349152092
2
Bearing plate A/motor mount
1349152106
3
Ejector
1349152114
4
Rotor + shaft (1~ 230V)
1349152122
4
Rotor + shaft (3~ 400V)
1349152130
5
Impeller
1349152149
7
Peeler, 2-part
1349152157
8
Venturi pipe
1349152165
9
Nozzle
1349152173
10
Duocone seal
1349152181
11
Stator ass'y (1~ 230V)
1349152190
11
Stator ass'y (3~ 400V)
1349152203
12
Bearing plate B
1349152211
13
Motor fan
1349152220
14
Cover, motor fan
1349152238
15
Terminal board
1349152246
16
Terminal box (1~ 230V)
1349152254
Item
Description
Stock-no.
16
Terminal box (3~ 400V)
1349152240
17
Splash ring
1349152262
18
Hex. nut, self-locking M 10
6202002313
19
Grooved roller bearing 6204
7100016820
20
Grooved roller bearing 6204
7100016820
21
Spacer
1349152270
22
Tie rod, motor M 5x150
1349152289
23
Capacitor 35
μF
8050152295
24
Drain plug 1/4"
6109149193
25
Drain plug 1/4"
6109149193
26
O-ring
7632152307
27
Flat packing ø 48
1349152319
28
Flat packing ø 55
1349152327
31
Spacer
1349152335
32
Feather key A4x4x10
6721152349
33
Impeller cover
1349152351
34
Hex. head screw M 5x60
6103152362
9
Spare Parts List

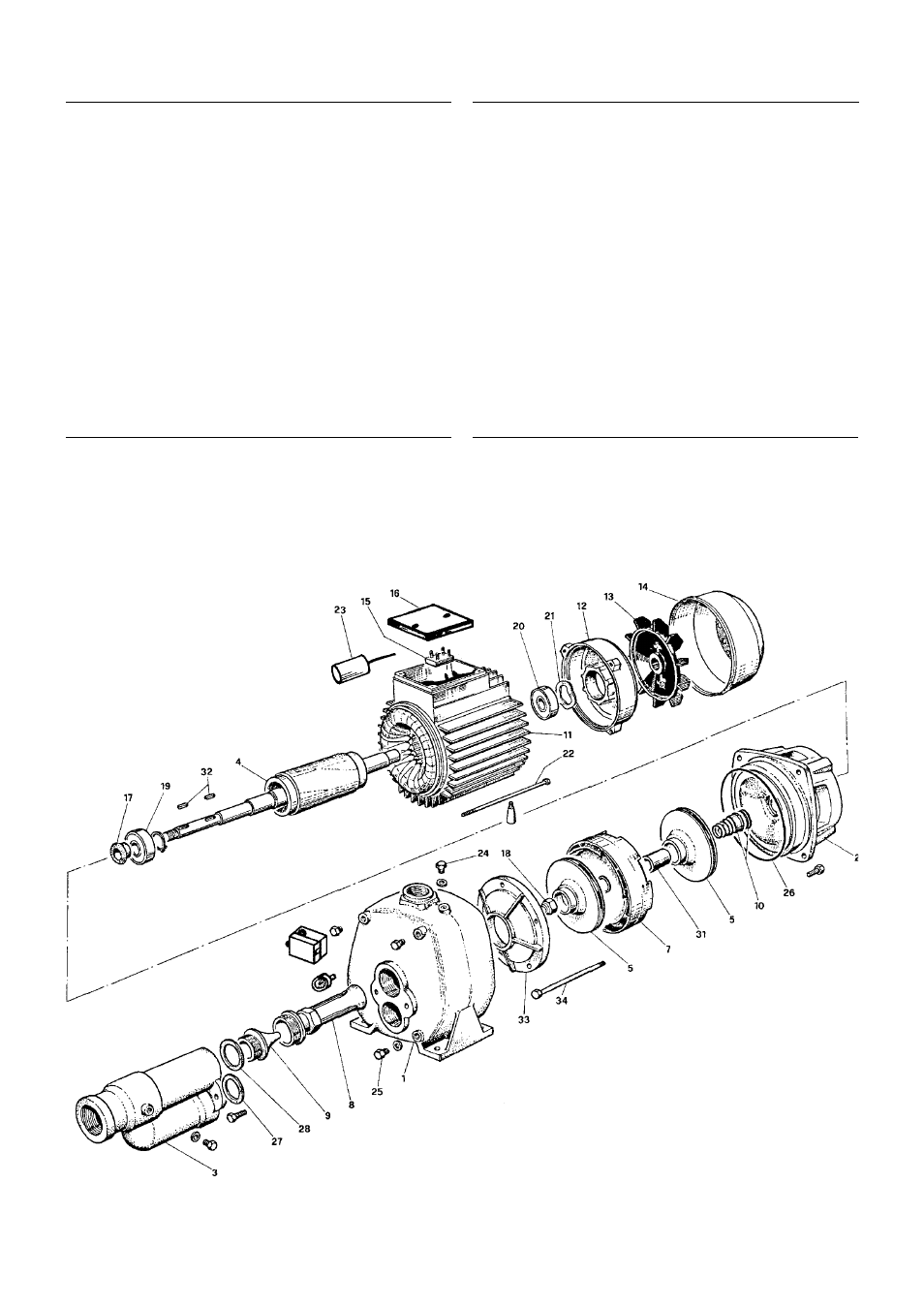

10 Exploded View Drawing
