www.smoothfitness.co.uk 29
ASSEMBLY

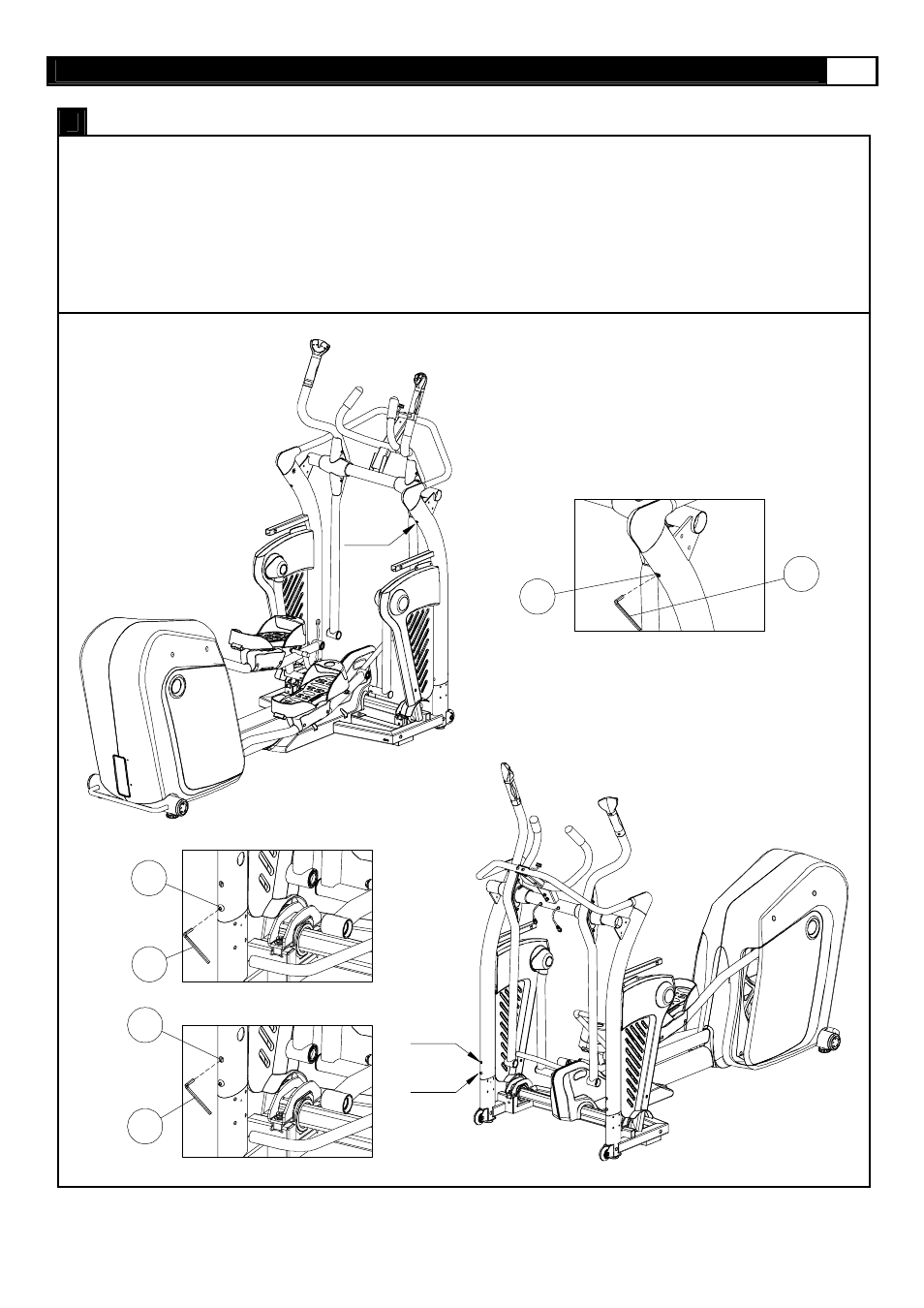

STEP 9: Tighten all Bolts
(A) Tighten the M8 x 65mm Allen Head Cap Bolt by 6mm Allen Key (D) as show in STEP1.
(B) Tighten the M8 x 20mm Allen Head Bolt (504) by 5mm Allen Key (C) as show in STEP2.
(C) Tighten the Fix Bolt (401) by 5mm Allen Key (C) as show in STEP3.
STEP 2
STEP1
STEP 1
416
D
STEP 1
STEP 3
STEP 3
STEP 2
504
401
C
C
