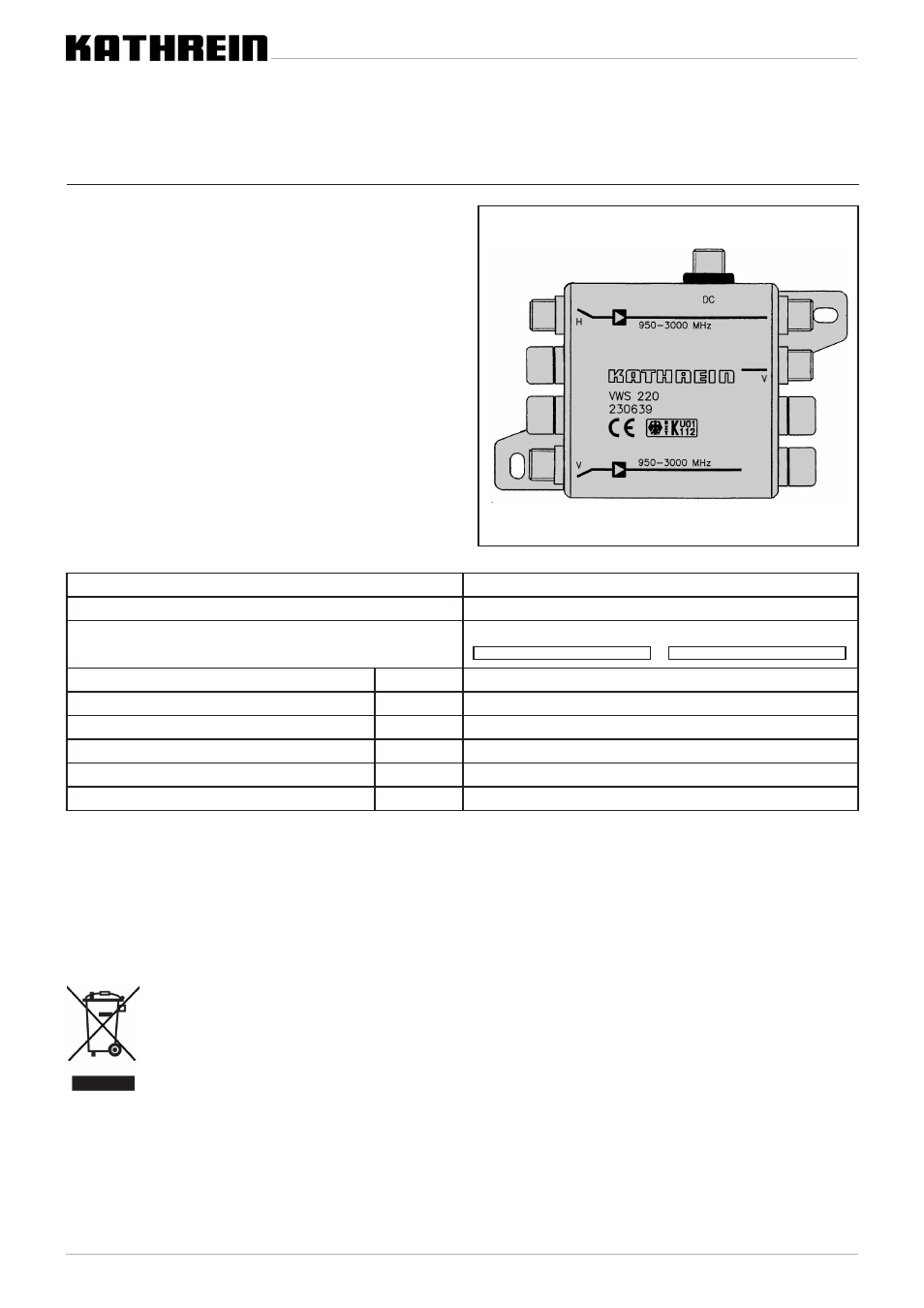

Broadband amplifier VWS 220
230639
935.1993/A/0705/1.2e
• Broadband amplifier 950-3000 MHz for use in connection
with UWS 78.
• Compensates the attenuation of 30 m coaxial cable
LCD 90.
• Integrated DC bypass for both amplifier circuits. Each
circuit 400 mA max.
• Power supply to the amplifier either via the horizontal
output or the DC input 1)
• The unit corresponds to: EN 50083-1, Stand 1993
EN 50083-2, Stand 1996
EN 50083-2/A1, Stand 1997
Type VWS 220
Order no. 230639
Inputs 2
Frequency range MHz 950-3000 950-3000
Gain dB 6-122)
Noise factor dB 7
Max. output level dBµV 1053) / 954)
Current drain mA typ. 65
Ambient temperature °C - 20 bis + 55
1) Attention! For power supply to the amplifier only use the Kathrein power supply unit NCF 18, Order no. 230636.
Power supply to LNBs via the DC input is not possible.
2) Frequency dependent amplification which compensates the cable loss.
3) Interfering signals 3rd order relative to 35 dB I mod., 2 transmitter measurement method acc. to EN 50083-3.
4) Interfering signals 2nd order relative to 35 dB I mod., 2 transmitter measurement method acc. to EN 50083-3.
