LINDY NetCam
User Manual English
Benutzerhandbuch Deutsch
LINDY No. 32444
www.LINDY.com
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (Feb -2003)
English Manual
English Manual
Introduction
Please check the package contents before proceeding, you should
find the following items included.
1. The LINDY NetCam
2. Power supply unit
3. Mounting bracket
4. I/O Terminal block connector
5. This user manual
6. CD-ROM containing driver, software and user manual
Description and Installation
The following elements can be found on the front of the camera: The
lens, the microphone and the status LED. On the back panel you can
find: the power connector, the I/O terminal block, the Ethernet jack
and the label containing the serial number. To connect the camera
via a hub to an existing network, please use a standard 1:1 patch
cable, to connect it directly to a PC, please use a crossover patch
cable.
If you wish to connect any external components (e.g. sensors/
alarms) then please refer to user manual on the CD-ROM. You can
now proc eed to the installation and applying power to the LINDY
NetCam.

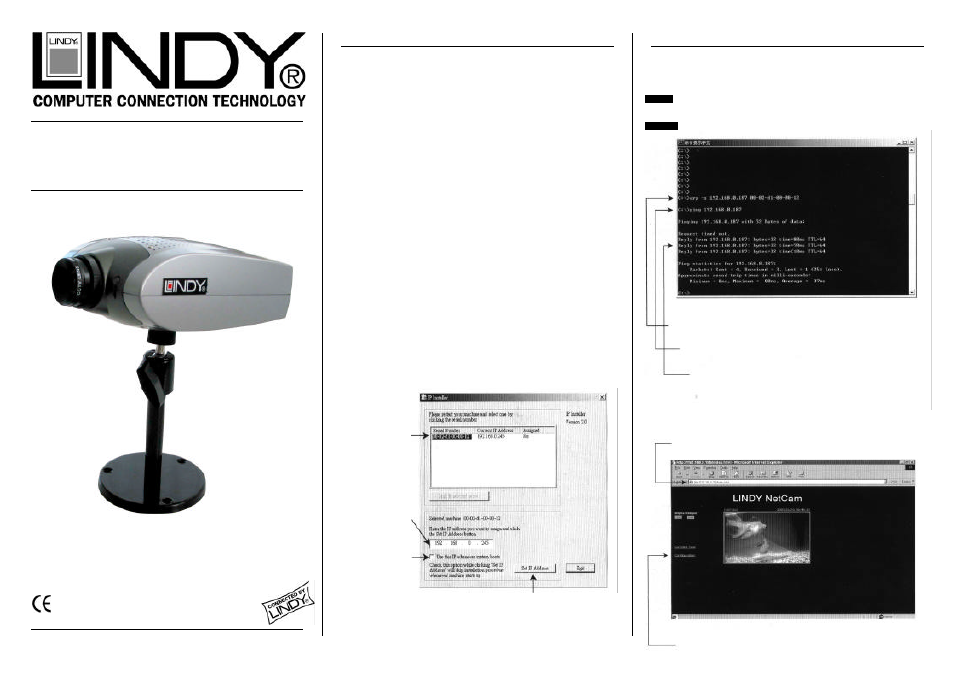

Setting the IP Address for the Camera
Please record the serial number from the label on the unit. This serial
number is the MAC address for the camera, for example
0002D11000520 = 00-02-D1-10-00-52. There are two ways to assign
an IP address to this MAC address.
1. By using the ‘Installer.exe’ software on the CD-ROM
Run the ‘Installer.exe’ first, then power on the unit.
2. By using the DOS command line under Windows
Start a DOS Window and type the following commands:
Syntax: arp –s <IP address> <MAC address>
ping <IP address>
Example:
Viewing the Camera via a Web browser
Click on the serial
number that
corresponds to your
camera
Assign a free IP address
If you want to fix the
IP address of the unit,
check the option ‘Use
this IP whenever the
system boots’
Click ‘Set IP Address’ to start the installation process
Type the arp command and press ‘enter’
Type the ping command and press ‘enter’
If you see the reply message, the unit has been installed
successfully
Type the IP address that you’ve assigned. The required password is the
serial number (mind upper and lower cases), the login name is ‘root’
Click on the ’Configuration’ button for further adjustments
