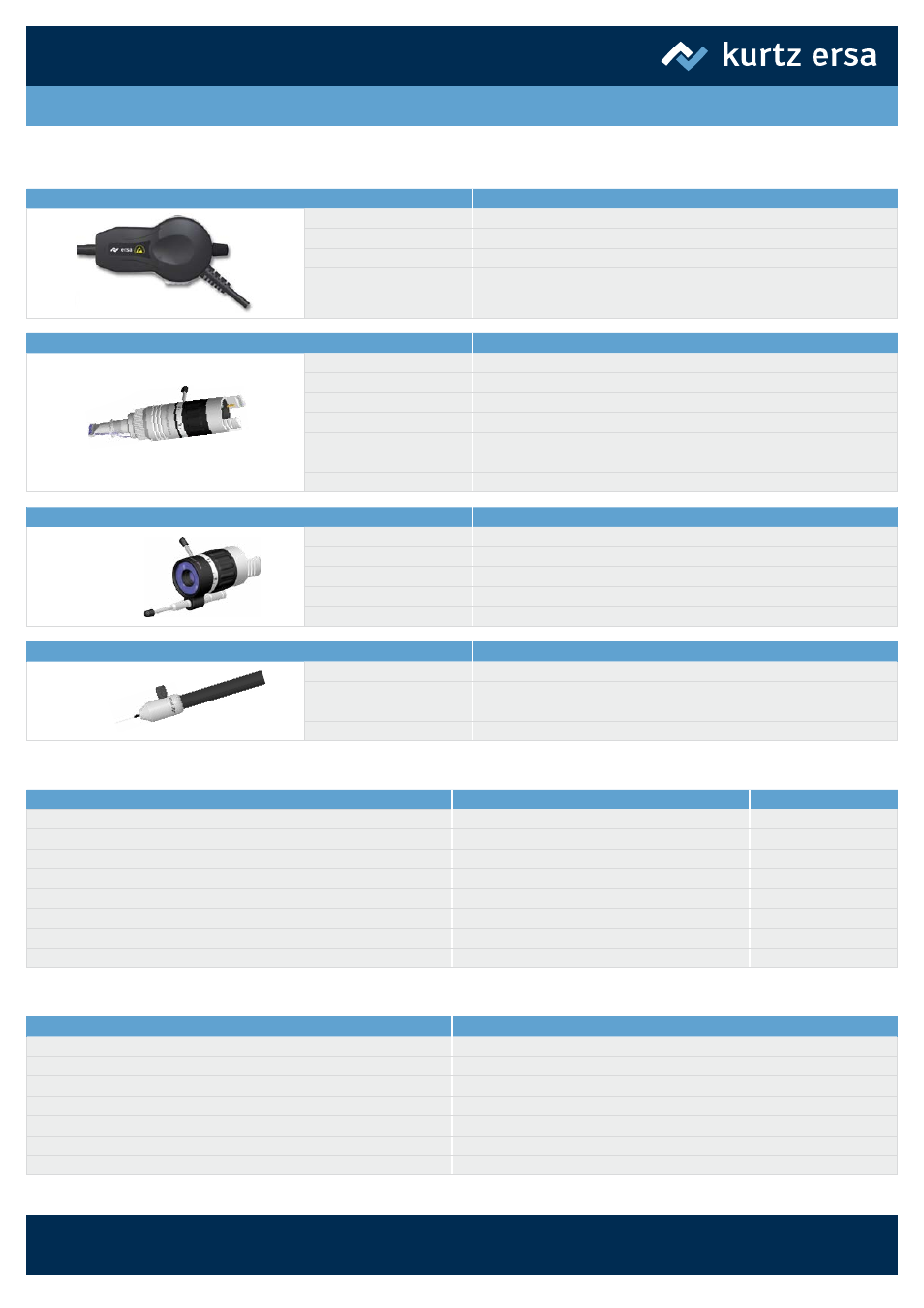

Technische Daten Ersa MOBILE SCOPE
Basiskameraeinheit
Beschreibung
Bildsensor
1/3“ N-MOS Solid State Farbbildsensor
Auflösung
1600 (H) x 1200 (V) Pixel (UXGA / 2.0 MP)
Schnittstelle
USB 2.0 (Universal-Serial-Bus-Anschluss)
Abmessungen
114 (L) x 36 (B) x 51 mm (H), ohne Zuleitung
BGA-Objektiv, 90°-Optik
Beschreibung
Bildvergrößerung
~ 180x – 15x auf 14” Monitor
Arbeitsabstand
~ 0,5 – 30 mm (Fokusbereich)
Bildfeld
~ 2,0 – 24 mm
Beleuchtung
Integrierte Kaltweiß-Leistungs-LED
Größe optischer Kopf
8,2 x 2,2 mm (B x T)
Aufstandsfläche
8,2 x 0,8 mm (B x T)
Abmessungen
83 (L) x 20 (Ø) mm (max. 83 x 30 mm inkl. Einstellpin)
80x Macro-Zoom-Objektiv mit LED
Beschreibung
Bildvergrößerung
~ 80x – 8x auf 14” Monitor
Arbeitsabstand
~ 5 – 200 mm
Bildfeld
~ 5 – 45 mm
Beleuchtung
Integrierte Kaltweiß-Leistungs-LED
Abmessungen
43 (L) x 19 (Ø) mm (85 x 35 mm max. inkl. Teleskopstütze)
LED Faserlicht
Beschreibung
Leuchtmittel
Kaltweiß-Leistungs-LED
Ausleuchtung
64 x Ø 0.250 mm Kunststoff-Lichtwellenleiter
Stromquelle
3 x AA (LR06) Batterien (Alkalibatterien empfohlen)
Größe
Ø 26 x 250 mm (max. 40 x 250 mm)
Vertriebskits Ersa MOBILE SCOPE
Inhalt
Bestellnummer
0VSSC060VK1
0VSSC060VK2
0VSSC060VK3
Basiskameraeinheit, digital
1x
1x
1x
BGA-Objektiv, 90°-Optik
1x
--
1x
80x Macro-Zoom-Objektiv mit LED
--
1x
1x
LED Faserlicht mit Dimmer
1x
--
1x
Ablage für Kameraeinheit
1x
--
1x
Betriebsanleitung
1x
1x
1x
ImageDoc Basic (Inspektionssoftware)
1x
1x
1x
Aluminiumkoffer für Ersa MOBILE SCOPE
--
--
1x
Zubehör Ersa MOBILE SCOPE
Produktname
Bestellnummer
Stativeinheit
0VSST060
Stativeinheit – Empfohlen für BGA Inspektion!
0VSST065
X-Y-Tisch
0VSXY060
Halter für LED Faserlicht
0VSLS030H
Fußtaster zur Bildauslösung - mit USB-Anschluss
0VSCA060FS
Ersa Optik-Reinigungsset
0VSLC100
Aluminiumkoffer für Ersa MOBILE SCOPE
3VP00703
0VSCA060
0VSSE060-90K
0VSSE060-MZ80
0VSLS030
Ersa MOBILE SCOPE
Mobiles optisches Inspektionssystem für die Elektronikfertigung
