www.bullard.com 7
W
arr
anty / A
ccessories and Replacement P
arts
Contact your local sales distributor or Bullard Europe regarding such testing.

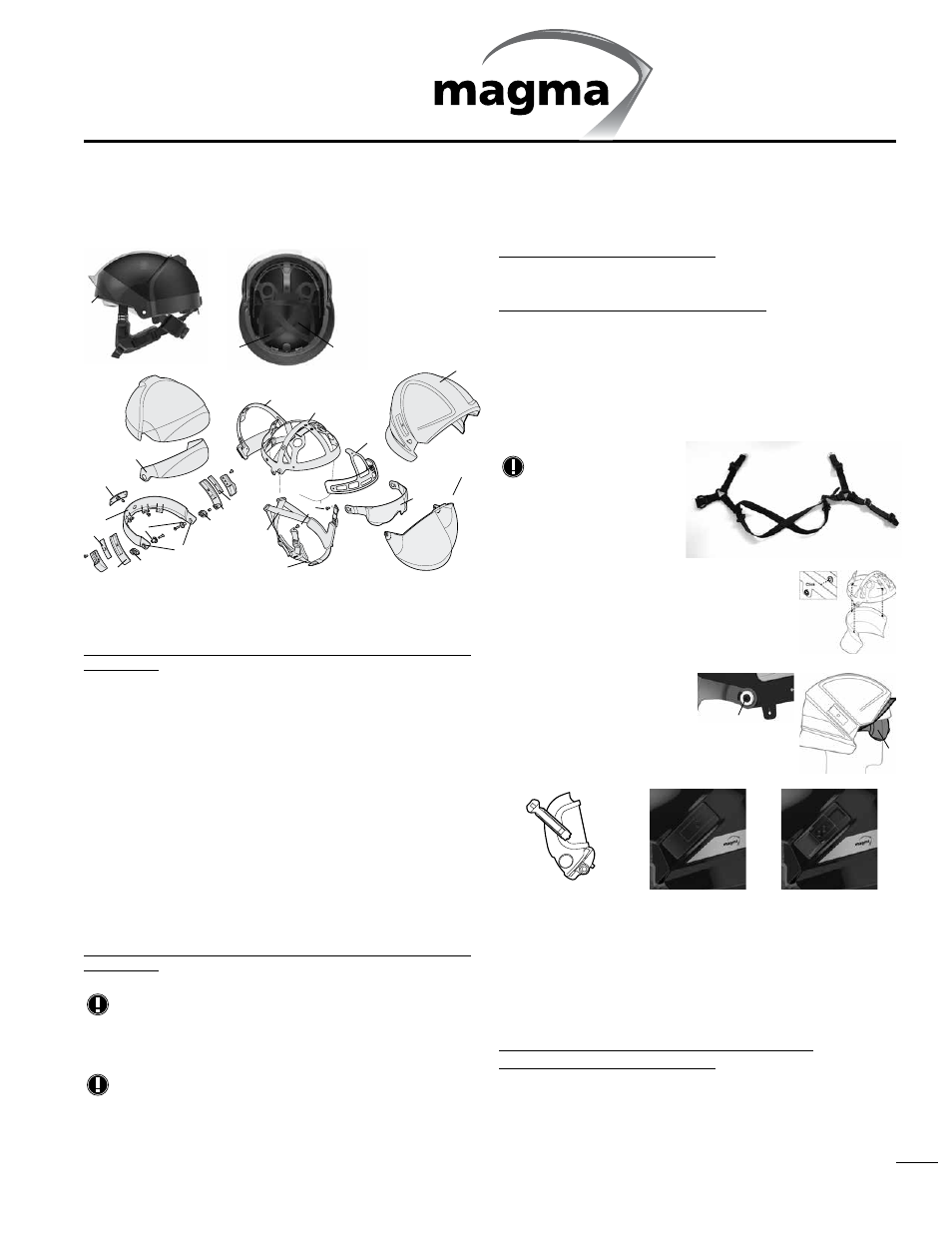

Assembly and Disassembly for Maintenance
Disassembly
Put the helmet upside down with the front side pointing to you.
Use the Bullard Helmet Support for maintenance, easy handling, and to prevent scratching the
helmet´s surface.
Unhook the crown straps A and chin strap B from the rear frame.
Disassemble front D and nape band E from the assembly ring and snap fasteners.
Remove the ratchet cover H from the nape band and the brow pad G from the front band.
Unscrew the rear axis I holding the Bullard Logo J.
Move the rear wings of the assembly ring out of the channel underneath the rear frame C.
Unscrew the sleeves K & L on both sides of the assembly ring and remove the eye protector M
if installed.
Uninstall the chin strap P by removing the two screws O to the right and to the left on the front
side.
Remove the assembly ring F.
Remove crown A and connection straps Q.
Take the inner liner R out and remove front S and rear frame C from the shock liner.
Remove visor T and washer U.
Unscrew assembly Y and cover plate W to the right and to the left of the outer shell.
Assembly
Use the Bullard Helmet Support for maintenance, easy handling, and to prevent scratching the
helmet´s surface.
Mount assembly V and cover plate W to the right and to the left of the outer shell X.
NOTE:
The assembly plates are marked R(right) and L(left) which corresponds to the way the
helmet is placed in front of you.
Mount the washer U to the right and to the left. Marking is done as before.
Put the visor T on the washer.
NOTE:
Do not remove the protective film before assembly is finished.
Assemble the inner liner R with the rear C and the front frame S and put it inside the shell.
Mount crown A and connection straps Q to the assembly ring F and put the completed ring inside
the helmet. Make sure it fits into the corresponding depressions of the inner liner.
Leave the crown straps unhooked for the time being.
Install the chin strap P with two screws to the right and to the left on the front sides,
male
part to the right, female part to the left side!
Leave the rear part of the chin strap unhooked for the time being.
Mount the eye protector M if existing.
Install the sleeves L on both sides of the assembly ring F.
Move the rear wings of the assembly ring F into the channel underneath the rear frame.
Install the rear axis with the Bullard Logo J.
Assemble the brow pad to the front band D & G and the ratchet cover to the nape band H.
Assemble front D and nape band E to the assembly ring F and fix the snap fasteners.
Hook in the rear part of the chin strap B to the rear frame C and mount the chin strap with
screws O to the front frame S.
NOTE:
Make sure you lay out the rear straps
flat and move the hangers in the
same way.
Hook in the crown straps to the rear frame.
Assembly Accessories
Ear Neck Protector
Snap in the Ear Neck Protector first to the right and to the left front
snap fastener, then to the rear side.
Eye Protector
Release one sleeve and mount the corresponding side of the eye
protector under the sleeve.
Repeat on the other side.
Mask Adapter
Remove the cover plate and replace with the
mask adaption plate.
The mask adaption plate offers 3 different positions. Make sure you
pick the right one for proper surface pressure of your specific mask.
Warranty
Bullard provides a warranty for a 24 month period from the date of purchase in respect to
manufacturing and material faults. The helmet will be repaired, replaced or credited at the
discretion of Bullard. The helmet must be sent to us carriage free as a precondition for claiming
warranty; it must not be modified and the damage must not have resulted from improper use.
Bullard is not liable for damage, failure in use or other indirect, accidental, consequential or
special costs, expenses or damages which could arise for the buyer, even if Bullard has been
informed of the possibility of such damage.
Bullard will not be held liable for damage that occurs during hot fire training.
Use Bullard Nomex helmet covers for those helmets.
FIRE HELMET USER
INFORMATION GUIDE
A
B
A
B
R
A Q
C
I+J
S
W
V
U L
K
V
W
B
P
E+H
F
D+G
O
M
T
U
X
