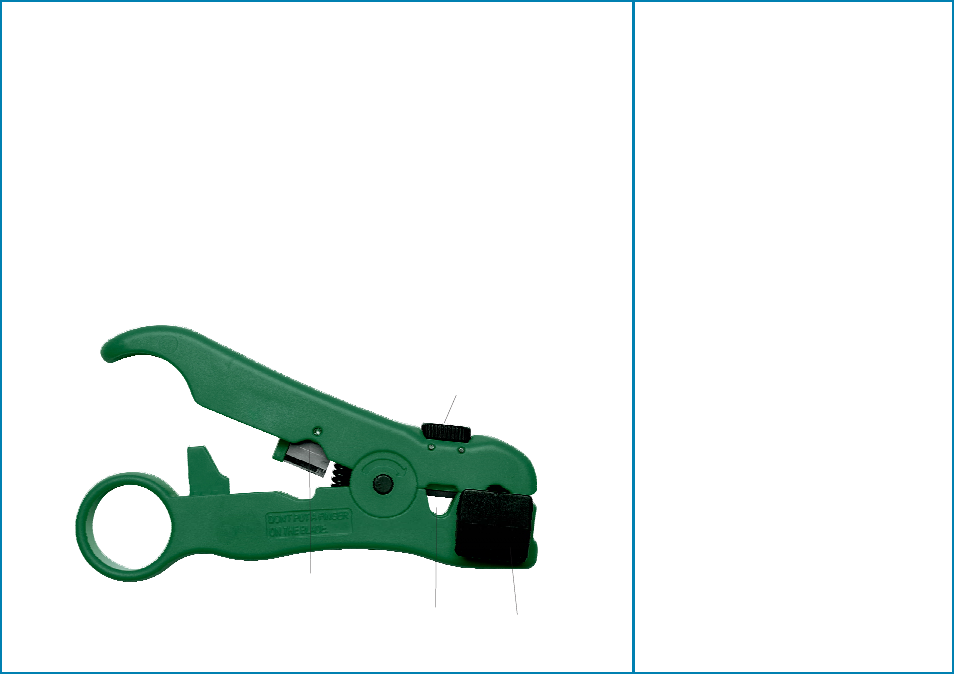

Product description:
The stripping tool BWZ 5-02 has been designed especially for Axing cable types SKB 88/89/395/92/93, but can also be
used with other cables that have a dielectric diameter of 4.7 ± 1 mm.
It is provided with a reinsertable stripping block with fixed stripping dimensions.
The stripping dimension 8/13 mm is intended for all AXING premium line antenna sockets, the stripping dimension 7/6 mm for
compression connectors CFS 93-xx/97-xx.
The stripping of the outer sheath, shielding and dielectric is done in one step, and the tool can be used by both left- and right-
handed people.
The following stripping and cutting blades are available:
¬
insertable stripping block: 8/13 mm AXING premium line antenna sockets
7/6 mm AXING compression connector
­
adjustable stripping blades: Ø 2.7 – 6.7 mm
®
cutting blades for coaxial cables: Ø 0 – 8 mm
Work steps
¬
Use of the stripping block:
To strip coaxial cables of stripping dimension 8/13 mm or 7/6
mm, the stripping block must be plugged in such that the
desired stripping dimension points upwards.
Open stripper, insert the coaxial cable in the curvature of the
block all the way and then close it again. While holding the
cable with the hand, fix the cable on the tool with the thumb
and rotate the stripper no more than 2-3 times by 360°.
Then open the stripper and remove the cable. Next remove
the cut outer sheath and the dielelectric from the cable.
­
Use of the stripping blade:
The stripping blade is used for stripping 2.7-6.7 mm in
diameter to any desired length. The stripping blade depth is
set using the upper thumbwheel.
Mark the required stripping dimension on the cable and set
the stripping blade to the diameter of the cable. Then open the
stripper, place the marked cable under the blade and close the
stripper.
While holding the cable with the hand, fix the cable on the tool
with the thumb and rotate the stripper no more than 2-3 times
by 360°.
Then open the stripper and remove the cable. Next remove
the cut outer sheath and the dielelectric from the cable.
®
Use of the cutting blade:
The cutting blade is designed for cutting coaxial cables up to a
diameter of 8 mm maximum.
thumbwheel
­
®
¬
