Special functions are assigned to the display lighting:
Slow flashing of the display illumination means no DMX signal is connected.
If the Wireless TRX receives a DMX-signal the display illumination dims out.

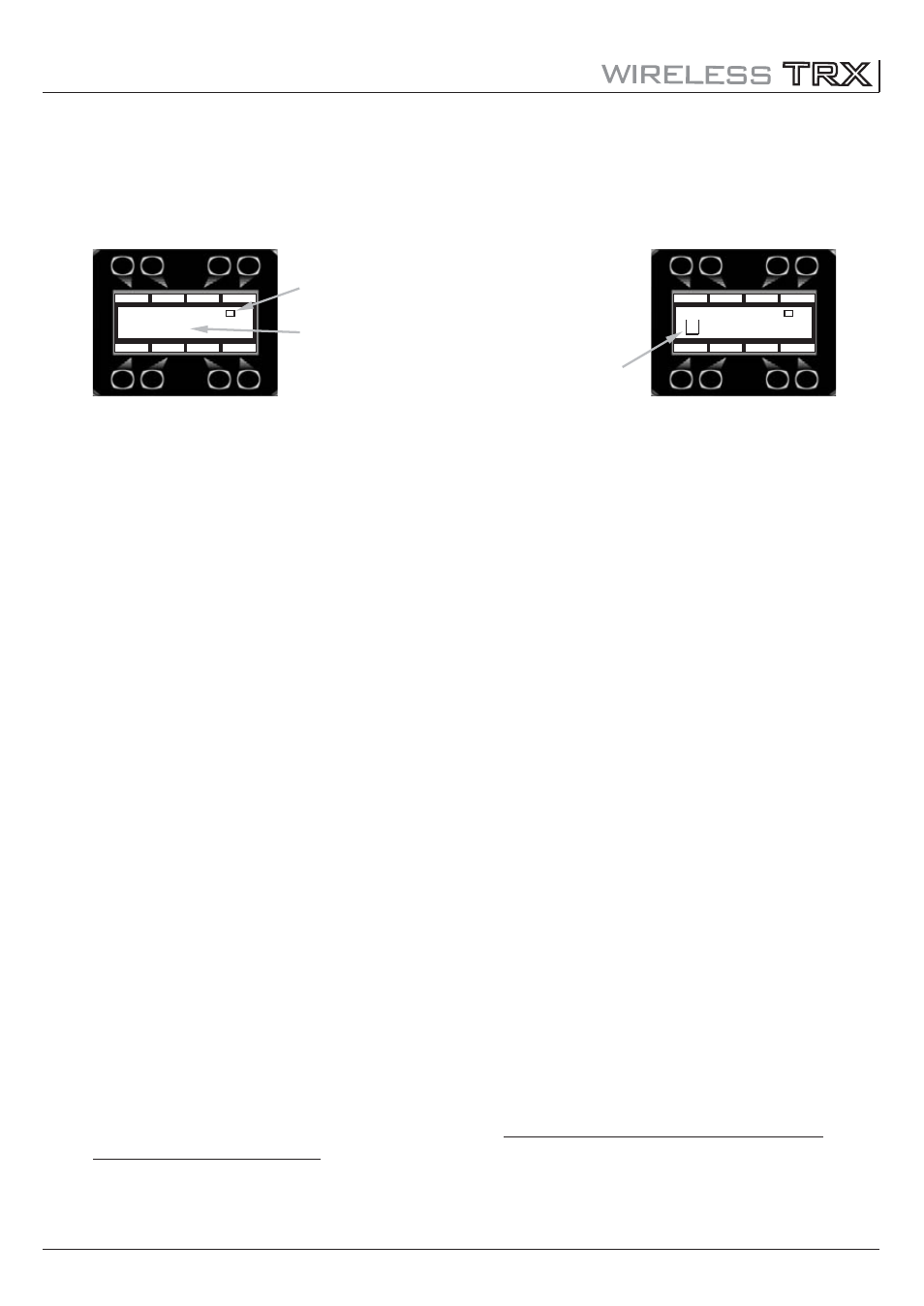

ESC ENTER DOWN UP
TRX ACCESS POINT
21
LOGIN HOP SCAN
ESC ENTER DOWN UP
TRX CLIENT
LOGIN HOP SCAN
DMX transmission
(running dot during transmission)
channel
(choice of 61 channels in 2,4 Ghz band)
Field intensity level
Operating mode selection
Press ENTER in the main menu, select with Down and UP following modes: „TRX
ACCESS POINT“, „TRX CLIENT“ or „TRX INACTIVE“.
4. Transmission mode
AP CHANNEL
AP ANTENNA GAIN
AP ID
Select the mode „TRX ACCESS POINT“, confirm it with ENTER.
Configure the Wireless TRX in the following steps with your personal settings:
, offers 61 different transmission channels. To avoid interferences
between other Wireless TRX or other disturbance sources make sure that there is
one channel space between the next transmitter source.
The function „SCAN“ support you as it displaying other transmission sources.
The transmission channel can be changed during operation without loosing the
connection to the receiving unit. The receiver will automatically log itself into the
Wireless TRX.
, the Wireless TRX is factory-provided equipped with a
with 2 dBI antenna gain. Therefore the 2 dBI value is factory set and shown
in the menu. If a different antenna with different antenna gain is used the dBI value
has to be adjusted accordingly. A lower value setting could raise the transmission
power above the limit which is legal in your country. Please check with the local
authorities. The radio transmission frequency range of the Wireless TRX is 2,4 Ghz.
The quality of the the transmission signal is best, when nothing is blocking the
transmission path. To avoid interferences make sure that there is intervisibility from
transmitter to receiver.
, insert a maximum 16 digit name for your transmitter (e.g. company name).
This name will be displayed in the receiving unit (A12/A8 JBLED A4/A7, Wireless
TRX) after it has been login. The menu is locked to avoid an accidental change of the
configuration. To unlock press ESC (keep it down) and press ENTER in addition.
dipol
antenna
, insert a maximum 16 digit password.
. The logged-in receiving unit will store the passwort and
check during a data reception the identity of the transmitter. The menu is locked to
avoid an accidental change of the configuration. To unlock press ESC (keep it down)
and press ENTER in addition.
AP KEY This code is important for the unique
identity of your transmitter
