49

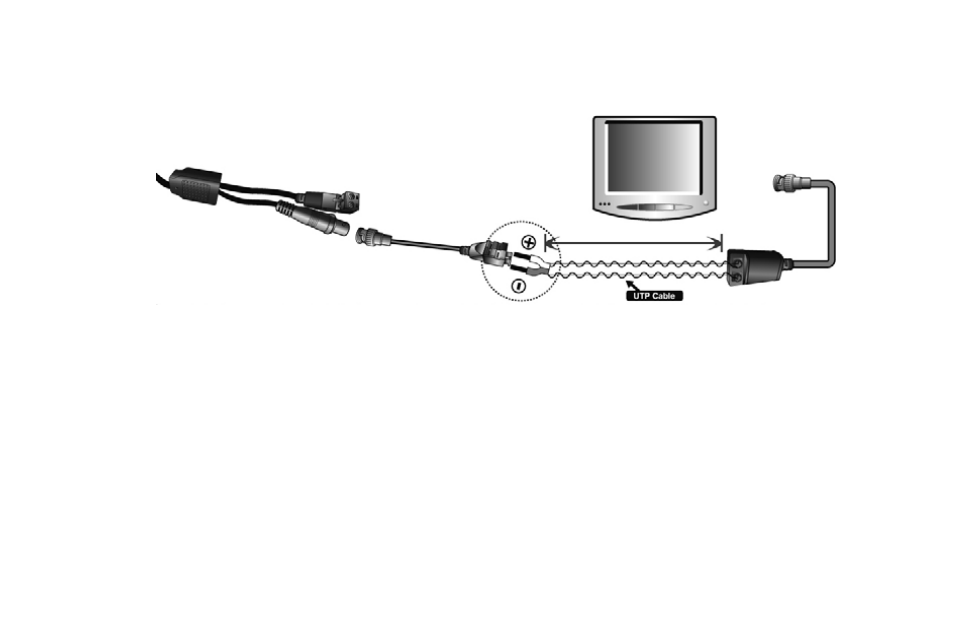

Connecting to Monitor
Monitor
UTP receiver
• Connect UTP (Unshielded Twisted Pair) wire to the UTP output of the camera directly.
UTP transmitter is included in the camera, therefore additional UTP transmitter is not necessary.
• UTP receiver is necessary to connect UTP wire to monitor or DVR.
• When connecting UTP wire, make sure the polarity of the video signal is correct.
• Use UTP wire „CAT5 4AWG” to have the best transmission quality.
• The twisted-pair output cannot be used at the same time as the Composite Video output.
