11 GB
Assembly General safety advice for electrical power tools / Assembly
Materials:
Sheet and tube up to approx. 3 mm made of
aluminium, copper
Use:
· Cutting and trimming to length of tube and sheet
(see Figs. J)

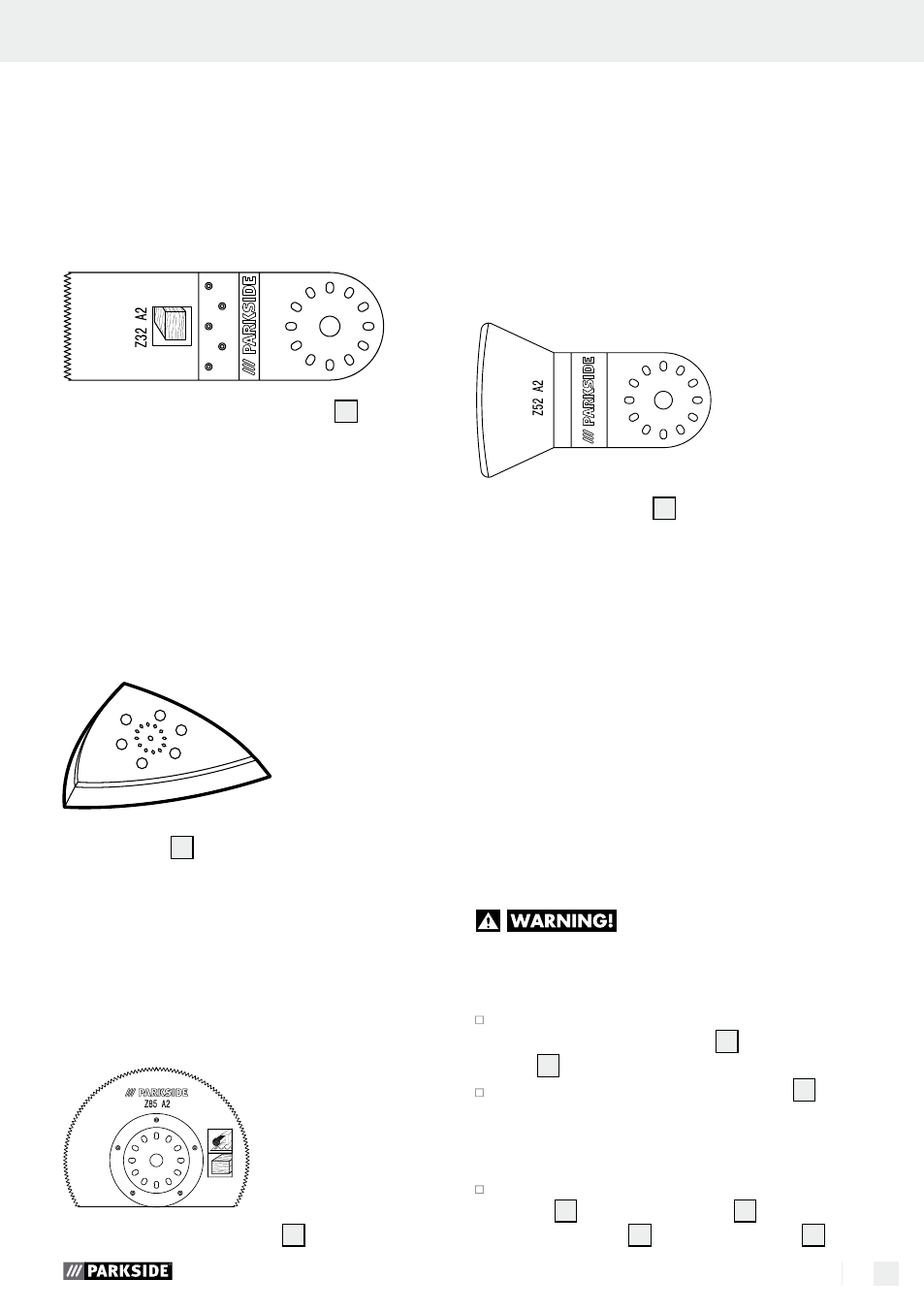

Plunge saw blade (32 mm) Z32 A2 6
Materials:
Wood, plastic, plasterboard and other soft materials
Use:
· Cutting and plunge sawing
· Close to the edge sawing, even in difficult to
access areas
Example: Sawing of recesses in lightweight walls.
(see Figs. B and D)
Backing plate 7
Materials:
Wood (sanding sheets included), paint*, stone*
*depending on the sanding sheet
Use:
· Sanding at edges and in difficult to access areas
(see Figs. G and H)
Segment saw blade Z85 A2 8
Material:
Wood, metal
Use:
· Cutting and plunge sawing
· Close to the edge sawing, even in difficult to
access areas
Example: Laying parquet and other floor coverings,
including plunge sawing. (see Figs. C, E and F)
Scraping knife Z52 A2 9
Materials: Mortar / concrete residues, tile / carpet
adhesives, paint / silicone residues
Use:
· Removal of material residues, for example tile
adhesive when replacing damaged tiles
(see Fig. I)
Q Changing the attached tool
NoTE: If you would like to use the vacuum dust
extraction device, you must connect it before attach-
ing or changing the attachment (see section on
“Connecting a vacuum dust extraction device”).
DANGER oF INJURY! Pull
the mains plug out of the mains socket
before you carry out any task on the
electrical power tool.
Remove any tool already inserted. To do this,
release the clamping screw
10 using the Allen
key 11 and take off the tool.
Place the tool (e.g. plunge saw blade 6 ) on
the tool mount.
NoTE: You can place the tool in any of the
possible positions on the tool mount.
Fasten the tool in place with the clamping
screw
10 and clamping plate 4 . Tighten the
clamping screw 10 using the Allen key 11 .
