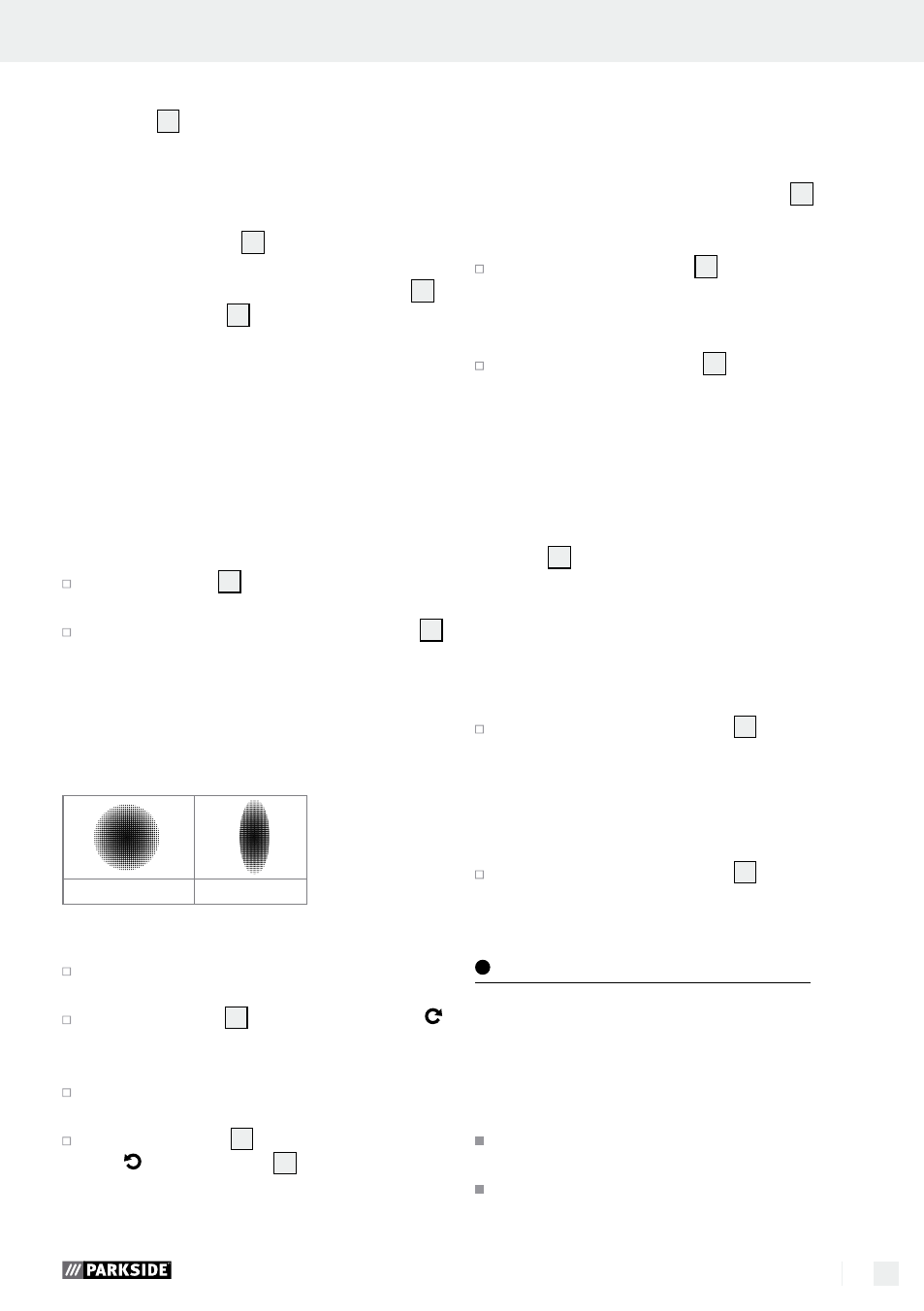

9 GB/CY
Initial use / Maintenance and Cleaning
- When working with the device you should open
the vent 1 .
- When diluting the material, make sure that the
spraying material and the dilution are suitable
for one another. If an incorrect dilution is used,
lumps may form and clog the gun as a result.
- Screw the flow cup 3 clockwise firmly on to
the gun.
- Fill the spraying material into the flow cup 3
and screw the lid 2 on tight.
- Always hold the paint spray gun at the same
distance from the object. The ideal spraying
distance is approximately 15 cm.
- Determine the appropriate settings in each
case by experimenting.
- Do not turn the device on / off when it is over the
spraying surface, but start and end the spraying
process approximately 10 cm outside of the
spraying area.
Press the trigger 8 to start spraying and keep
it held down.
In order to stop spraying, release the trigger 8
again.
Q Adjusting the paint jet
The device has the settings round and broad jet.
Round jet Broad jet
Adjusting the round jet:
Use the round jet, for example, for small surfaces,
corners and edges.
Turn the regulator 5 in a clockwise direction .
Adjusting the broad jet:
Use the broad jet vertically and horizontally
over larger areas.
Turn the regulator 5 in an anticlockwise direc-
tion . The nozzle head 9 can be continuously
adjusted vertically and horizontally by turning
to the desired position.
Q Regulating the
quantity of paint
Note: The front locking screw is used to limit the
adjustment range of the stroke stop screw
4 .
Increasing the quantity of paint:
Turn the stroke stop screw 4 in an anticlockwise
direction.
Reducing the quantity of paint:
Turn the stroke stop screw 4 in a clockwise
direction.
Q Regulating the quantity of air
Note: It is advisable to start with the maximum
amount of air. In order to do this, open the air volume
regulator
7 as described below under “Increas-
ing the air quantity” up to the maximum setting.
Increasing the air quantity:
Note: Increasing the amount of air is generally
advisable when the degree of atomization is too
coarse.
Turn the air quantity regulator 7 in an anti-
clockwise direction.
Reducing the air quantity:
Note: Reducing the amount of air is generally
advisable when the paint spray is too strong.
Turn the air quantity regulator 7 in a clock-
wise direction.
Maintenance and Cleaning
Note: Thorough cleaning after each use is very
important for safety and operation. Otherwise, for
example, the needle will become clogged and the
proper functioning of the appliance can no longer
be guaranteed.
Wear suitable protective gloves when carrying
out cleaning work.
Do not use any hydrocarbon-containing halogen
solvents, such as trichloromethyl, ethyl chloride,
etc., as they undergo chemical reactions with
