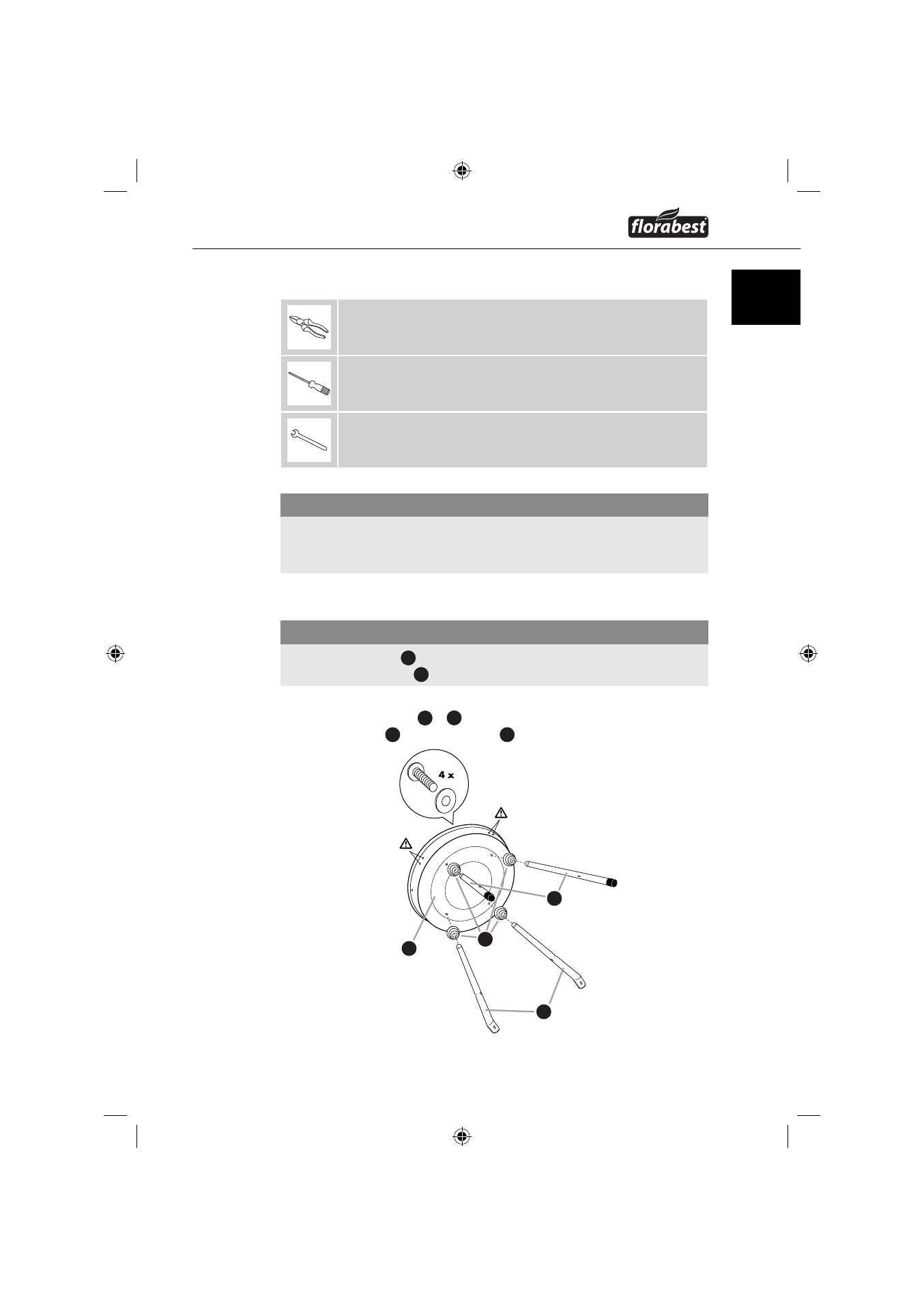

Assembly
FRG 45 A1
GB
CY
Required assembly material
Pliers
Philips head screwdriver
Open-jawed spanner 8 mm / 13 mm
IMPORTANT
To avoid possible injury, the screw heads should always face outwards. ►
First tighten all screw connections down when the assembly is complete,
this will help avoid undesirable material tensions.
Step 1
IMPORTANT
The two long legs ► 5 must be assembled on the side where the double
holes in the fi rebowl 11 are located.
Assemble the 4 legs ( ♦ 5 + 9 ), each with 1 screw M6 x 30, a washer Ø 6
and a leg cap 10 , onto the fi rebowl 11 .
5
9
10
11
