Assembly

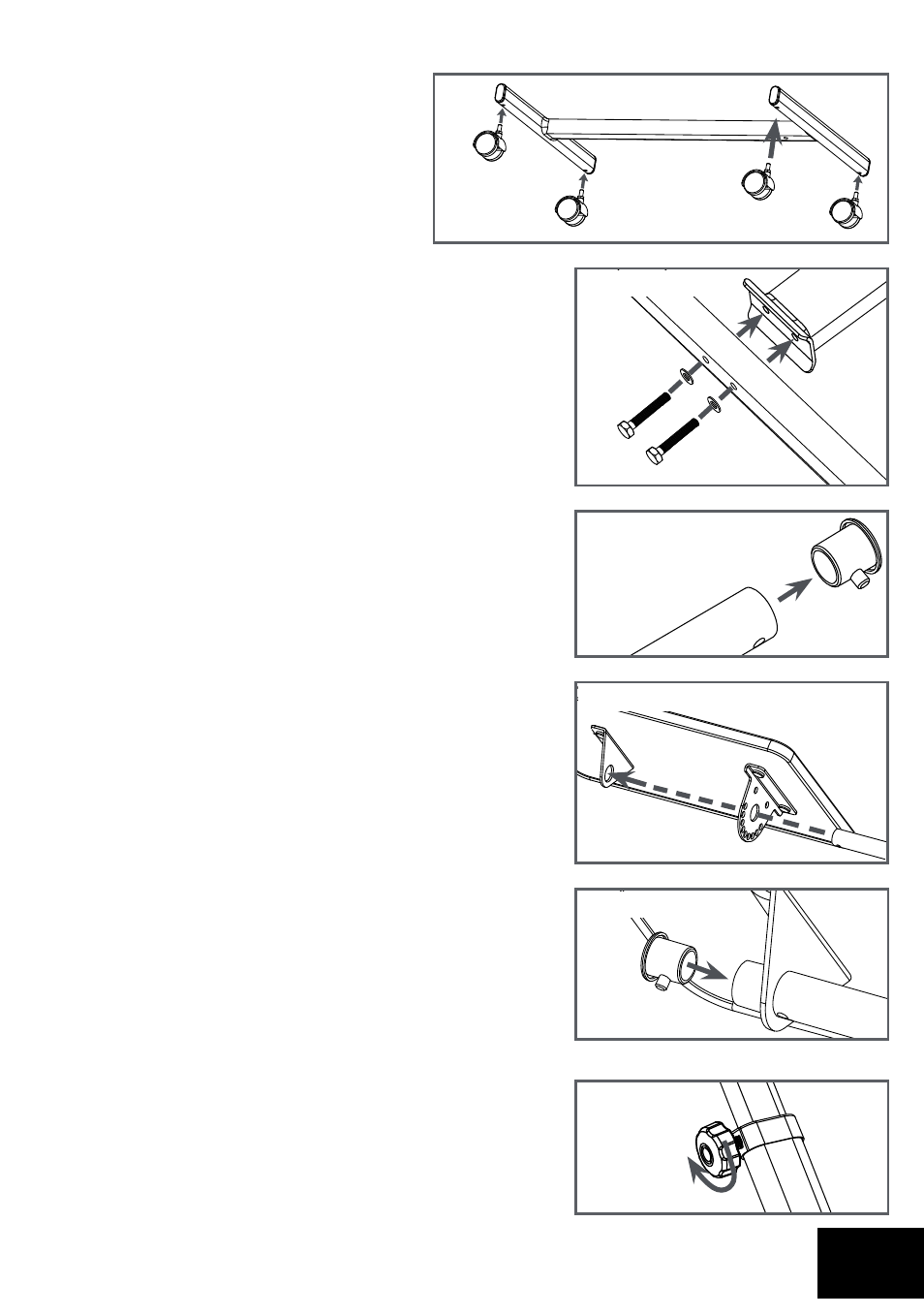

Step 1:
Using the screw wrench, attach the rollers
to the H-shaped sub-frame (Fig.1).
Step 2:
Attach the table frame to the H-shaped sub-frame.
Use the 2 washers in conjunction with the screws
which have also been included. Attach the central
pole as shown in Fig. 2.
Step 3:
Loosen the black plastic cap from the end of the
L-shaped table frame. Press in the metal pin and
simultaneously remove the plastic cap (Fig. 3).
Step 4:
Push the table frame through the eyelets which are
fastened to the tabletop. At the same time, the ring
fastened to the tabletop for inclination setting must be
connected to the central pole (Fig. 4).
Step 5:
After you have pushed the table frame through both
eyelets, replace the plastic cap on the end of the
table frame (Fig. 5).
Adjusting the table height
Loosen the screws with the plastic grip and set the
table to the desired height. Then retighten the screws
(Fig. 6).
Fig. 3
Fig. 2
Fig. 1
Fig. 4
Fig. 5
Fig. 6
