Inserting/replacing the batteries
Ensure that the camera is switched off. The battery compartment [8] is located
at the back of the device.
Remove the battery compartment cover by pressing the release mechanism and
lifting the cover upwards. The ribbon in the battery compartment is intended to
facilitate the subsequent removal of the batteries. When inserting the batteries,
make sure that this ribbon runs completely under all 4 batteries and that you
can still access the end of the ribbon after the batteries have been inserted.

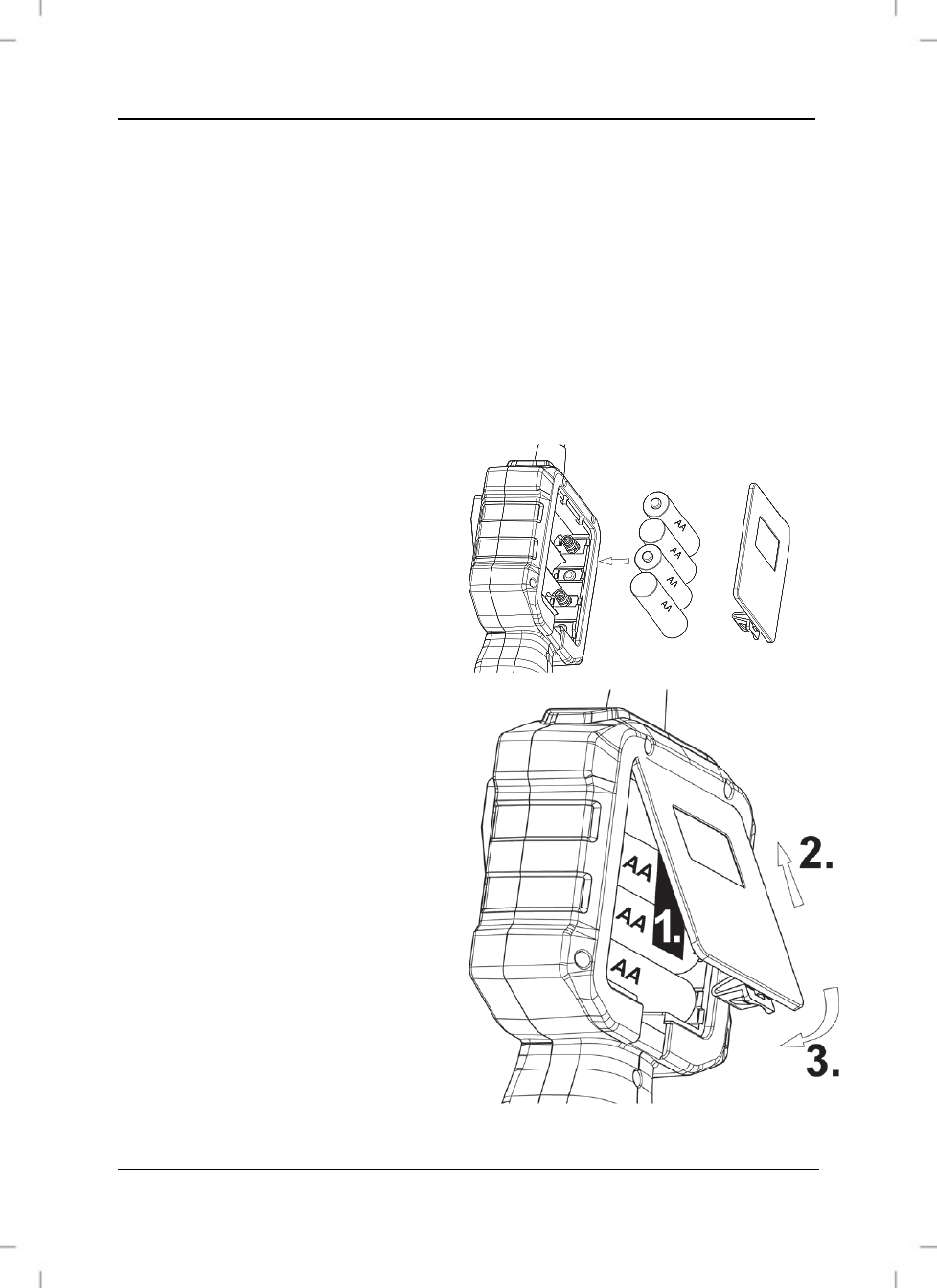

Insert 4 x 1.5V AA / LR6 batteries
with the correct polarity in the
battery compartment. Please note
the markings in the battery
compartment and on the batteries.
1. The end of the ribbon should lie
smoothly between the batteries and
battery compartment cover.
2. Close the battery compartment
by first inserting the two plastic tabs
of the battery compartment cover
into the slots provided for this
purpose on the housing of the
endoscope camera.
3. Then press it downwards until it
audibly engages.
