Take note of the following illustrations:
Fig. 1
Fig. 2

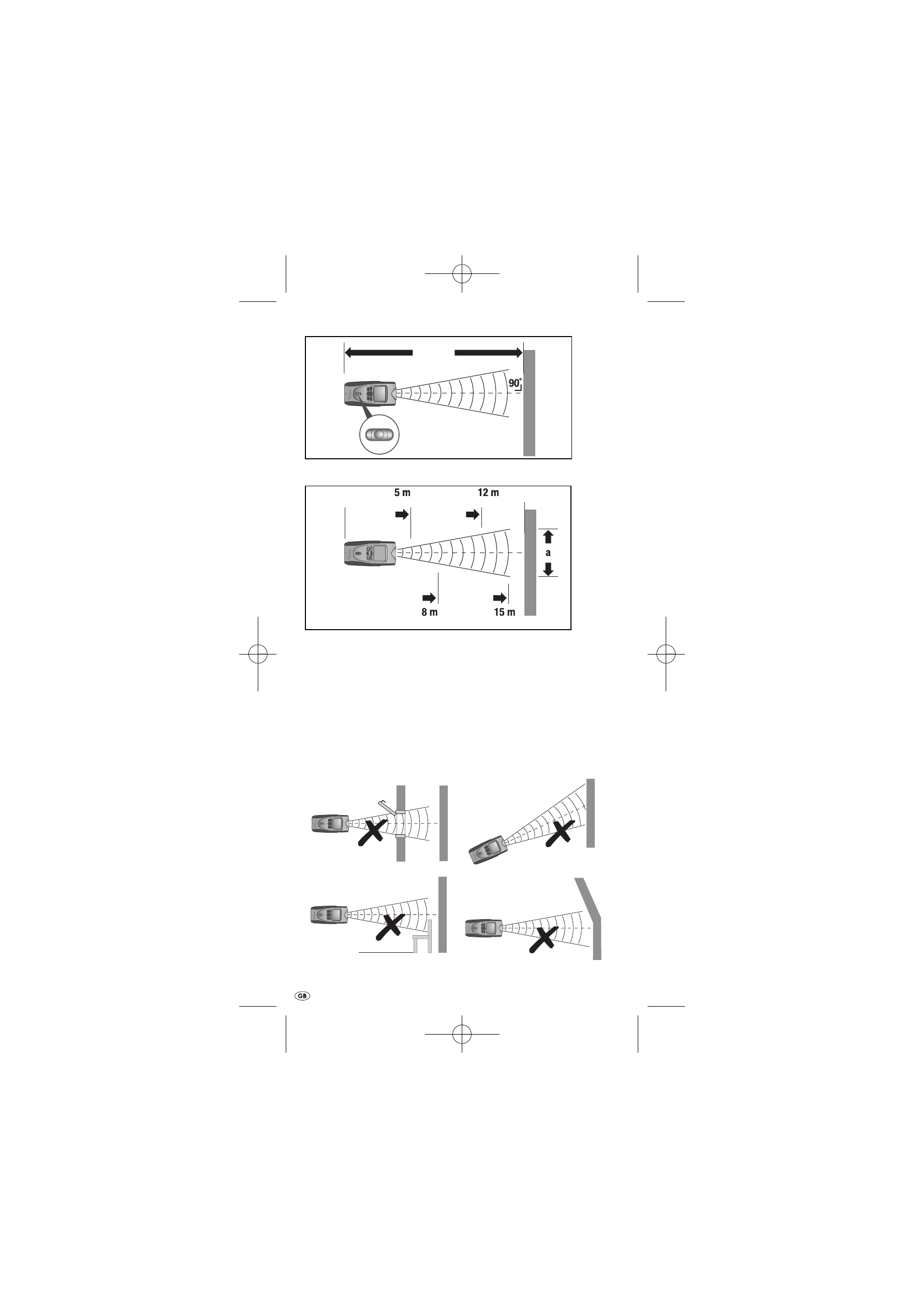

The further you are from the wall, the wider is the area (a) that
the Distance Meter must measure by ultrasound (Fig. 2). There-
fore, take care to ensure that the Distance Meter is always
directed at a right angle towards a level surface (Fig. 1 and 3)
.
Ensure that there are no objects positioned within the measure-
ment area.
False!
Fig. 3
ON/OFF
FT/M
MODE
RECALL
READ
ON/OFF
FT/M
MODE
RECALL
READ
ON/O FF
FT/ M
M OD E
RECALL
REA
D
ON/OFF
FT/M
MODE
RECALL
READ
a
=
ca. 1,5 m a
=
ca. 3,6 m
a
=
ca. 2,4 m a
=
ca. 4,5 m
MIN. 0,6 m
Max. 16 m
ON/OFF
FT/M
MODE
RECALL
READ
