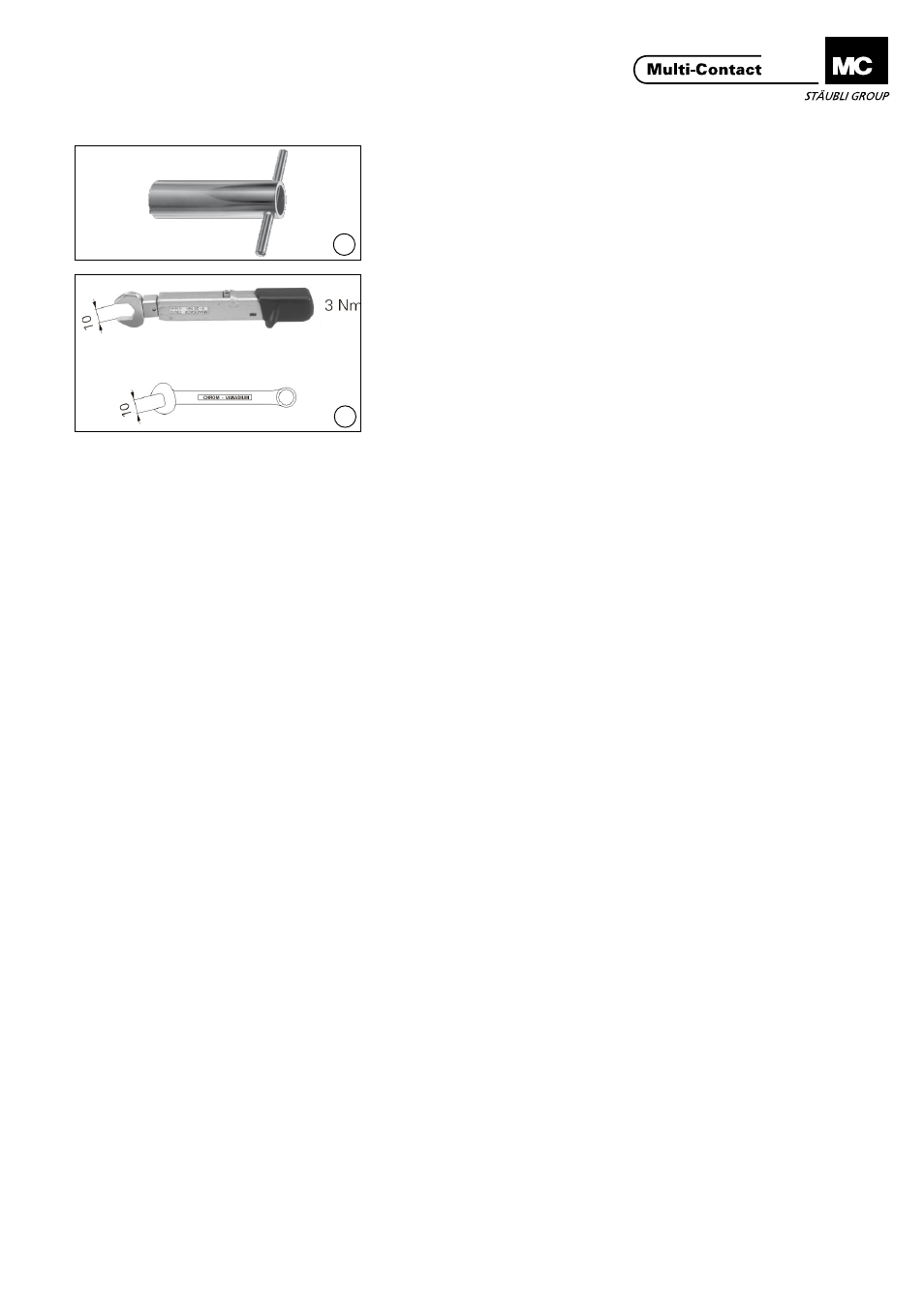

Erforderliches Werkzeug
Tools required
(ill. 1)
Montageschlüssel SS6 für die Mutter
M18x1, Bestell Nr. 14.5008.
(ill. 1)
Socket spanner SS6 for the nut
M18x1, order No. 14.5008.
(ill. 2)
Drehmomentschlüssel SW10, 3 Nm
Für Mutter M6:
Gabelschlüssel SW10 für Mutter M6.
(ill. 2)
Torque spanner A/F10, 3 Nm
For nut M6:
Open-end spanner A/F10 for nut M6.
Montage
Assembly
(ill. 3)
Fronttafel bohren gemäss Bohrplan
für POAG-ID6�
(ill. 3)
Drill front panel according to drilling
plan for POAG-ID6.
(ill. 4)
Buchsenkörper von vorne in die Fron-
tafel stecken und dabei die Nocken an
der Buchse mit den Aussparungen in
der Fronttafel ausrichten.
Mutter M18x1 von Hand festschrau-
ben und mit dem Montageschlüssel
SS6 anziehen (max. 3 Nm).
(ill. 4)
Insert socket into front panel, making
sure that the lugs on the socket mate
with the opening slots.
Screw on the nut M18x1 and thighten
with the help of the socket spanner
SS6 (max. 3 Nm).
(ill. 5)
■
U-Scheibe
2 montieren�
■
Kabelschuh
D mit angeschlossener
Leitung auf das Gewinde schieben�
■
U-Scheibe
4, Federscheibe 5 und
Mutter
6 montieren�
■
Mutter
6 mit Drehmomentschlüs-
sel SW10 anziehen und mit Gabel-
schlüssel SW10 und Mutter
1 kon-
tern (3 Nm).
(ill. 5)
■
Screw on the washer
2�
■
Slip cable lug
D with preassembled
cable onto the thread�
■
Install nut
6, washer 4 and lock
washer
5
■
Tighten nut
6 with the torque span-
ner 10 mm A/F (3 Nm) using nut
1
and the open-end spanner 10 mm
A/F to counter.
Mutter M18
Nut 18
