Advanced Contact Technology
www.multi-contact.com
3 / 4
1

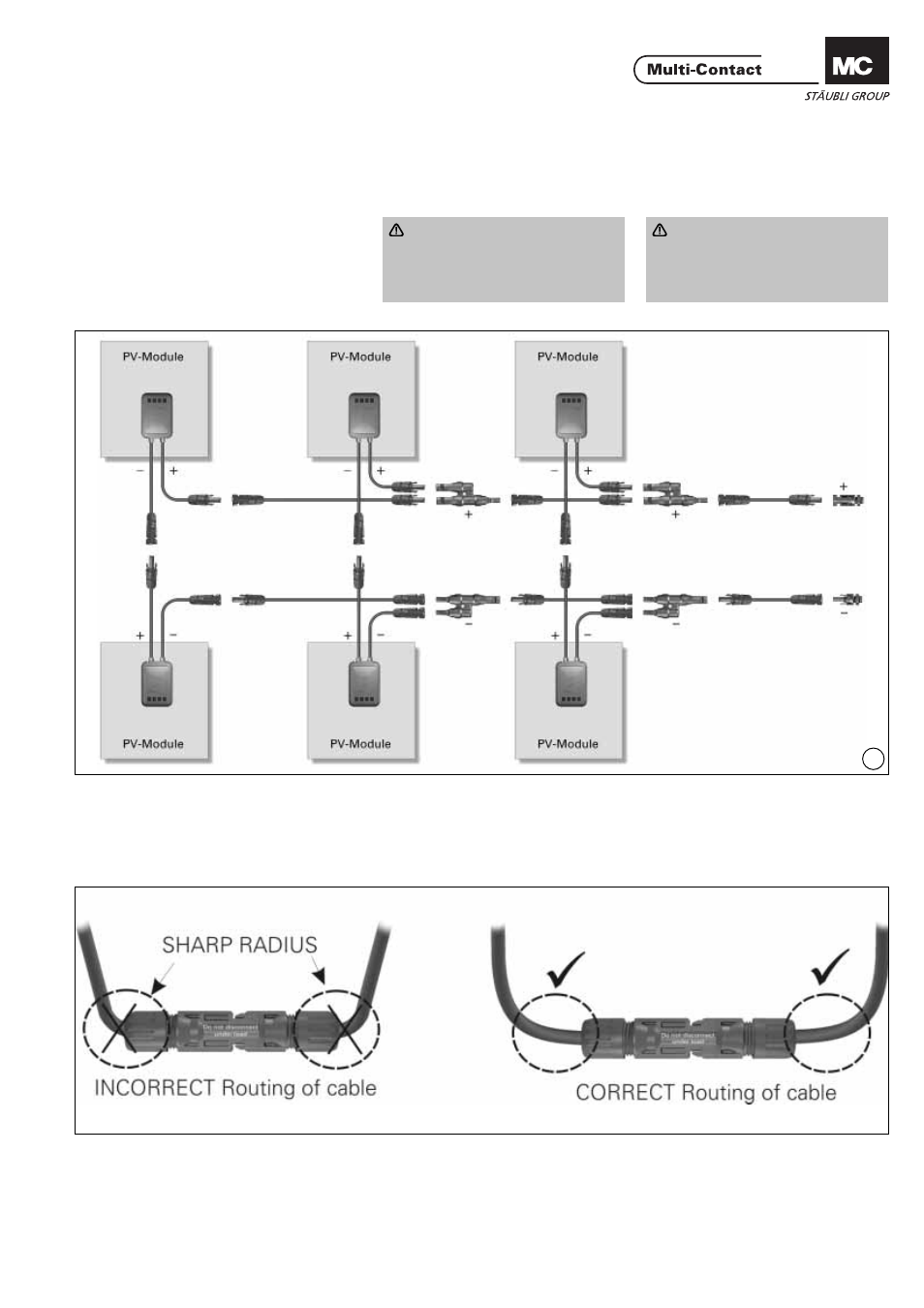

Beispiel einer Parallelschal-
tung mit Abzweigsteckver-
bindern
Example of parallel connec-
tions with branch connectors
(ill. 1)
Achtung:
Achten Sie bei der Installation
von parallel geschalteten Modu-
len auf die richtige Verschaltung
der Strings!
(ill. 1)
Attention:
By the installation of modu-
les connected in parallel, it is
important to observe the correct
interconnection of the strings!
Leitungsführung
Cable routing
Beachten Sie die Spezifi kationen des
Leitungsherstellers betreffend Biege-
radius.
Refer to cable manufactures specifi ca-
tion for minimum bending radius.
