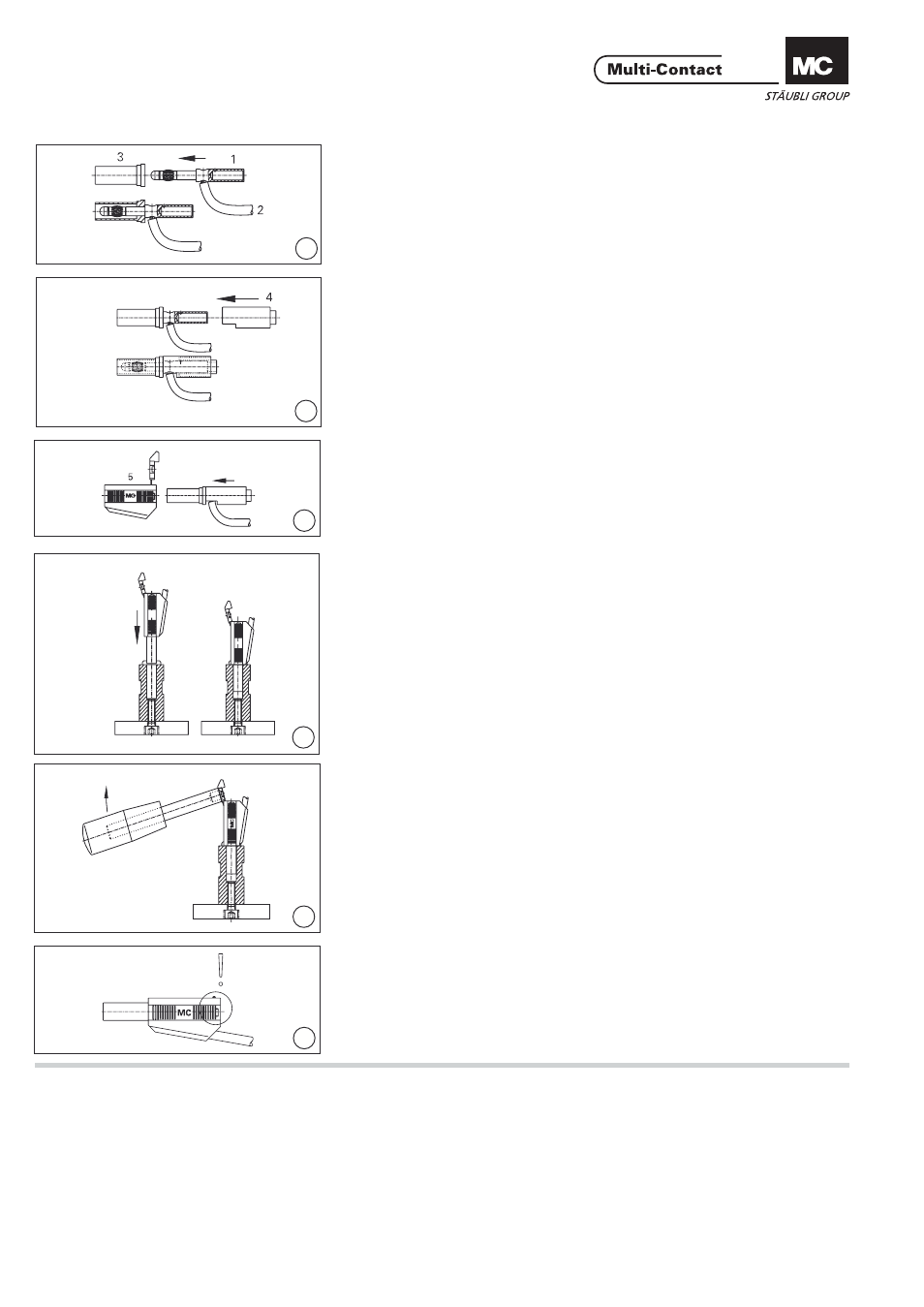

(ill. 7)
Stecker 1 (mit angelöteter Leitung
2) in Isolierteil 3 bis zum Anschlag
einstecken.
(ill. 7)
Fully insert plug 1 (together with sol-
dered cable 2) into the insulator 3.
(ill. 8)
Isolierteil 4 mit Schlitz zur Leitung
ausrichten und bis zum Anschlag
einstecken.
(ill. 8)
Slide insulator 4 over plug to end
position paying attention to the cable
opening alignement.
(ill. 9)
Isolierteil 5 von vorne über die Kombi-
nation stossen bis zum Anschlag.
(ill. 9)
Fully insert into insulator 5.
(ill. 10)
Isolierteile mit Stecker in Hilfswerk-
zeug B-SI einführen.
(ill. 10)
Insert insulators with plug into auxil-
iary tool B-SI.
(ill. 11)
Hilfswerkzeug A-SI in die Verschluss-
klappe einführen und Isolierteil-Ver-
schluss bis zum Einrasten eindrücken.
(ill. 11)
Insert auxiliary tool A-SI into hinged
fastening cap and press and snap the
fastening cap into position.
(ill. 12)
Vollständige Einrastung optisch kont-
rollieren.
(ill. 12)
Visually check the snap-in parts for
correct assembly.
