Multi-Contact MA130 Benutzerhandbuch
Seite 4
Advanced Contact Technology
9
10
11
12
13
Hersteller/Producer:
Multi-Contact AG
Stockbrunnenrain 8
CH – 4123 Allschwil
Tel.
+41/61/306 55 55
Fax
+41/61/306 55 56
www.multi-contact.com
© b
y Multi-Contact A
G, Switz
erland – MA130 – 03.2013, Inde
x f
, Global Communications – Änderungen v
orbehalten / Subject to alterations

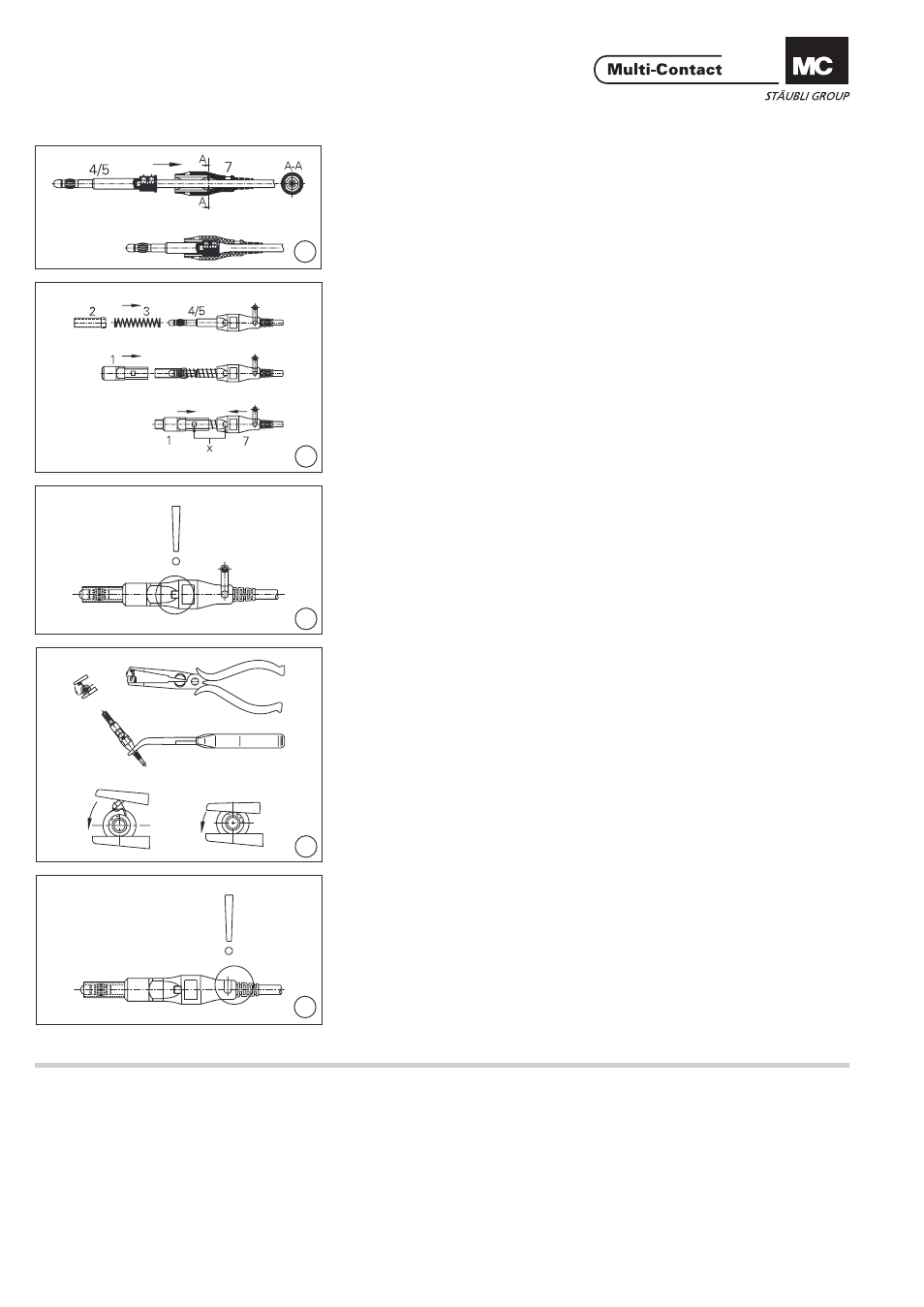

Montage
Assembly
(ill. 9)
Stecker 4 bzw. 5 in Isolationsteil 7 bis
zum Anschlag einführen und dabei die
geraden Flächen des Steckers mit den
geraden Flächen des Isolationsteils
ausrichten (Schnitt A-A)
(ill. 9)
Feed plug 4 resp. 5 into insulator 7
aligning the fl ats of the plug with
those in the insulator (Section A-A).
(ill. 10)
Feder 3, Schutzhülse 2 und Isolations-
teil 1 in dieser Reihenfolge von vorne
auf den Stecker (4 bzw. 5) aufstecken.
Die Nocken des Isolationsteils 1 müs-
sen dabei mit den Aussparungen des
Isolationsteils 7 ausgerichtet werden
(X).
(ill. 10)
In turn, mount spring 3, safety shroud
2 and insulator 1 onto the plug (4
resp. 5). The snap-in locator and open-
ing (X) of two insulators 1 and 7 must
be in line.
(ill. 11)
Vollständige Einrastung auf beiden
Seiten optisch kontrollieren.
(ill. 11)
Visually check the snap-in parts on
both sides for correct assembly!
(ill. 12)
Zugentlastungs-Stöpsel mit der Elek-
tronik Spitzzange bis zum Einrasten
eindrücken.
(ill. 12)
Press-in the cable strain re-lief stopper
with the angled-nose pliers.
(ill. 13)
Vollständige Einrastung optisch kont-
rollieren!
(ill. 13)
Visually check the snap-in parts for
correct assembly!
