Phasing
Positive pressure on diaphragm produces positive volt-
age on pin 2 with respect to pin 3 (see Figure 2)
GREEN
GREEN
1 2
3

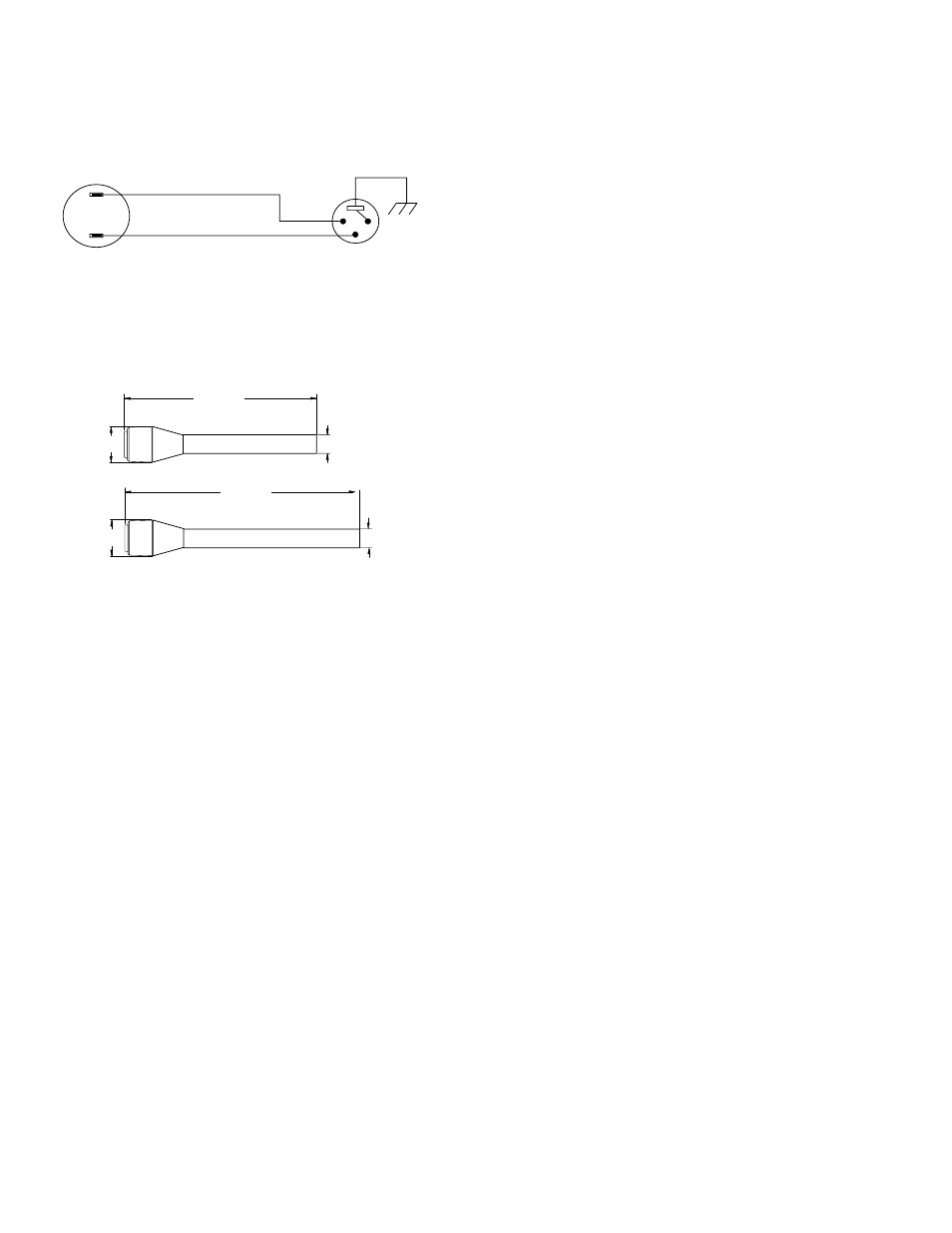

CARTRIDGE 3-PIN PROFESSIONAL
AUDIO CONNECTOR
INTERNAL CONNECTIONS
FIGURE 2
Dimensions
See Figure 3
38 mm
200 mm
Б
Б
19 mm
244 mm
Б
Б
Б
19 mm 38 mm
VP64A
VP64AL
OVERALL DIMENSIONS
FIGURE 3
Net Weight
VP64A: 158 g (5.6 oz)
VP64AL: 179 g (6.33 oz)
Certifications
Eligible to bear CE Marking. Conforms to European EMC
Directive 89/336/EEC. Meets applicable tests and perfor-
mance criteria in European Standard EN55103 (1996)
parts 1 and 2, for residential (E1) and light industrial (E2)
environments.
FURNISHED ACCESSORIES
Swivel Adapter A57F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windscreen 49A130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPTIONAL ACCESSORIES
7.6 m (25 ft.) Cable C25E . . . . . . . . . . . . . . . . . . . . . . . . . . .
Isolation Swivel Adapter A53M, A53HM . . . . . . . . . . . . . . .
Microphone Bag 26A13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACEMENT PARTS
Cartridge R199 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen 37A186B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cartridge Housing Ring (VP64A) 31C1605A . . . . . . . . . . .
Cartridge Housing Ring (VP64AL) 31C1605B . . . . . . . . .
Plug Element 90C1984 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For additional service or parts information, please contact
Shure’s Service department at 1-800-516-2525. Outside
the United States, please contact your authorized Shure
Service Center.
