Ersa-Lötrauchabsaugungen – so leise und effizient wie nie!
Ersa EASY ARM 1 und EASY ARM 2
Ersa EASY ARM 1
Ersa EASY ARM 2
Maße (L x B x H), inkl. Stutzen:
255 mm x 255 mm x 470 mm
255 mm x 255 mm x 470 mm
Gewicht:
7,5 kg
15 kg
Volumenstrom (mit neuem Filter):
1 x 110 m³/h
2 x 110 m³/h
Volumenstrom Gebläse:
1 x 130 m³/h
2 x 130 m³/h
Unterdruck:
1 x 1.800 Pa
2 x 1.800 Pa
Geräuschpegel:
50 dB (A)
50 dB (A)
Filterklasse
Vorfilter (Vlies):
Kombifilter:
F7
H13
F7
H13
Abscheidegrad (HEPA)
Vorfilter 1 – 10 µm Partikel:
Kombifilter
<
1 µm Partikel:
80 % – 90 %
99,95 %
80 % – 90 %
99,95 %
Filterfläche Kombifilter:
2,2 m²
2,2 m²
Gasfilter:
Aktivkohle
Aktivkohle
Lebensdauer Kombifilter:
(Einsatz beim Handlöten)
1.500 h
1.500 h
Elektrische Daten:
50 W, 100 – 240 V AC, 50/60 Hz
100 W, 100 – 240 V AC, 50/60 Hz
Sicherung:
6,3 A
6,3 A
Anschlüsse:
Schnittstelle zu i-CON-Lötstationen
oder Standby-Schalter
Schnittstelle zu i-CON-Lötstationen
oder Standby-Schalter
Bestellnummer
0CA10-001
0CA10-002

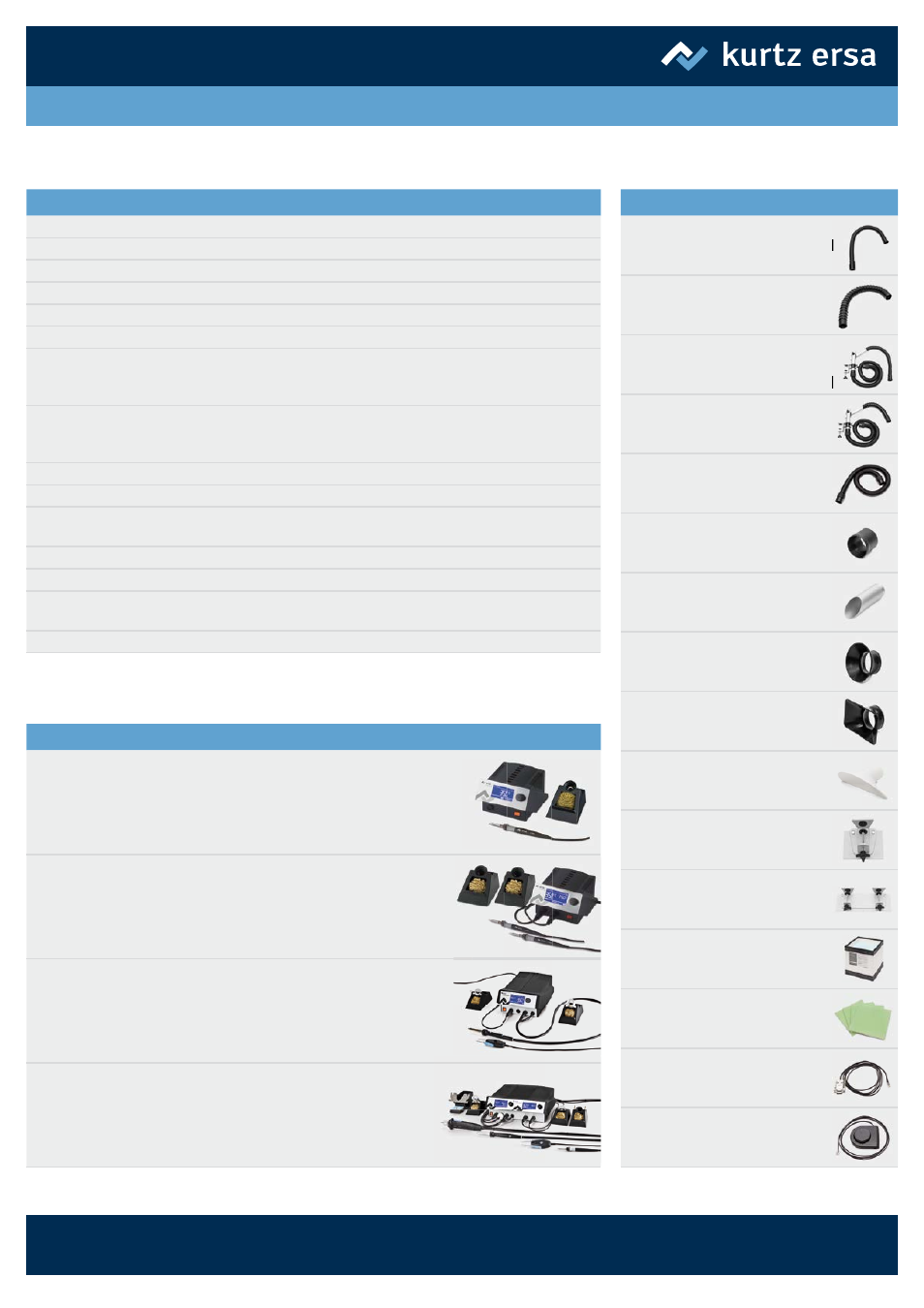

Technische Daten
Zubehör und Ersatzteile
Bestellnr.
Beschreibung
0CA10-4002
Absaugarm Highflex,
1.000 mm, zur Direktmon-
tage an Filtergerät
0CA10-4003
Absaugarm Omniflex,
900 mm, zur Direktmon-
tage an Filtergerät
0CA10-4001
Absaugarm mit Gelenk,
500 mm Highflex, z. Tisch-
montage, inkl. 0CA10-2002
0CA10-4004
Absaugarm mit Gelenk,
600 mm Omniflex, z. Tisch-
montage, inkl. 0CA10-2002
0CA10-2002
Verbindungsschlauch,
2.000 mm
0CA10-9006
Düsenkupplung Omniflex
(nur bei Absaugarm Omniflex
und Absaugdüse 5001/5004)
0CA10-5001
*
Absaugdüse ø 60 mm,
metallisch, antistatisch
0CA10-5002
Absaugdüse rund,
ø 118 mm, antistatisch
0CA10-5003
Absaugdüse rechteckig,
155 mm x 90 mm,
antistatisch
0CA10-5004
*
Absaugdüse Plus,
230 mm x 85 mm,
transparent
3CA10-9001
Tischhalterung für
EASY ARM 1
3CA10-9002
Tischhalterung für
EASY ARM 2
0CA10-1001
Kombifilter,
Partikelfilter H13,
Gasfilter Aktivkohle
0CA10-
1002/04
Vorfilter,
Partikelfilter F7
(4 Stück/VPE)
3CA10-2003
Interface-Kabel z. Anschluss
von i-CON1 C/2 C, i-CON
VARIO 2/4 an EASY ARM 1/2
3CA10-2004
Standby-Schalter
266641 - 05/2014 | Änderungen vorbehalten | © by Ersa GmbH
Ersa Lötstationen mit Schnittstelle (optional)
Bestellnr.
Beschreibung
0IC1100A0C
Ersa i-CON1 C
elektronisch temperaturgeregelte Lötstation
mit Schnittstelle, antistatisch, 230/24 V, 80 W
0IC2000A0C
Ersa i-CON2 C
elektronisch temperaturgeregelte Lötstation
mit Anschlussmöglichkeit für ein zweites Lötwerkzeug,
mit Schnittstelle, antistatisch, 230/24 V, 150 W
0ICV2000A
(alle Versionen)
Ersa i-CON VARIO 2
Mehrkanal Löt- und Entlötsation mit Heißluftkolben
i-TOOL AIR S und wahlweise Lötkolben i-TOOL oder
Entlötpinzette CHIP TOOL VARIO, mit Schnittstelle,
antistatisch, 230/24 V, 200 W
0ICV4000A
(alle Versionen)
Ersa i-CON VARIO 4
Mehrkanal Löt- und Entlötsation mit Anschlussmöglichkeit
für bis zu 4 Lötwerkzeuge (i-TOOL AIR S, CHIP TOOL VARIO,
i-TOOL und X-TOOL), mit Schnittstelle, antistatisch,
230/24 V, 500 W
* In Verbindung mit einem Absaugarm Omniflex benötigen
Sie 0CA10-9006 Düsenkupplung Omniflex.
