Field of application:
The devices are suited only for distributing radio and television
signals in the house! If the device is used for other purposes, no
warranty is given!

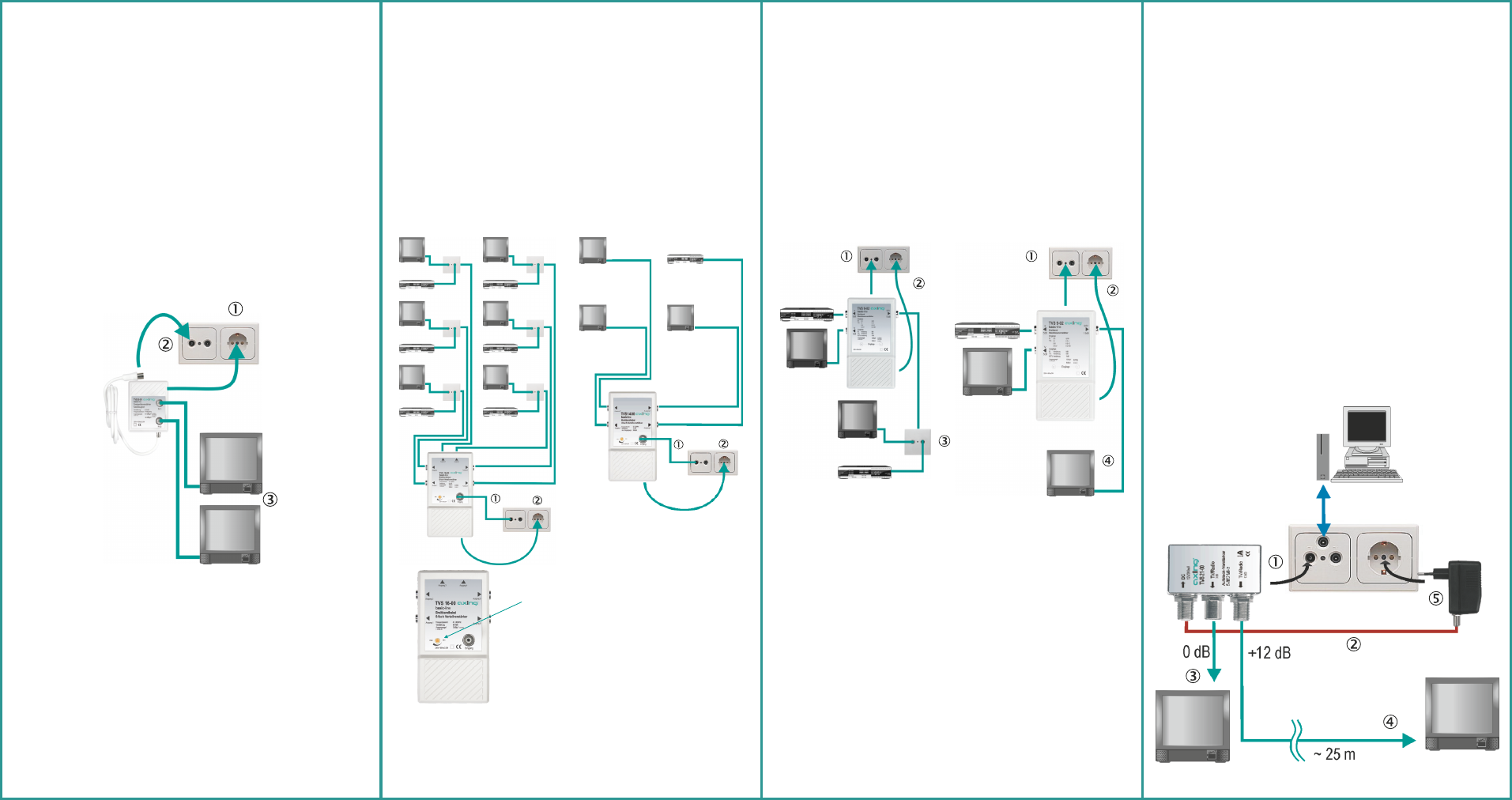

Product Discription TVS 8-01 :
The TVS 8-01 extends an existing antenna wall outlet.
4
On its rear side it is equipped with a mains power plug. The
TVS 8-01 is directly plugged to the mains socket (1).
4 The IEC cable has to be plugged to the TV-output of the
antenna socket (2).
One may connect to the outputs of TV1 and TV2 each one TV-
set (3).
RF Installation:
Use for all amplifier highly shielded coaxial cable with an IEC
connector Suited cables and plugs can be found in the current
AXING catalogue or at www.axing.com.
Unused outputs must be terminated with a 75 Ohm terminating
resistor.
Product Discription TVS 14-00/ TVS 16-00:
The TVS 14-00/TVS 16-00 distributes the antenna signals to 6
further antenna sockets or terminal devices.
4
The input of the amplifier must be connected to the TV output
of an antenna socket (1).
4 You may now connect up to 4/6 further antenna wall outlets
(2) or terminal devices (TVs) (3) to the amplifier outputs 1 to 4
(TVS 14-00) respectively 1 to 6 (TVS 16-00).
4 The amplifier must be connected to mains (4).
Product Discription TVS 9-02:
The TVS 9-02 extends an antenna wall outlet.
4
The amplifier is plugged on to an antenna wall outlet (1). It is
equipped on its rear side with IEC male and female plugs.
4 Kindly plug the mains plug into a mains wall outlet (2).
4 On the outputs TV and R you may connect directly one TV and
one Radio set.
4 On the wideband output R/TV you may connect another
antenna wall outlet (3) or another individual device such as a
TV (4) or Radio.
Product Discription TVS 21-00:
The TVS 21-00 Amplifier is used to connect a long distant TV-set to a
wideband wall outlet by using a (max. 25m) long antenna cable.
4
The TVS 21-00 can be directly plugged on to the TV-output of
any antenna wall outlet. The amplifier is therefore equipped
on its rear side with an IEC female socket (1).
4 Connect the enclosed remote power supply unit by using a F-
type coax. cable with the DC-input of the amplifier (2).
4 The wide band TV/Radio output with 0dB allows to connect a
short-distant Radio or TV-set by using a short length IEC
connecting cable (3).
4 3The long-distant TV- or Radio set is connected to the
TV/Radio output with 12dB gain by using a (max. 25m ) long
coax. Cable (4).
4 Please plug the power supply into 230Volt mains socket (5).
4 Notes:
4 The TVS 21-00 is suitable for any kind of wideband antenna
wall outlets (f.e. 2- and 3-port CATV- and SAT wall outlets and
3-port Multimdedia antenna outlets.
4 Make sure when installing TVS 21-00, that all used antenna
cables comply with the screening class A.(For example SAK
151-02)
4 Make sure only to use the power supply, that is included in
the delivery.
