1.3.2. Master/Slave mode
In the master/slave mode one master device connects up to 63 slave devices with the internet. Communication
between the modems isn´t possible. The applikation in hotels or boarding houses ar typical uses of the
master/slave mode. Please contact the technical support of AXING, to change from the peer-to-peer mode to
the master/salve mode (
www.axing.com | Technischer Support).

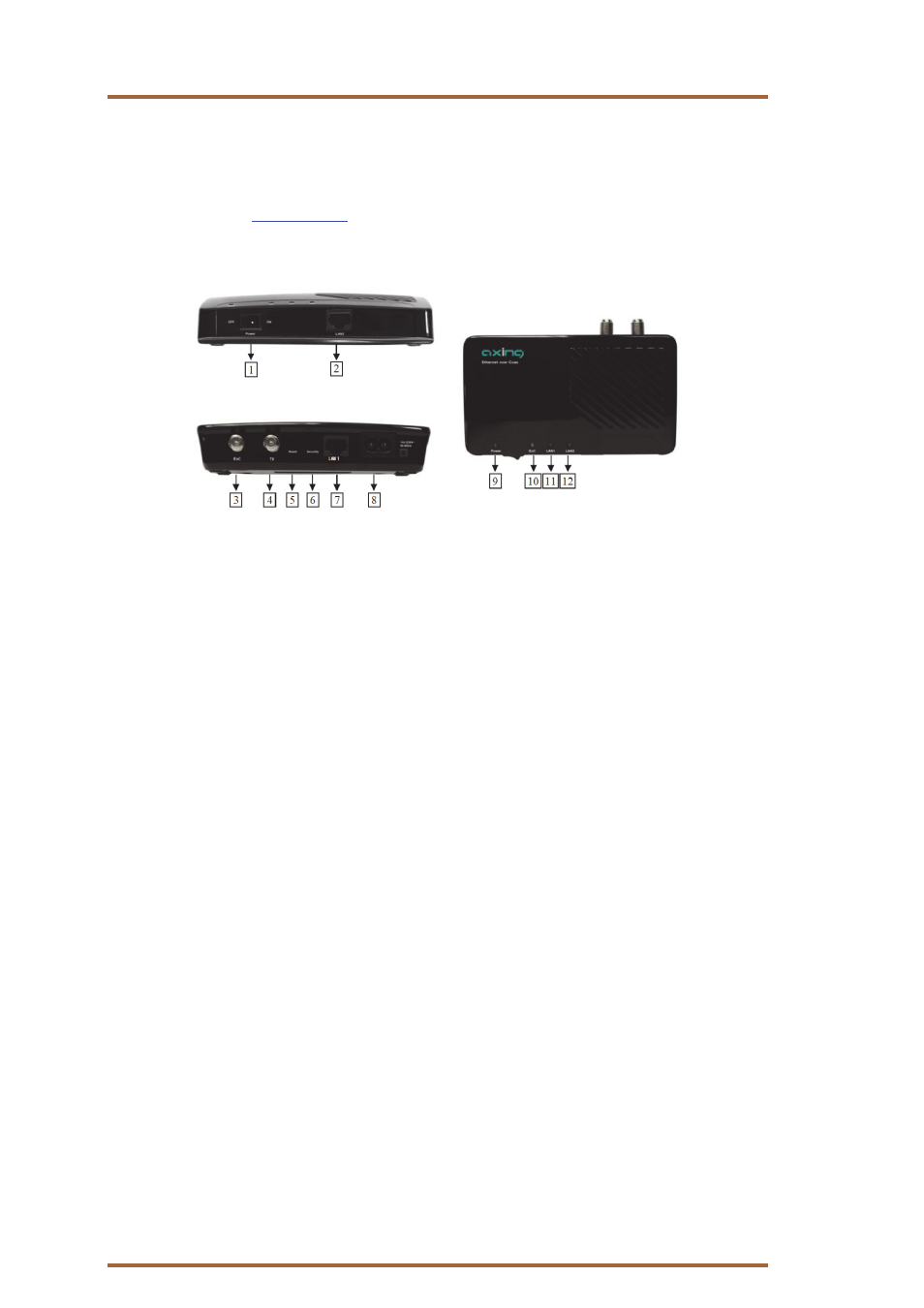

1.4. Connections, indications, operating elements
1. Power ON/OFF
2. LAN 2, RJ 45 socket
3. EoC F-socket (data + TV 2-862 MHz)
4. TV- F socket (85-862 MHz)
5. Reset button
6. Security button
7. LAN 1, RJ 45 socket
8. Mains socket 110-230 V
9. Power LED
10. EoC LED
11. LAN 1 LED
12. LAN 2 LED
A TV or radio device can be connected to the TV-F socket on the rear side of the EoC modem. The integrated
distributor is equipped with a highly selective filter so that the TV/radio reception is not interfered with by the
data traffic.
If the TV F socket ist not used, the socket has to be terminated with an termination resistor
CFA 8­00!
