e n g l i s h

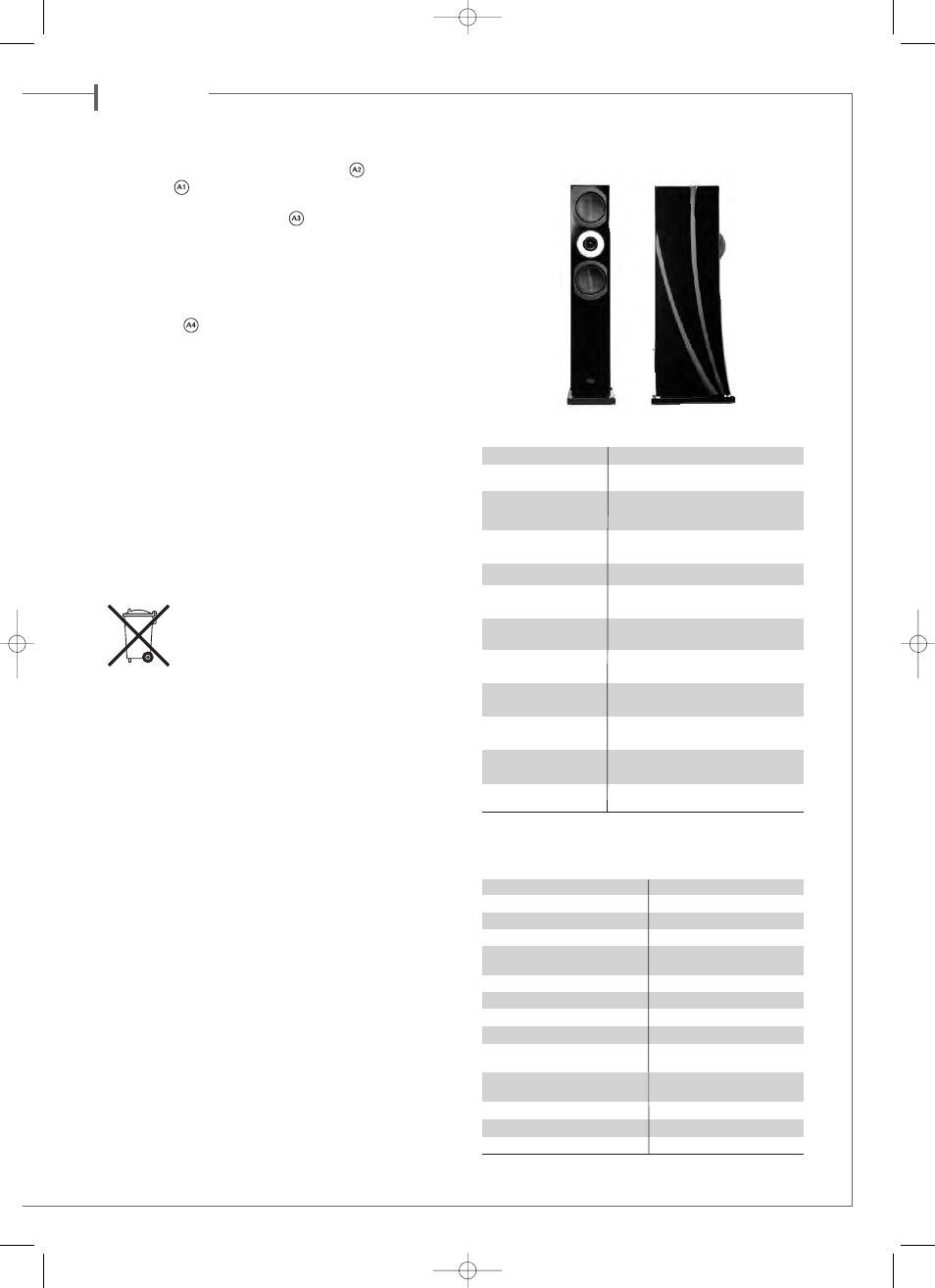

SPECIFICATIONS & TECHNICAL DATA
PACIFIC 3 SA
semi-active loudspeaker
Use floor standing
Ways 3
Drivers
1 x co-axial 2-way BC17
2 x 21ND34
Sensitivity (2.83V/1m)
(dB)
91.5
Cross-over points (Hz) 175-1 830
Frequency response
(Hz)
38-20,000
Nominal impedance
8
(ohms)
Minimum impedance
4
(ohms)
Power handling
150
(Watts)
Pick power
1,000
(Watts)
Dimensions H x W x D 128 x 29 x 49 cm
50.4 x 11.4 x 19.3 in
Weight 42 kg - 93 Ibs
SPECIFICATIONS AND TECHNICAL DATA
OF THE LOW FREQUENCES AMPLIFIER
Nominale power 450 W RMS
Peak power 900 W RMS
Lowpass frequency Fixed preset
Phase adjustment No
Level adjustment -6dB to +6dB,
middle position = 0dB
Standy mode Yes
Inputs High-level: +/-
Voltage 115 / 230 VAC – 50 / 60 Hz
Maximum power consumption 625W
Standy power consumption 0.3W @ 230VAC
0.4W @ 115VAC
Power consumption 0.1W @ 230VAC
when off 0.1W @ 115VAC
Useable temperature range +5 °C to +35 °C
Storage temperature -5 °C to +40 °C
Useable humidity range 40 % to 70 %
POWER SUPPLY
Select the right voltage with the 115V-230V switch and
connect the power inputs to the mains with appropriate
power chords. Power on the amplifiers by selecting either ON
or AUTO position for the POWER
switch. With the switch
on the AUTO position, the unit will mute after a few minutes
without input signal. The system turns on automatically when
signal comes back.
LOW FREQUENCIES ADJUSTMENT
The level of the active low-frequencies section is adjustable
thanks to the
VOLUME control. Start with the standard
factory setting, the mark being vertical at the 12 am position.
Depending upon the in room position of the speakers, the
distance between them and/or to the rear and side walls, you
might need to adjust the level of bass for optimum results.
We recommend to apply the same setting for both speakers.
Different ones will be profitable only when done by specialist
using professional measurements equipment.
MAINTENANCE
The Pacific 3 SA cabinets are made of medium density fiber
panels protected by 5 layers of high gloss lacquer. These hi-tech
finish do not require any specific care. Use a wet cotton
waste for cleaning, or any cleaning device for wood or plastic.
WEEE MARK
Disposal of Wastes of Electrical & Electronic
Equipment (Applicable in the European Union)
This symbol on the product, consisting of the
crossed-out wheeled bin, indicates that this
product shall not be treated as household
waste. Instead it shall be handed over to the
applicable collection point for the disposal of
electrical and electronic equipment at the end of life.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the envi-
ronment and human health, which could otherwise be cau-
sed by inappropriate waste handling of this product. The
recycling of materials will help to preserve natural resources.
For more detailed information about recycling of this pro-
duct, please contact your local city office, your household
waste disposal service or the shop where you purchased the
product.
Because of technical improvements already under way in our constant
search for optimum quality, Cabasse reserves the right to modify all
the models presented in specification sheets, advertising materials
and manuals without prior notice.
