HUBER+SUHNER OTB32 - Handbuch (Seite 2)

Created by: FO R&D www.hubersuhner.com/lisa 2
DOC-0000000000 uncontrolled copy
Rev: A-00
Assembly Instruction / Montageanleitung
OptiBox32

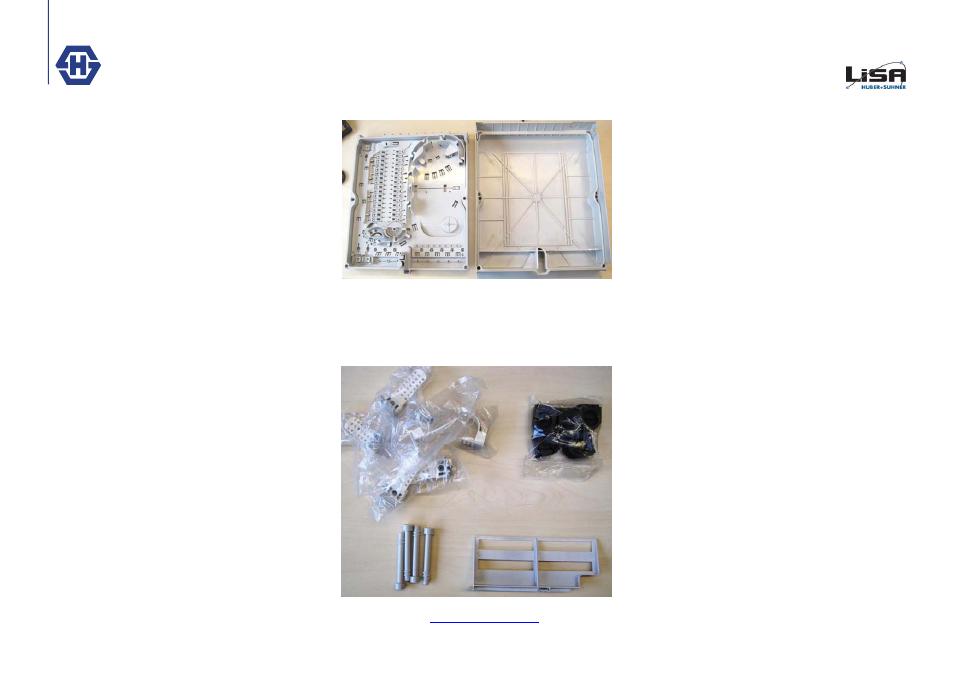

II. Purchased parts package:
A. 1 x OTB32 Base with screwed Inlay
B. 1 x OTB32 Cover
II. Lieferumfang Box:
A. 1 x OTB32 Base mit eingeschraubtem Inlay
B. 1 x OTB32 Deckel
C. 8 x OTB32 U-Shapes
D. 8 x OTB32 Kabelfixierung
E. 1 x OTB32 Adapterfeld
F. 4 x OTB32 Deckel Schrauben
C. 8 x OTB32 U-Shapes
D. 8 x OTB32 Fixing latches
E. 1 x OTB32 Patchfield
F. 4 x OTB32 Cover screws
A B
C
D
E
F
