1.3 Technical data
weight: 42Kg
Power connection:
230V 50Hz
Power consumtion: 7,4A
light source: OSRAM HMI 1200W/S
max.
ambient temperature: 40°C

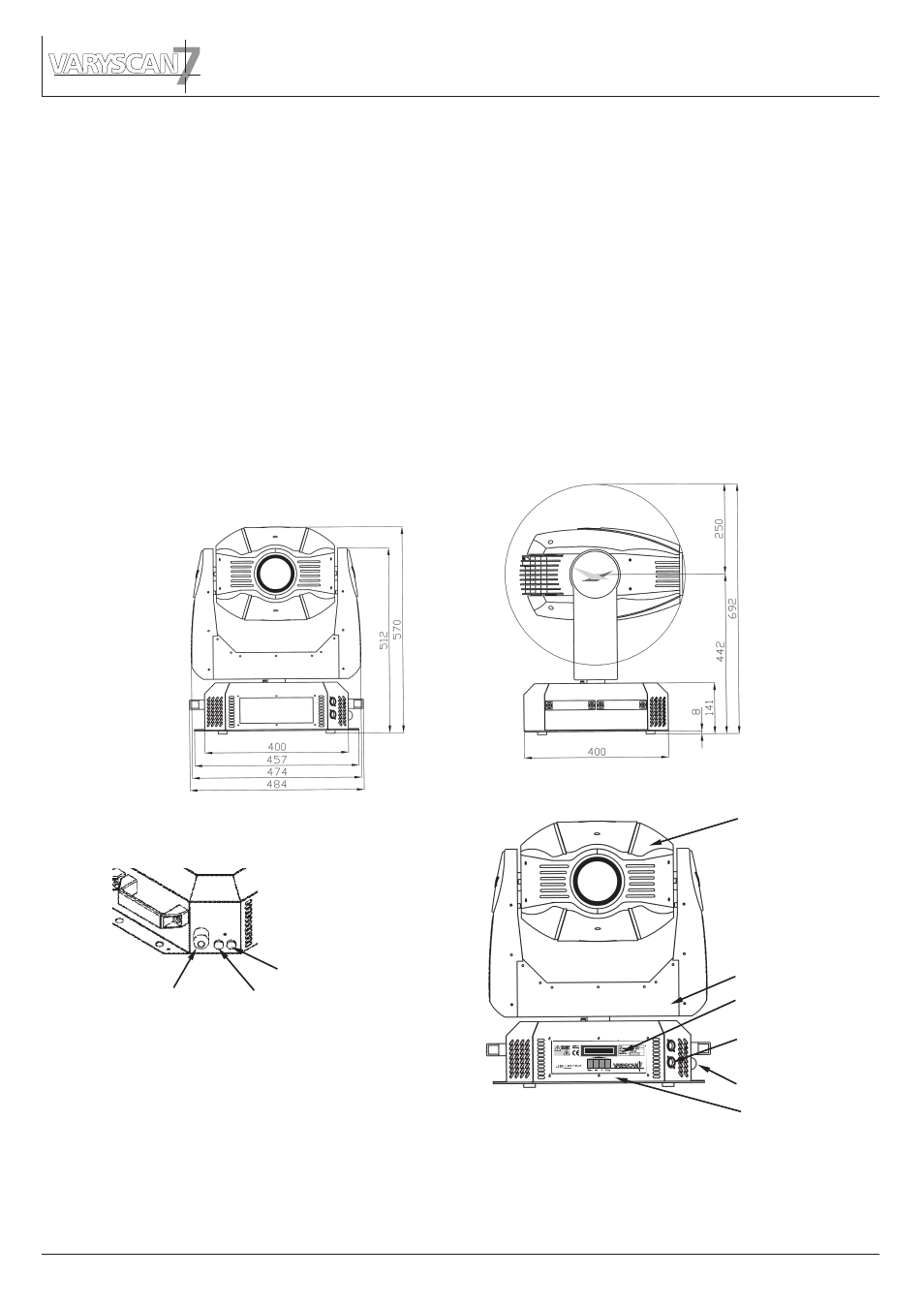

DMX connectors
base
electronic fuse 2 Amp slow arm
head
control panel
mains connection
lamp fuse 8 Amp slow Mains connection
1. Indroduction
1.1 General Remarks
The Varyscan 7 1200HMI is equipped with 7 colours plus white, one colour effect wheel
2 x 4 gobos (rotating, indexable and interchangable),iris diaphram, focus, one rotating,
indexable and exchangeable prism, dimmer, shutter and one progressive frost filter.
The pan and tilt movement can opperate in 8bit or 16bit mode, depening on the lighting
control desk in use.
1.2 Unpacking
Open the top of the box and remove the unit with the inlays. Remove the inlays from the
Varyscan7 head and base and take the unit from the box. For any damage occuring during
transport, report to the transport company immediately.
