6 GB/IE
Introduction
Plunge saw PTS 450 A1
Q Introduction
Please make sure you familiarise your-
self fully with the way the device works
before you use it for the first time and
that you understand how to handle electrical pow-
er tools correctly. To help you do this please read
the accompanying operating instructions. Keep
these instructions in a safe place. If you pass the
device on to anyone else, please ensure that you
also pass on all the documentation.
Q Proper use
This machine is primarily intended for the sawing,
longitudinally and transversely, of solid wood, chip-
board, plywood, aluminium, tiles, stone, plastic and
lightweight construction materials held in a fixed
position. Please note that the blade pre-installed in
the saw as supplied is intended for use with wood
only. Any other use or modification to the device
shall be considered as improper use and could
give rise to considerable dangers. Not suitable for
commercial use.
Q Features and equipment
1 Mechanical plunge stop
2 Mains On / Indicator LED
3 Mains lead
4 Holder for Allen key
5 Ventilation slots
6 Cover for carbon brushes
7 ON / OFF switch
8 Cutting depth setting clamp
8 a Cutting depth scale
9 Base plate
10 Guide fence slot
11 Guide fence
11 a Wing screw for guide fence
12 Spindle lock
13 Connection for dust extraction
14 Saw blade
15 Clamping flange
16 Clamping screw and plain washer
17 Dust extraction hose
18 Saw blade with hardened metal teeth Z85 / 30
19 Diamond saw blade Z85VR
20 HSS saw blade Z85 / 36

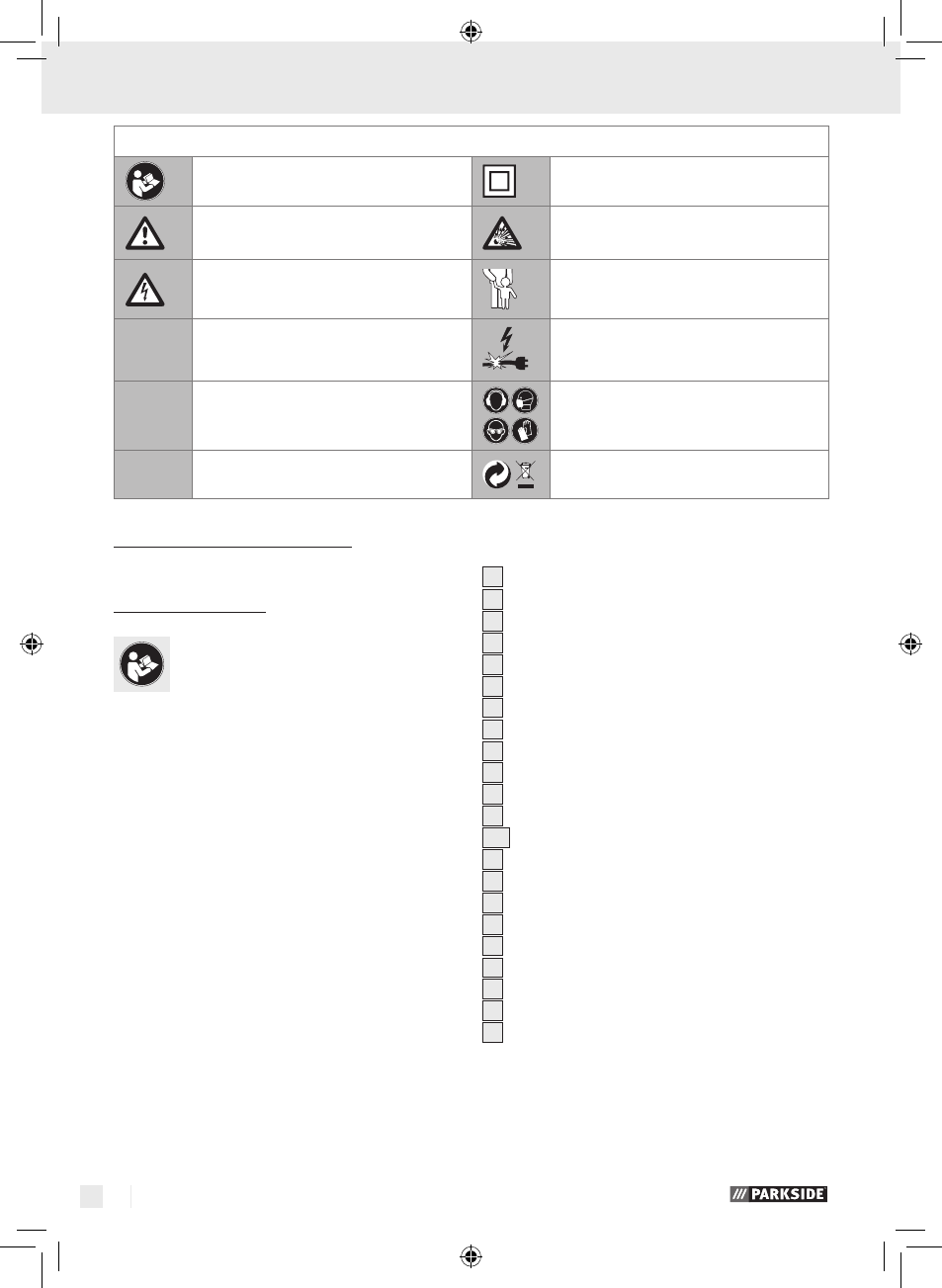

The following pictograms are used in these operating instructions / on the device:
Read instruction manual! Safety class II
Observe caution and safety notes! Risk of explosion!
Caution – electric shock!
Danger to life!
Keep children away from
electrical power tools!
V~
Volt (AC)
Risk of loss of life by electric shock from
damaged mains lead or mains plug!
n
0
Design no-load speed
Wear hearing protection, dust
protection mask, protective glasses
and protective gloves.
W
Watts (Effective power)
Dispose packaging and appliance in
an environmentally-friendly way!
