7 PHKSU 710 A1
GB
IE
CY

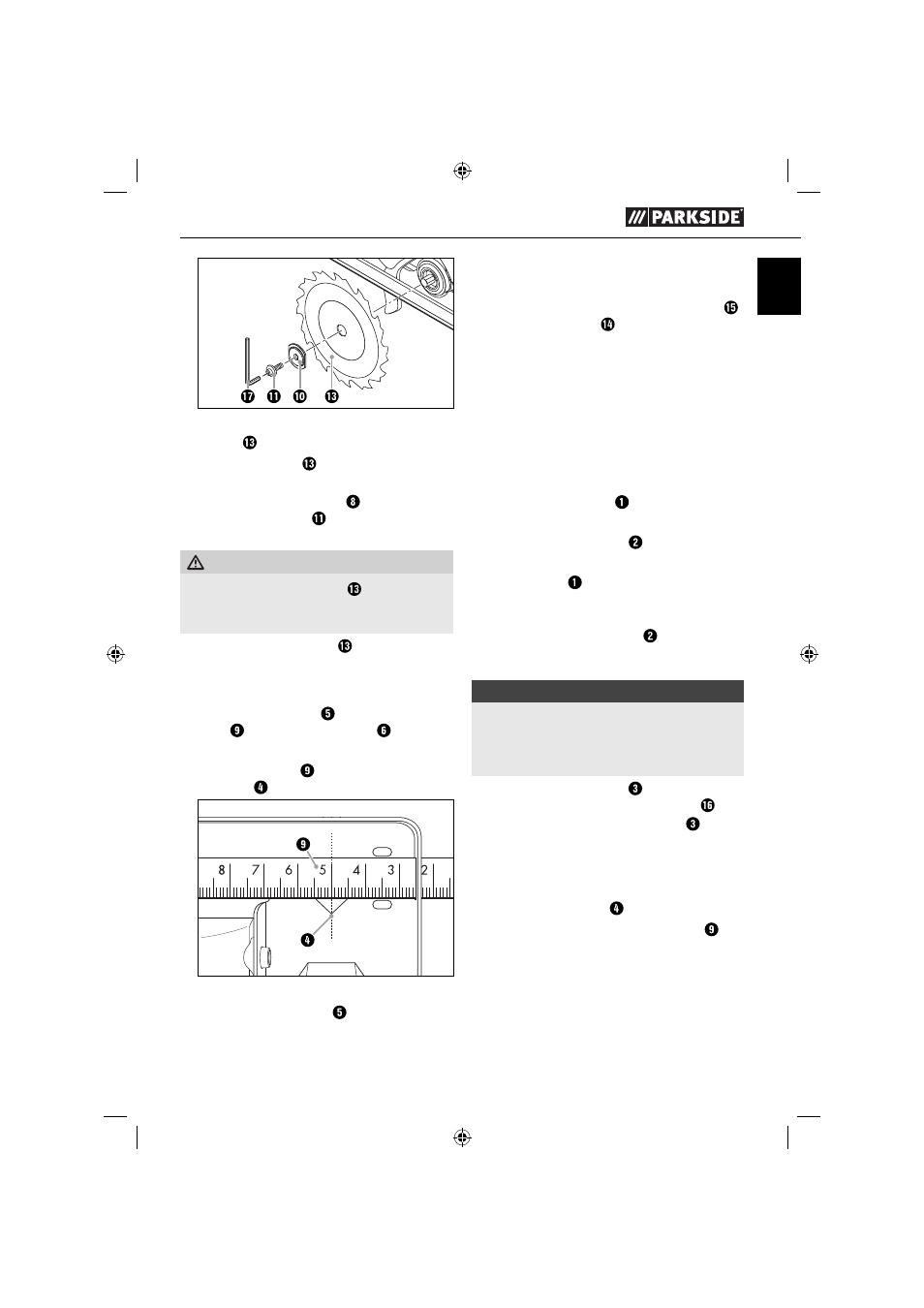

Fig. A: Changing the saw blade
4. Remove saw blade.
5. Fitting a saw blade is carried out in the
reverse order.
6. Press the spindle lock button (until it engages)
and use the Allen key to tighten the clamping
screw/washer.
WARNING!
► The arrow on the saw blade must correspond
to the arrow showing the direction of rotation
(running direction shown on the device).
■ Ensure that the saw blade is suitable for the
rotational speed of the tool.
Fitting the guide fence
♦ Loosen the wing screw and insert the guide
fence into the guide fence slot .
♦ Adjust the required cutting width using the scale
on the guide fence and the aperture in the
baseplate (see also Fig. B).
Fig. B: Cutting width 5 cm
♦ Retighten the wing screw .
Connecting the sawdust extraction
device
♦ Push the vacuum adapter for dust extraction
onto the chip ejector and turn it clockwise
to fi x it.
♦ Connect an approved dust and chip extraction
device.
Operation
Switching on and off
Switching on:
♦ Push the safety lock-out to the left or right
and keep it pressed.
♦ Press the ON/OFF switch .
♦ Once the saw is running you can release the
safety lock-out .
Switching off :
♦ Release the ON/OFF switch .
Setting the cutting depth
NOTE
► We generally recommend setting the cutting
depth to approx. 3 mm more than the thickness
of the material. This ensures that you achieve a
clean cut.
♦ Release the locking screw , set the desired
cutting depth on the cutting depth scale
and then re-tighten the locking screw .
Working with the circular saw
1. Switch on the device – as described in “Switch-
ing on and off ” – and then place it with the front
edge of the base plate on the material.
2. Align the machine using the guide fence
or by using a marked line.
3. Hold the machine in both hands using the
handles and saw by exerting an even pressure.
