Multi-Contact MA122 Benutzerhandbuch
Seite 3
Advanced Contact Technology
www.multi-contact.com
3 / 4
3
1
4
2
5
6

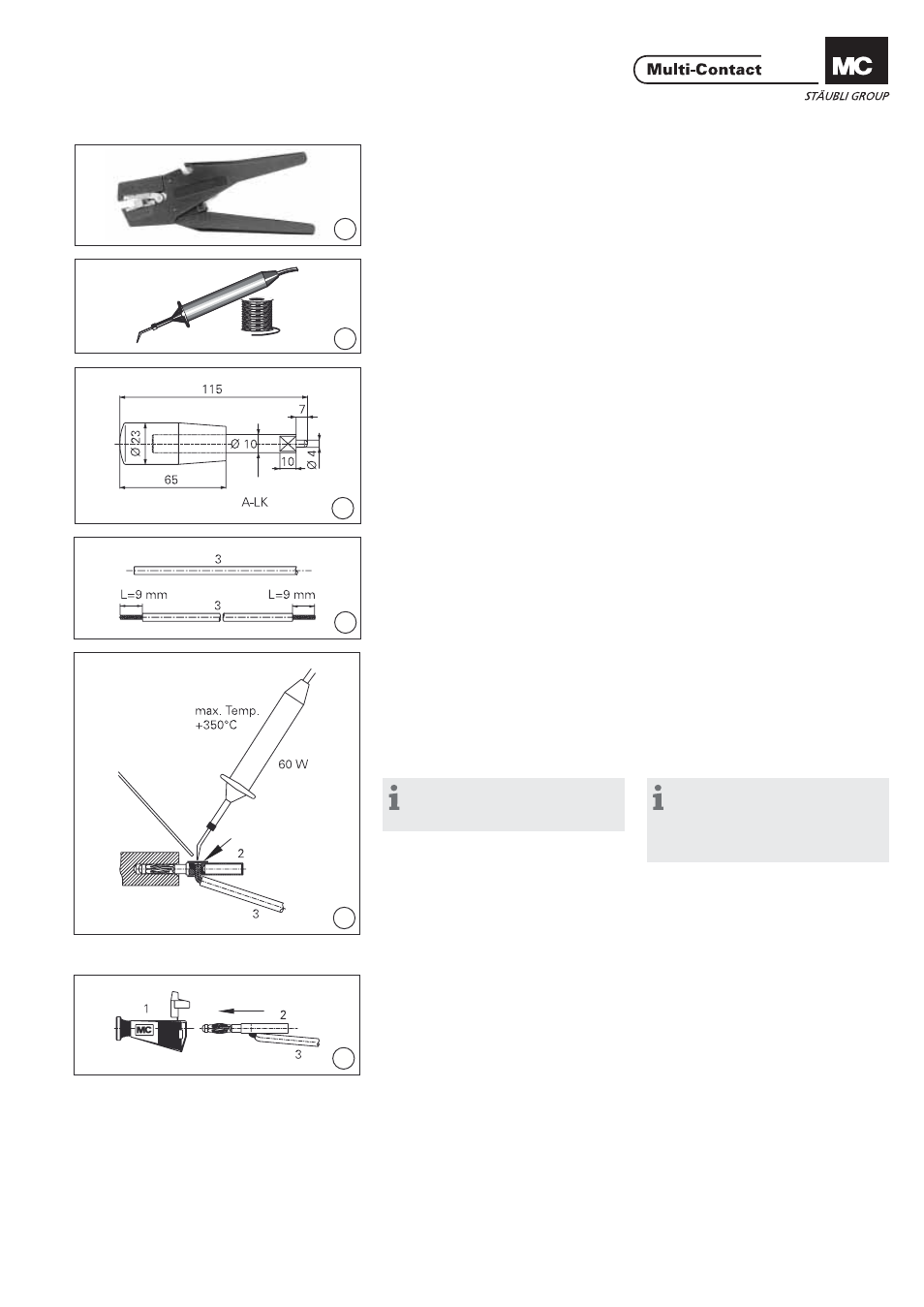

Notwendiges Werkzeug
Tools required
(ill. 1)
Abisolierzange „Stripax“
Bestell-nr. 25.0015
(ill. 1)
Cable stripper “Stripax”
Order No. 25.0015
(ill. 2)
- Lötkolben 60W
- Lötdraht
z.B. bleifreies Lot Ø 1,5
#58/405 (SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Bezugsquelle:
www.kester-online.de
(ill. 2)
- Soldering iron 60W
- Solder
e.g. lead free solder Ø 1,5
#58/405 (SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source of supply:
www.kester-online.de
(ill. 3)
Hilfswerkzeug A-LK
Empfohlenes Material: Stahl.
(ill. 3)
Auxiliary tool A-LK
Recommended material: Steel.
Vorbereitung der Leitung
Preparation of the cable
(ill. 4)
Leitung 3 auf gewünschte Nennlänge
ablängen und mittels Abisolierzange
auf Länge L = 9mm abisolieren.
(ill. 4)
Cut the cable 3 to the desired nominal
length and strip cable insulation to
length L = 9mm with cable stripper.
(ill. 5)
Leitung 3 an Stecker 2 löten. Max.
Löttemperatur: +350°C.
(ill. 5)
Solder cable 3 on plug 2.
Soldering temp. 350° C max.
Hinweis:
Ein Block mit Bohrung Ø 4,2mm
hält den Stecker 2 beim Löten fest.
Note:
For soldering purposes a block
with a drilled hole Ø 4,2mm should
be used to hold the plug 2 in posi-
tion.
Stecker und Lötstelle müssen frei von
austretendem Lötzinn sein.
Plug and solder area should be free
from excess solder.
Zusammenbau
Assembly
(ill. 6)
Stecker 2 (mit angelöteter
Leitung 3) von hinten in Isolierteil 1 bis
zum Anschlag einstecken.
(ill. 6)
Fully insert plug 2 (together with sol-
dered cable 3) into the insulator 1.
