3. Installation and set up
The Bluemotion -turntable comes in several pre mounted parts, as described under chapter 2
(Scope of supply). The set up and installation is done quickly and very easy. Please use the
white gloves during this procedure, to avoid scratches.
You should consider a safe and clean working area for the installation, in spite, as near as
possible to the final position of the
Bluemotion -turntable.
First take out the motor and tonearm of the packing. Now you should take out the first
packing layer. After that you can take out the
Bluemotion -turntable body from the next
packing layer. Place the turntable body on a on a clean underlay so that the bearing hole is
facing upside.
In the accessory bag (placed in the top packing layer) you will find 3 acrylic spikes, 3
stainless steel threaded bolts and 3 rubber-o-rings. Screw the 3 bolts about 10 millimeter
inwards into the Acrylic spikes. Now place the 3 rubber-o-rings over the bolds and slide them
to the bottom as well. Screw the 3 spikes into the pre drilled holes of the turntable body,
while thightening them gently. Then take the turntable body and place it on the area where
the final position of your
Bluemotion -turntable will be.

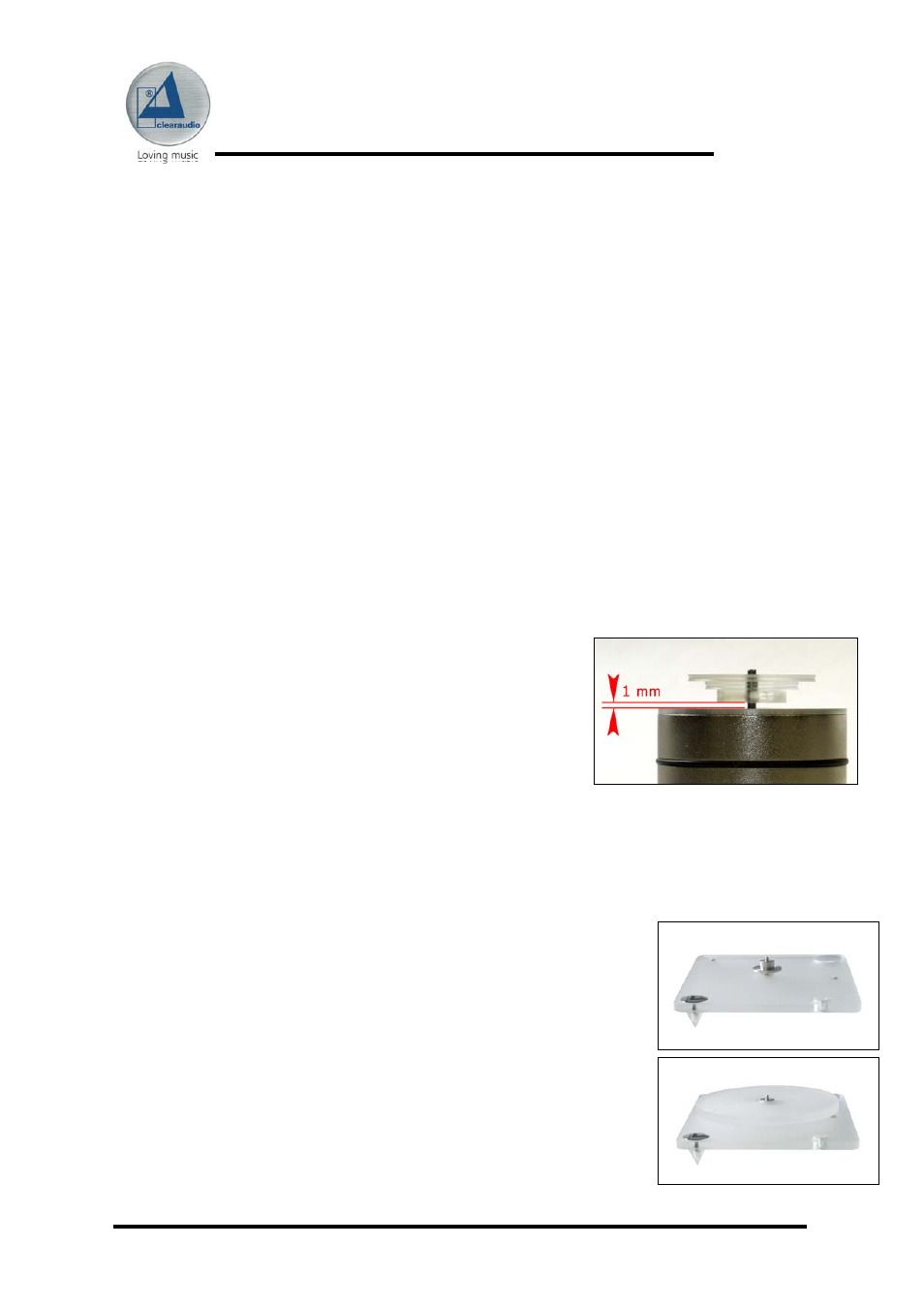

Now take the motor-pulley out of the accessory bag and shift
the motor pulley as far as on the motors´s shaft until you
have a distance of approximately 1 mm between the upper
edge of the motor and the lower edge of the pulley.
Now screw the three srews in the pulley one after the other
with the precision screw driver.
Lift the turntable chassis and slide it over the motor unit
through the motor-position hole in the turntable body so that the rubber-o- ring around the
housing of the motor is fixing the final position. Please pay attention, that the switch of the
motor is outside on the left side of the record player body.
Tip: You have also the possibility to take off the rubber-o-ring of the motor´s housing to
center the motor in the motor-position hole without any contact to the turntable chassis !
This way you can use your
Bluemotion -turntable perfectly
decoupled from the motor.
Now you can connect the power cord to your power outlet.
On the bottom packing layer you will find the turntable platter.
Please take the platter with both hands and place it on the bearing
upper part. Through a lightly up and down movement the platter will
slip onto the bearing upper part.
Make sure with a gently pressure that the platter is applying on the
complete surface of the bearing.
Place the clearaudio level gauge on the platter and bring the
turntable in level by turning the corresponding spikes in the right
