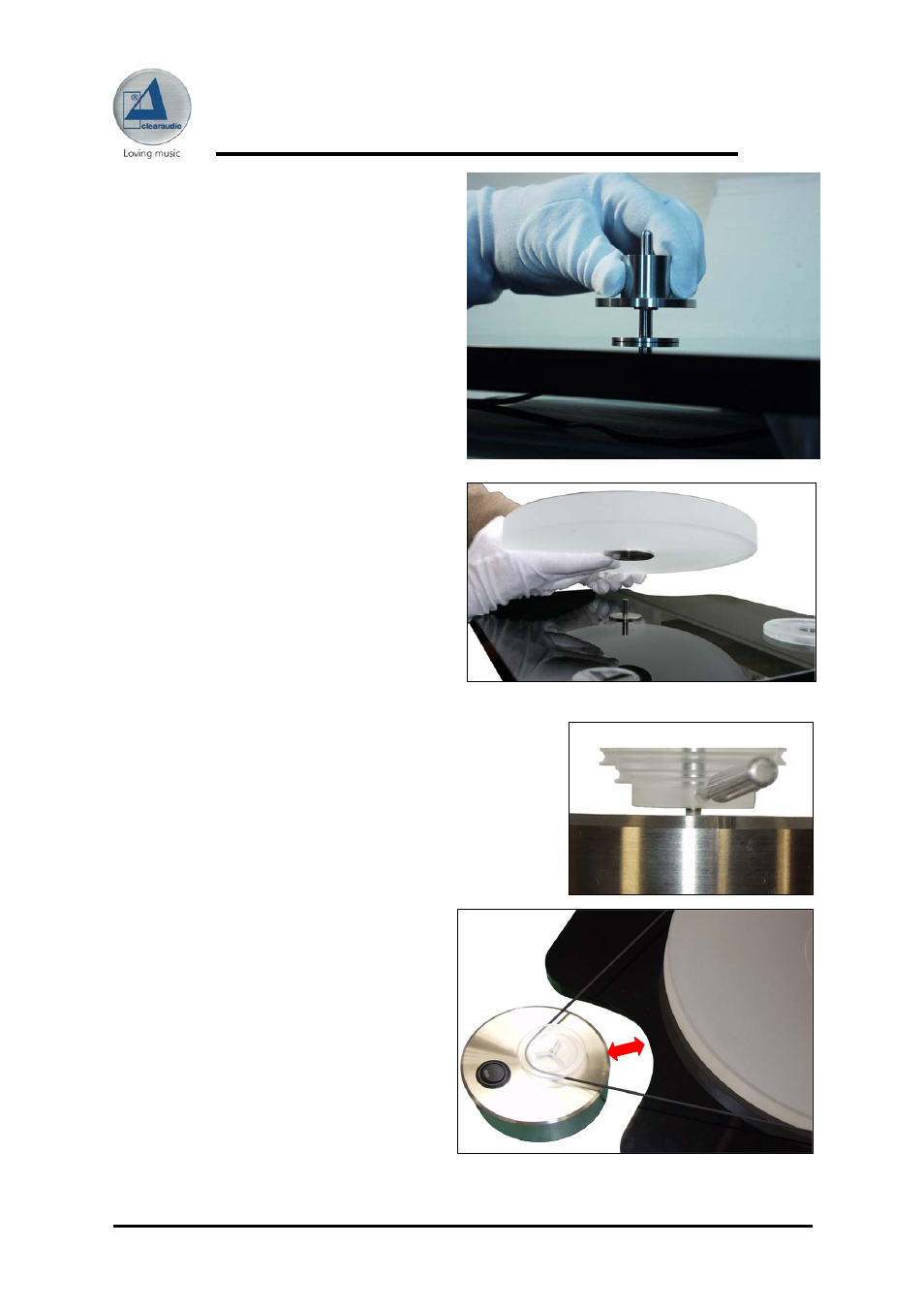

15. Now position the upper part of the platter
bearing and push it down. There should not
be any air left inside the bearing.
16. Place the platter carefully over the bearing.
Caution: Do not use too much pressure for
this step otherwise you will cause damage to
the platter or bearing.
17. Place the pulley on the motor spindle. The distance between
the pulley and the motor housing should be approx. 1mm.
Tighten the little screws inside the pulley with the aluminium
screwdriver provided.
18. Take the motor and place it in the indent of
the chassis. The switch should be on the
outside of the turntable and the space
between motor and chassis approx. 1cm.
(set up in chapter 4.).
