Jumper, Schalter und Anschlüsse
7
SGPIO-Anschluss A für
Systemplatine 1
8
SGPIO-Anschluss B für
Systemplatine 1
9
SGPIO-Anschluss A für
Systemplatine 2
10
SGPIO-Anschluss B für
Systemplatine 2
11
SGPIO-Anschluss A für
Systemplatine 3
12
SGPIO-Anschluss B für
Systemplatine 3
13
SGPIO-Anschluss A für
Systemplatine 4
14
SGPIO-Anschluss B für
Systemplatine 4
15
Stromanschluss auf der
Rückwandplatine für Netzteil 2
Expander-Rückwandplatine für 2,5-Zoll-Festplatten

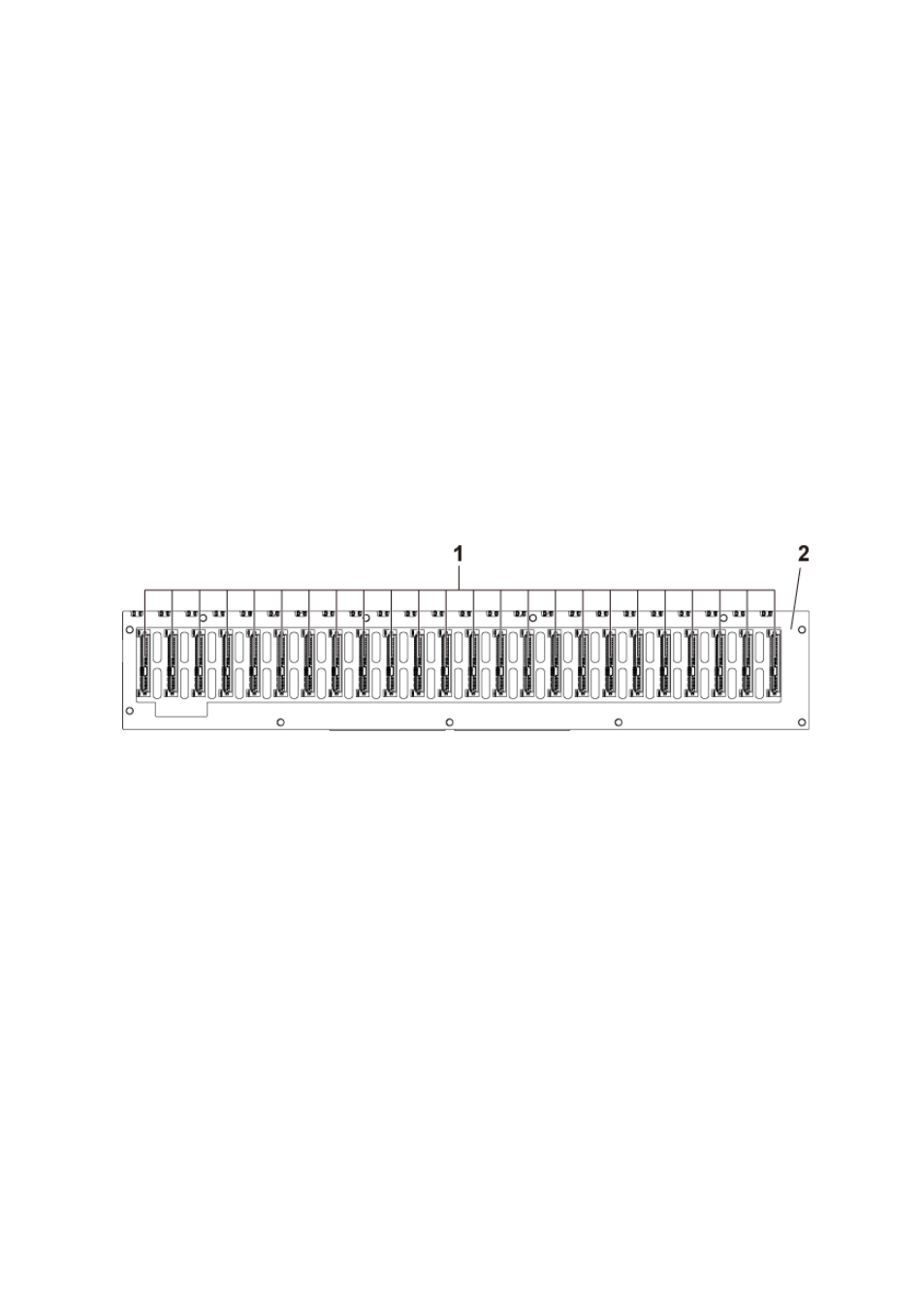

Abbildung 5-6. Vorderansicht der Rückwandplatine
1
SATA2- und SAS-Anschlüsse 1
bis 24 (von links nach rechts)
2
2,5-Zoll
-Rückwandplatine für
Expanderkonfiguration
