12. Schnittstellen - Pin-Belegungen
KBox A-101 – Benutzerhandbuch (Version 1.00)
12.1.7.

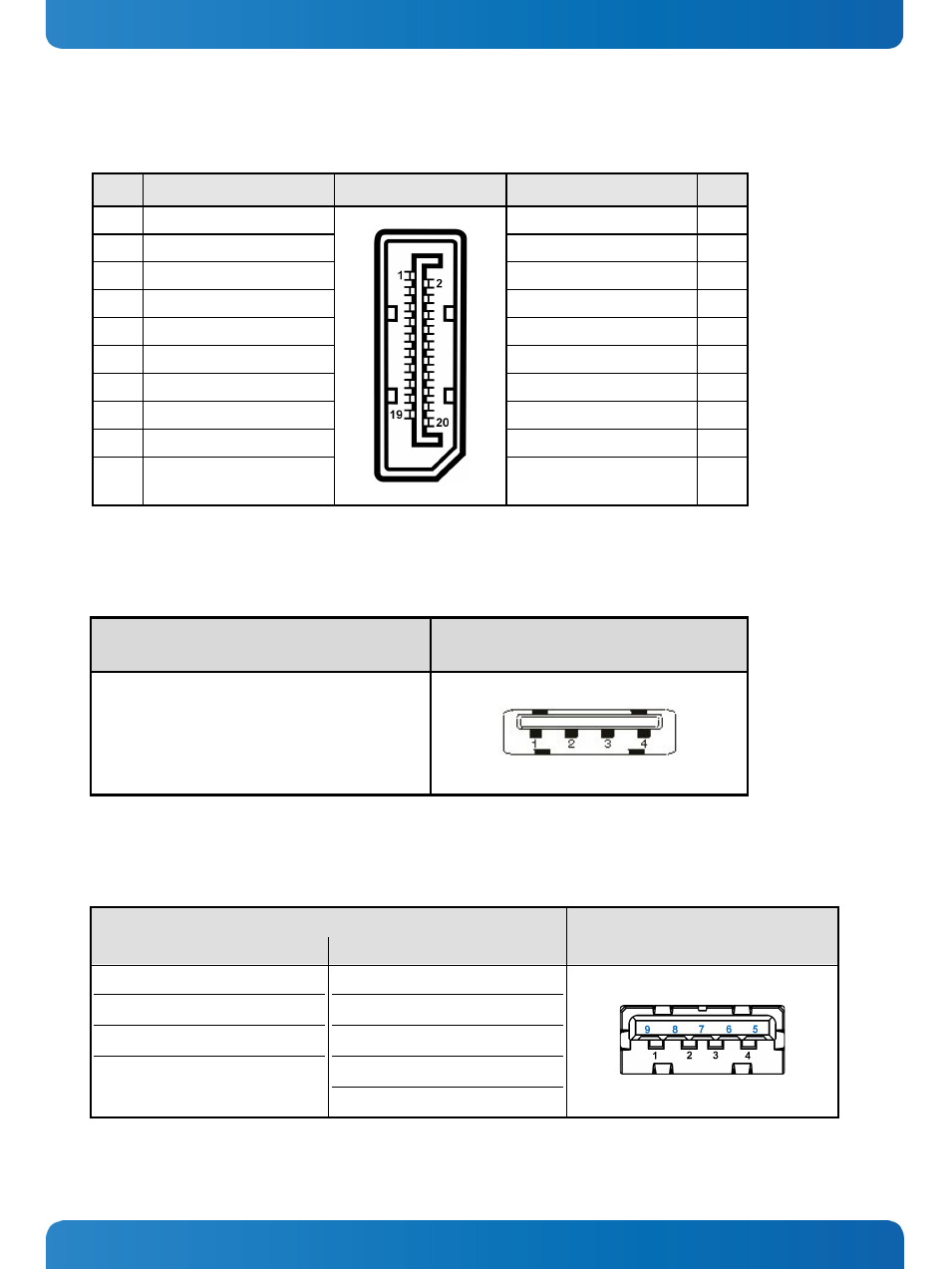

DP Connector (DisplayPort)
Pin# Signalname
DisplayPort
Signalname
Pin#
1
ML Lane 0 (p)
GND (ML Lane 0)
2
3
ML Lane 0 (n)
Lane 1 (p)
4
5
GND (ML Lane 1)
Lane 1 (n)
6
7
Lane 2 (p)
GND (ML Lane 2)
8
9
Lane 2 (n)
Lane 3 (p)
10
11
GND (ML Lane 3)
Lane 3 (n)
12
13
AUX SEL#
Pull-down to GND
14
15
AUX CH (p)
GND (AUX CH)
16
17
AUX CH (n)
Hot Plug
18
19
GND (GND_DDC)
3.3V (DDC EEPROM power
500 mA fused
20
12.1.8.
USB 2.0 Port
Pin
Signalname
4-poliger USB Connector
Typ A Version 2.0
1
VCC
2
Data-
3
Data+
4
GND
12.1.9.
USB3.0 Port
Pin
Signalname
9-pin USB Connector
Type A Version 3.0/2.0
USB 2.0-Kontakte
USB 3.0-Kontakte
1
VCC, fused (900 mA max.)
2
Data-
3
Data+
4
GND
5
StdA_SSRX-
6
StdA_SSRX+
7
GND_DRAIN
8
StdA_SSTX-
9
StdA_SSTX+
