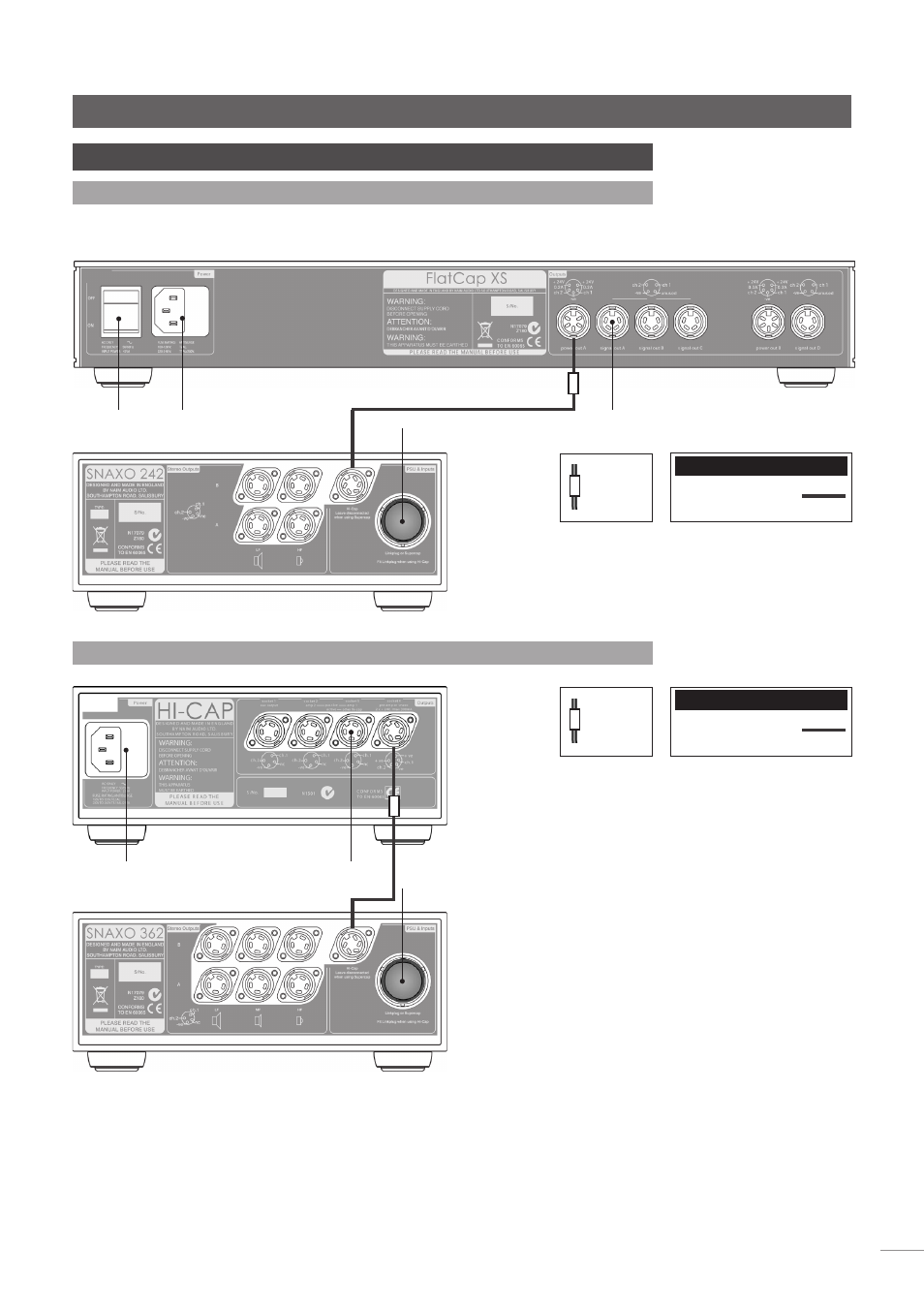

SNAXO Power Supply Connections
5 SNAXO Power Supply Connections
5.1 SNAXO 242 connected to Flatcap XS
5.2 SNAXO 362 connected to Hi-Cap
cable
direction
marker
cable
direction
marker
240° 5 to 5 pin DIN
240° 5 to 5 pin DIN
Interconnect Cables
Interconnect Cables
mains
input
and fuse
signal input (from preamplifier
power supply)
signal input (from
preamplifier power
supply)
power
link plug fitted
link plug fitted
mains input
and fuse
