Premium-web-line, Quick manual – Brennenstuhl Premium-Web-Line Internet Extension Socket 4-way black 3m H05VV-F 3G1,5 2 Master 2 Slave Benutzerhandbuch
Seite 2
Design Patent
LAN / W-LAN
INTERNET / WEB
Intended use
The multiple socket strip is used to control, measure
and monitor the 230V power supply of electric devices
with a web browser via a network
(Ethernet).
The multiple socket strip is intended to be used
only in dry rooms. Any other use
is not permitted. If you have any questions regarding
spare parts or repairs, please contact the manufacturer.

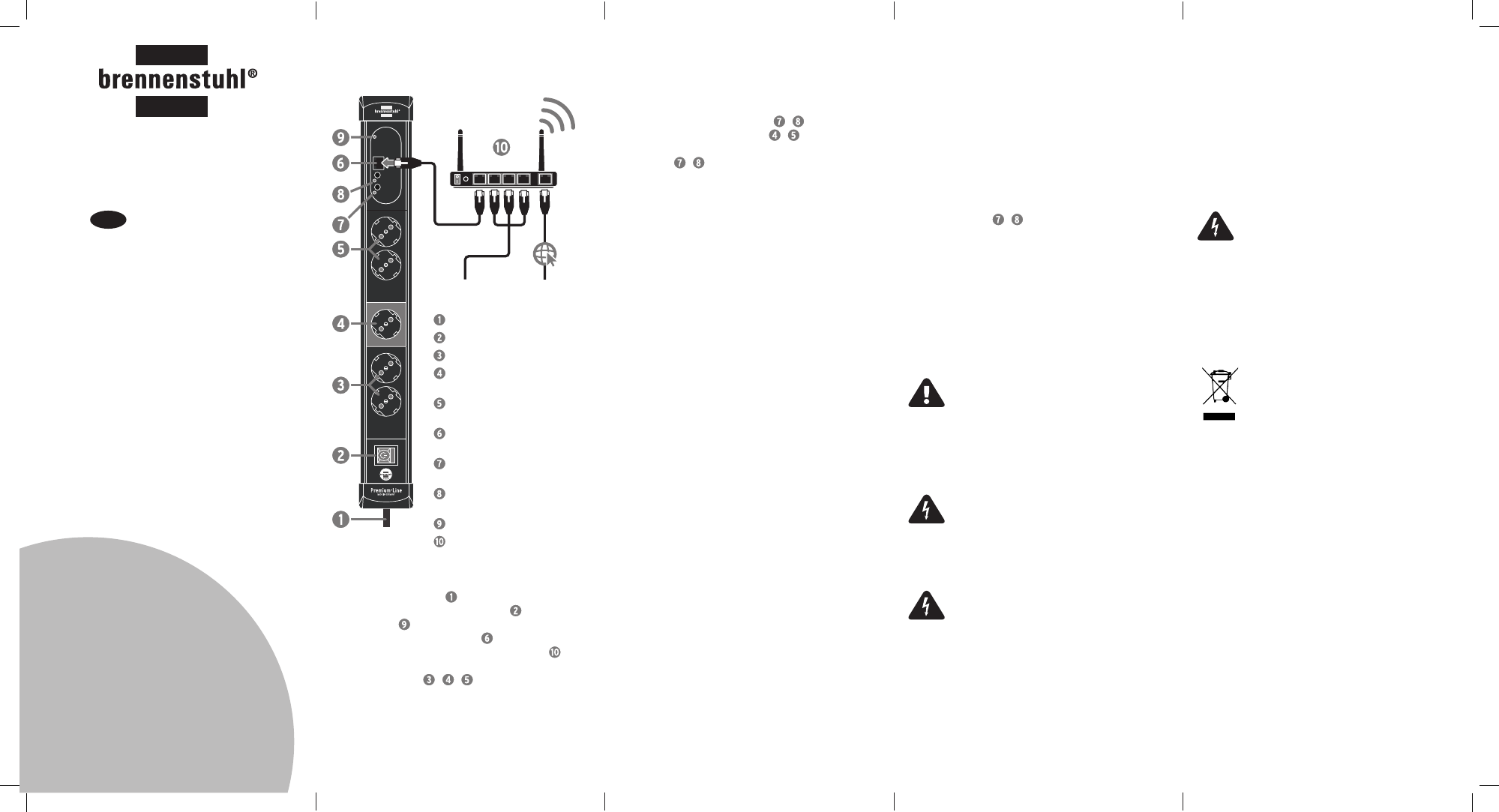

Structural overview
Depending on the product version, the
technical features differ:
Connection
• Connect the power plug
to a wall socket and
turn the device on with the main switch
.
¬ The Power
display is illuminated.
• Connect the network connection
of the
multiple socket strip to a free port of your router
.
• Connect the desired devices to the
respective socket (
,
,
) of the
multiple socket strip.
Scope of delivery
1 x Premium-Web-Line multiple socket strip
1 x Ethernet cable, 1 metre
1 x Brief instructions
Cable with power plug
Main switch
Permanent sockets
ON/OFF 1 sockets
(Master)
ON/OFF 2 sockets
(Slave)
Network connection
(Ethernet)
ON/OFF 1 button/display
(Master)
ON/OFF 2 button/display
(Slave)
Power display
Router
(not included in the scope of delivery)
Manual operation at the device
• Any permanent sockets are permanently
switched on when the multiple socket strip is connected
and turned on. They cannot be controlled with the
Internet browser.
• Briefly press the ON/OFF buttons (
,
) to manually
turn the corresponding sockets (
,
) on or off.
• The respective switching condition is indicated by the two
displays (
,
).
Determination/configuration of the IP address
In order to call the web interface of the multiple socket strip
you need its IP address.
•
With DHCP server:
(integrated in most routers)
The multiple socket strip is automatically
assigned an IP address when it is turned on.
Determine it from the settings of the
DHCP server (router) and set it to assign the same
IP address at every start-up.
•
No DHCP server/static IP address:
In order to read out and/or configure the IP address
of the multiple socket strip, please use our computer
software „BS-Finder“.
Go to www.brennenstuhl.com to download
it for free. You will also find detailed instructions there.
Configuration/operation with web interface
LAN / WLAN application:
• Make sure that your computer/tablet/smartphone is
connected to the same network as the multiple socket strip.
• Enter the determined IP address of the multiple socket
strip into the address bar of the web browser as follows:
http://“IP address“/ (e.g. http://192.168.0.100/)
• A login window is displayed. Log in as
follows (factory settings).
User name:
admin
Password: admin
• You are now in the status window of the web interface
of the multiple socket strip.
• Download a detailed manual with all possible settings
for free at www.brennenstuhl.com.
• Please change the user name and password to protect
the multiple socket strip from unauthorised access.
Premium-Web-Line
PWL ...
GB
Quick Manual
Technical data
Designation:
PWL ...
Supply voltage:
230 V~
Total power:
max. 16A / 3500W
µ
Power consumption:
< 0.9 W
(sleep mode, relay off)
Network connection:
Ethernet 10/100 Mbit/s
Safety instructions
Observe the following safety instructions. Failure
to comply may result in damage to persons and property.
The guarantee becomes void if damage is caused by failure
to comply with this manual, in particular with the safety
instructions. Furthermore, the manufacturer shall not be
liable for consequential damage.
Danger!
Danger to life due to electric shock
Do not touch damaged, open or live parts!There is a danger of
electrical shock. Before using the multiple socket strip,
check it for damage. If the cable insulation or the housing is
damaged, the multiple socket strip may no longer be used.
Maintenance and cleaning
The multiple socket strip is maintenance-free.
Disposal
Do not dispose of electronic devices
together with household waste!
According to the European directive 2012/19/EU
on waste electrical and electronic equipment, used electric
devices have to be collected separately and recycled in an
environmentally-friendly manner. In order to find out ways to
dispose of the disused device, contact your local or municipal
authorities.
Declaration of conformity
In accordance with the following European Directives,
the CE label is attached:
• 2006/95/EC Low voltage directive
• 2004/108/EC EMC directive
• 2011/65/EU (RoHS II)
The declaration of conformity is kept on file
by the manufacturer.
Manufacturer:
Hugo Brennenstuhl GmbH & Co. KG
Seestr. 1-3 · 72074 Tübingen · Germany
www.brennenstuhl.com
Danger!
Devices that start without supervision
Electric devices and consumers that are started without
supervision may represent a source of danger. For this reason,
only use the switching function for devices that were expressly
released by their manufacturers for this purpose and do not
cause any danger on start-up. In the case of doubt, please
contact the respective manufacturer before use.
• To avoid danger, a damaged connection cable of the
multiple socket strip may only be replaced by the
manufacturer, its service representative or a similar expert.
• Do not manipulate or modify the multiple socket strip.
Danger!
Danger to life due to electric shock
Do not touch damaged, open and live parts of the multiple
socket strip and the cable! Otherwise, there is danger to life
due to electric shock!
• Never clean the multiple socket strip while it is energized.
• Prior to cleaning, always disconnect the power plug
from the socket.
• Never submerge the multiple socket strip in water.
Clean the multiple socket strip with a dry cloth.
INTERNET / WEB application:
The following is required to access the multiple socket strip
from the Internet:
• Internet access with static IP address or dynamic
DNS server (e.g. www.noip.com)
• Active port forwarding in the router to allow connections
between the Internet and the multiple socket strip
in the network.
Download a detailed manual with configuration examples
for free at www.brennenstuhl.com.
• Only have it repaired by experts.
• Keep the multiple socket strip out of the reach of children.
• Only operate one device per socket.
• Do not cover the multiple socket strip while it is
in operation.
• Place the device close to a mains socket and make sure
it is accessible in order to be able to disconnect the
device from the mains at any time.
Loading factory settings
Press both buttons (
,
) at the same time for approx.
5 seconds to reset the multiple socket strip to the factory
settings. This may be helpful, e.g. if you lost the access data.
Caution: All settings are lost in the process!
