Installation
9 · G&D FIBREVision-USB 2.0

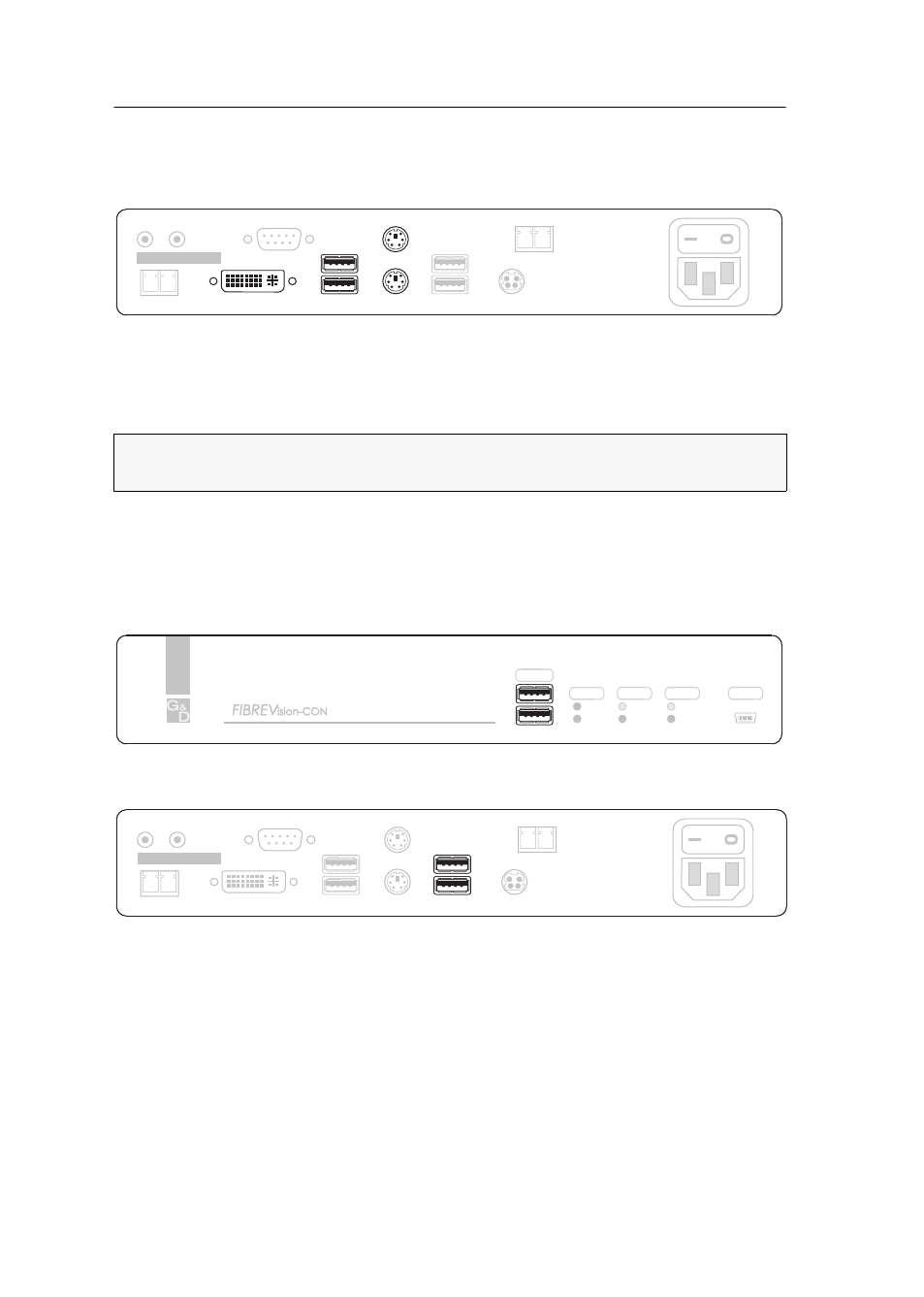

Installing the user module
Connecting the remote console
DVI/VGA Out:
Connect the local console monitor to this interface.
If the monitor provides an analog VGA input, connect an optional adapter to this
interface. Afterwards, connect the monitor’s VGA cable to the adapter..
USB Keyb./Mouse:
Connect a USB keyboard and/or mouse to this interface.
Keyb.:
Connect the PS/2 keyboard of the local console to this interface.
Mouse:
Connect the PS/2 mouse of the local console to this interface.
Connecting USB 2.0 devices
USB 2.0:
Connect up to two USB devices to the front panel.
USB 2.0 Devices:
Connect up to two USB devices to the front panel.
The computer that is connected to the FIBREVision-CPU computer module can use
these USB devices as well as the devices that are directly connected to the computer.
NOTE:
Mouse and keyboard of the remote console can either be PS/2 or USB
devices.
DVI/VGA Out
Keyb.
Mouse
USB Keyb./Mouse
Rx
USB 2.0 Trans.
Tx
Class 1 Laser Product
Rx
Transmission
Tx
Main
Power
Red. Power
RS232
Speaker Micro In
USB 2.0 Devices
USB 2.0
Red.
Main
Power
Status
Trans.
Sys.
Video
K/M
Console
Service
USB 2.0 Devices
Rx
USB 2.0 Trans.
Tx
Class 1 Laser Product
Rx
Transmission
Tx
Main
Power
DVI/VGA Out
Red. Power
Keyb.
Mouse
RS232
Speaker Micro In
USB Keyb./Mouse
