5. Service

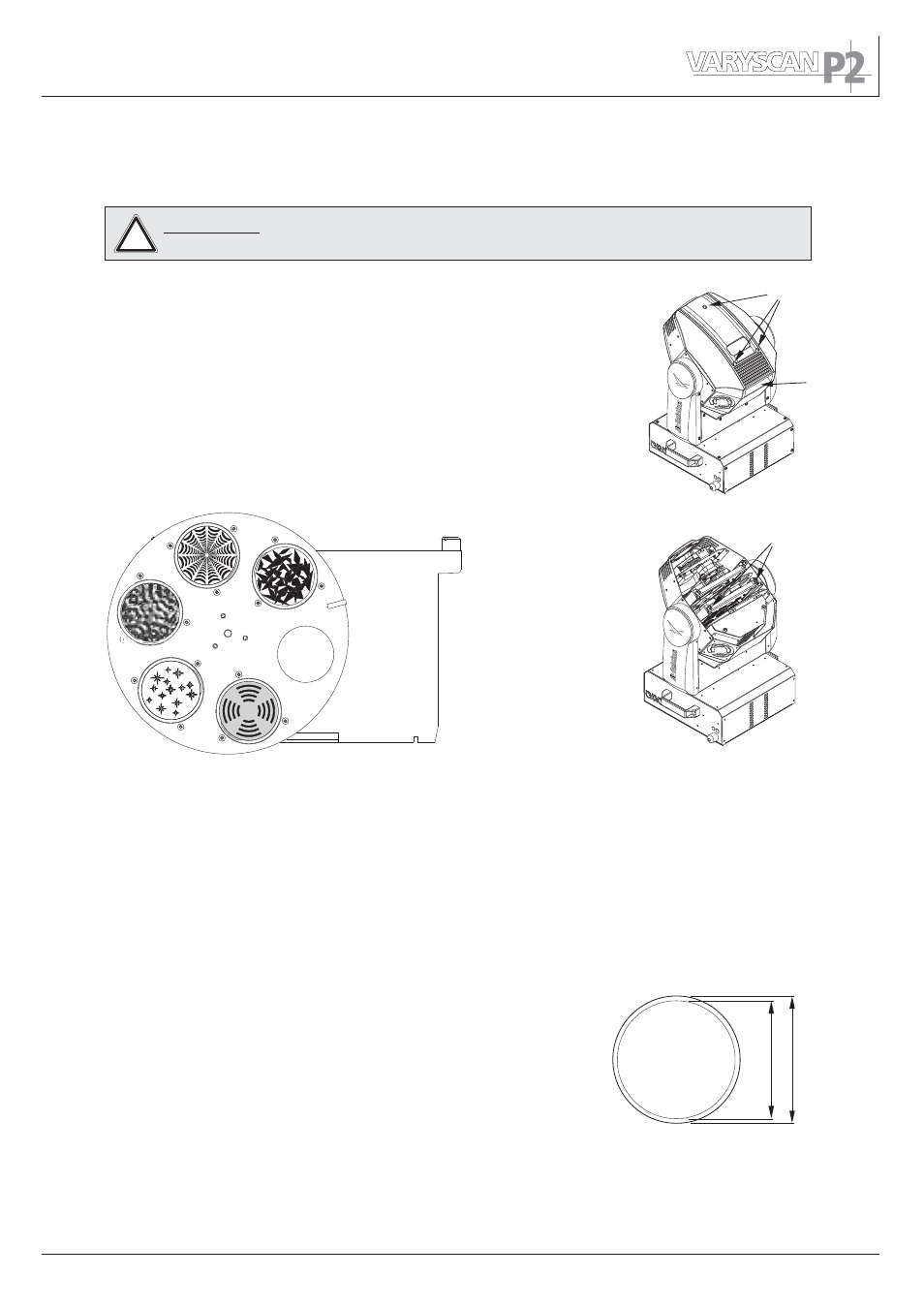

5.1 Gobo change
The gobos are fixed by means of a spring. To change gobo remove spring and
gobo and insert the new gobo. Readjust the spring to fix the gobo. Make sure
that the blacked side of the metal gobo is positioned opposide the lamp
(in direction of the objective). If you insert glass gobos make sure that the coated
side is positionend in opposide direction to the lamp.
If you want to order custom made gobos, have a look at the technical diagram.
Image diameter: 33 mm
Diameter: 37,5 mm (+0/-0,2 mm)
Position head in horizontal position. Hinge no. 1 must be on the
upper side of the head. Turn screws no. 2 1/2 turn left and remove
plastic lid.
Loosen knurled head screw no. 3 and remove the gobo module.
Standard assembly
33 mm
37,5 mm
1
2
3
WARNING: Disconnect fixture from mains, and allow
hot lamp to cool down for at least 30 minutes!
!
