27
brown black live “L”
blue white neutral “N”
yellow/green green ground
EU Model: US Model:
ATTENTION: Installation de la connexion au réseau doit être effectuée par
un professionnel!
!

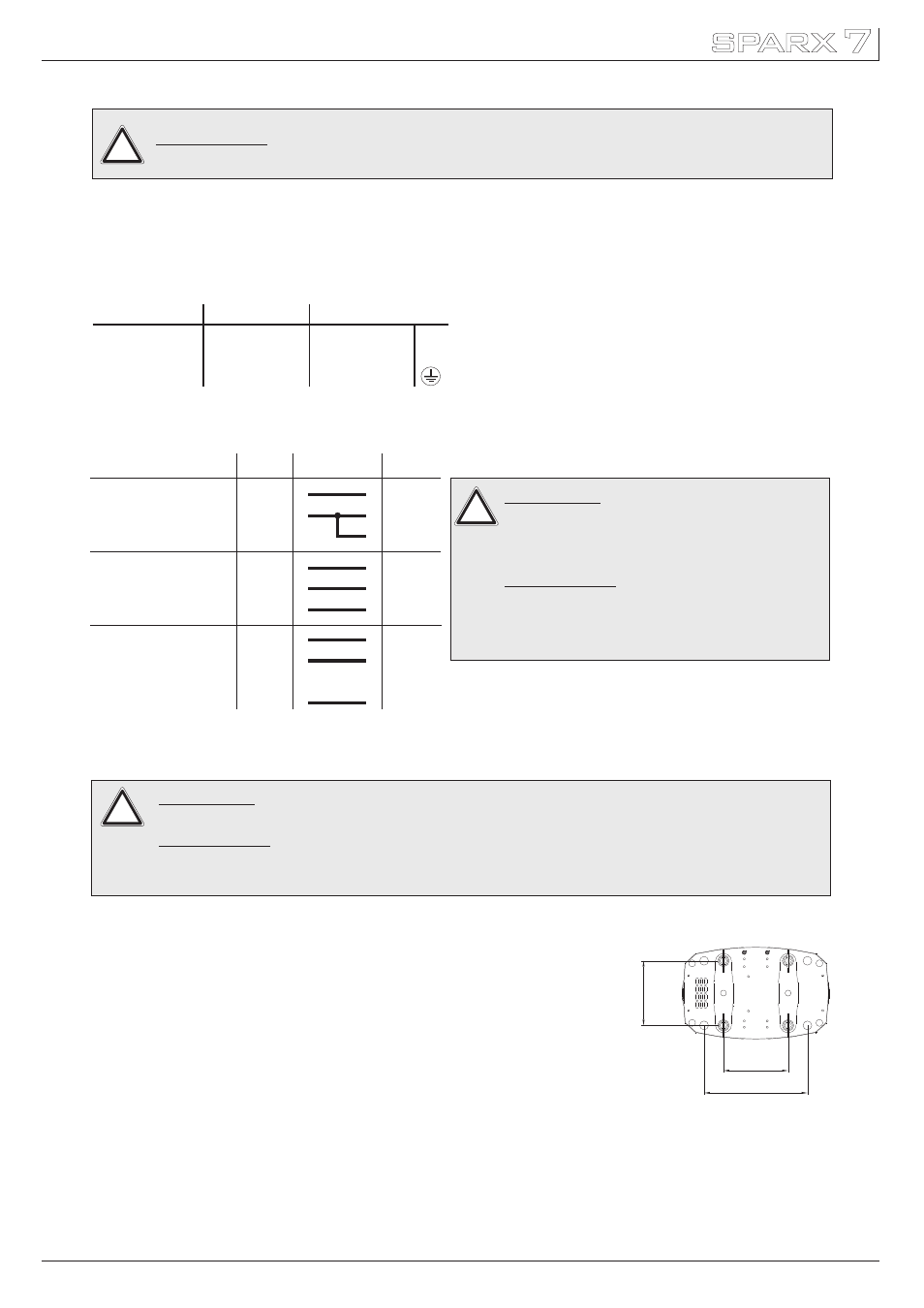

The Sparx7 may only be connected to mains supply systems according to this drawing:
2 conductor,
1 phase: L
N L
N
PE
3 conductor,
1 phase: L
N
L L
PE
N
4 conductor,
3 phase: L
1
L
2
L
3
N
L
N
PE
mains Sparx7
WARNING:
in Canadian mains supply system
with 2 cond., 1 phase with max.
120V!
ATTENTION: Le Sparx7 peut être
utilisé au Canada avec 2 conduc-
teurs, 1 phase et une tension max-
imal de 120V! Sparx7 only can be used
!
3.2 Rigging the fixture
WARNING: Keep fixtures at least 0,5 m away from inflamable articles!
Always use a safety cable attached to the base!
ATTENTION: Respecter une distance minimale de 0,5m entre le projecteur
est d'éventuelles objets inflammables! Sécuriser toujours le
Sparx7 avec une élingue de sécurité appropriée!
!
The Sparx7 can either be placed on the floor or hang on a trussing
system in any position. When placing the unit on the floor make
sure that it stands on rigid ground, because the air inlets in the
base must not be covered with anything! To mount the unit on a
trussing system use two of the original JB-Lighting omega
brackets with Camloc-connectors. The Camlocs must snap in to
be locked propperly. Always attach a safety cable to secure the
unit.
Install a 3-prong grounding type plug that fits your supply.
Connected load: voltage 100-240 V, frequency 50-60 Hz
224
140
1
4
0
