JB-Lighting Varycolor P3 250 HTI - Handbuch (Seite 21)

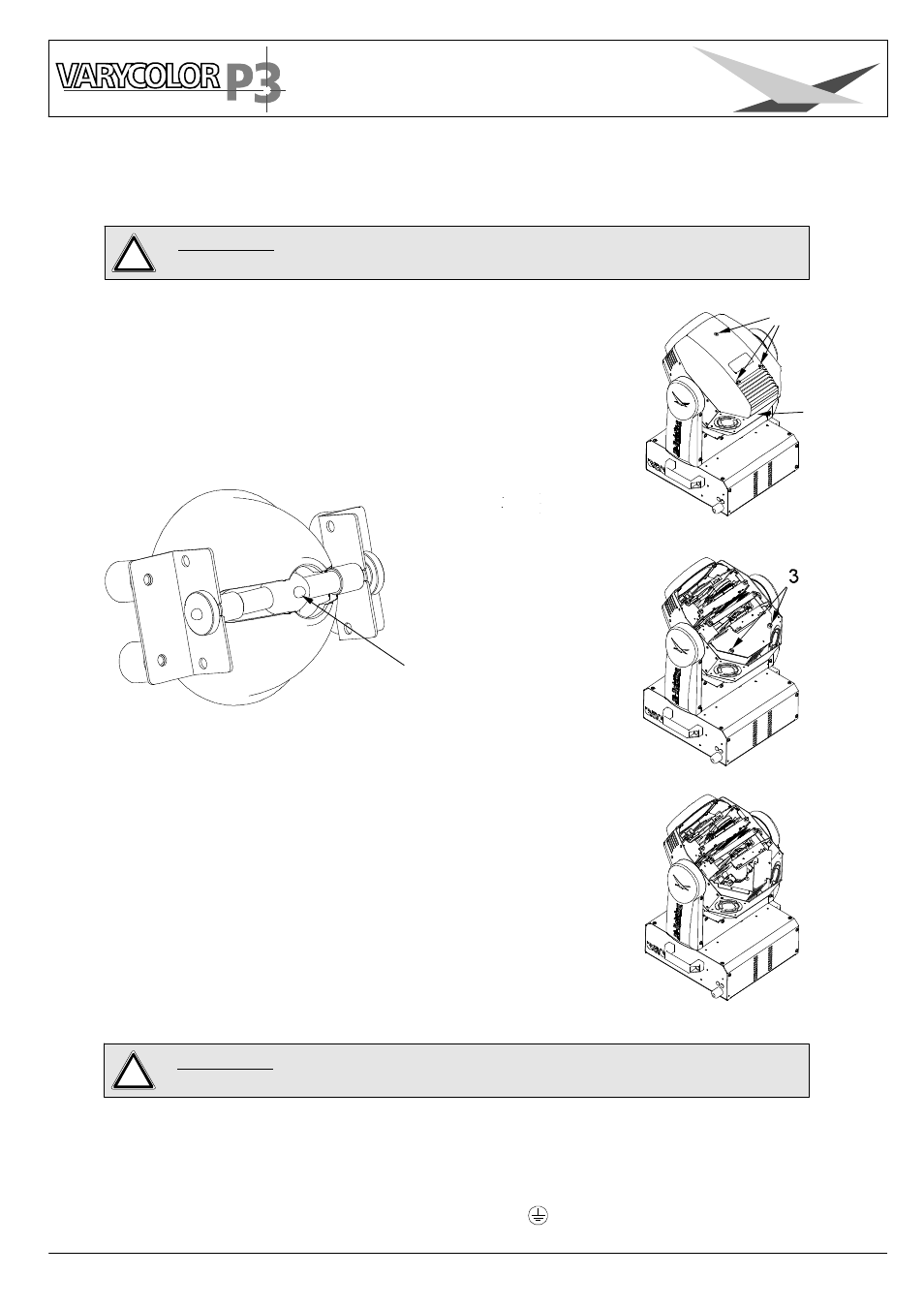

Insert the lamp into the lamp holder. The nipple of the lamp
must face the top lid of the head. (See sketch).
If changing the lamp, remove old lamp from
lamp socket. Hold the new lamp only by its
ceramic base. Never touch the glass bulb.
2.1 Installing or changing the lamp
2. Installation
Position head in horizontal position. Hinge no. 1 must be on the
upper side of the head. Turn screws no. 2 1/2 turn left and remove
plastic lid.
Loosen knurled head screw no. 3 and put up the lampcover.
Light source: OSRAM Baby-SharXS - HTI 250W/D5/80
Install a 3-prong grounding type plug that fits your supply
Connected load: voltage 230 V, frequency 50 Hz
2.2 Powering the fixture
brown live “L”
blue neutral “N”
yellow/green ground
JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein Telefon +49 (0)7304-9617-0
WARNING: Disconnect fixture from mains, and allow
hot lamp to cool down for at least 30 minutes!
!
WARNING: To ensure propper installation of the plug consult
a qualified technician!
!
1
2
nipple
21
