Connection
General information
Assure that the device is
switched
off and un-
plugged.
Read the manual of your
TV
and attend to the
safety instructions.
Connect the power cable
at last with a electronic
socket.

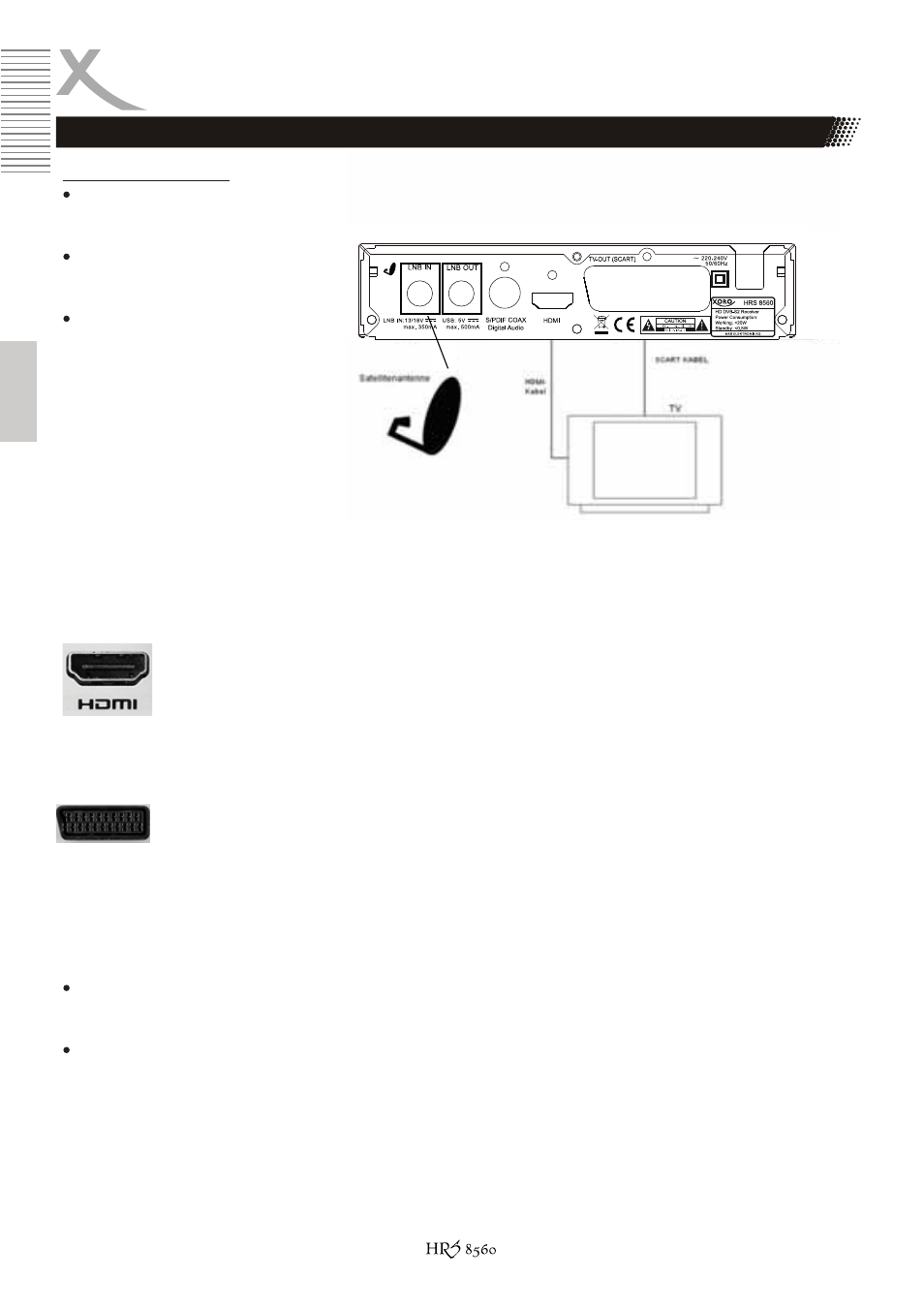

The HRS8560 could be connected either through HDMI or scart to TV. Please connect the receiver
through HDMI if possible. The TV could only display the signal in high definition quality through HDMI
out put.
HDMI:
SCART:
Notes:
The HRS8560 is designed for TV with 16:9 as aspect ratio. Please refer to the page 32 how
to set a TV with aspect ratio 4:3 to fit the receiver. It is also described there how to change
the HDMI resolution and signal type under the SCART connection.
Please employ high quality cables. Low quality cables ( especially up 1,5 m length) might
cause picture failure or make an image transmission impossible. Poorly shielded cables might
result in “double image” or disturbing sound.
Connecting to the TV
Connect the HDMI output of HRS8560 to a free HDMI input of the TV. Please read the
manual of your TV to select the HDMI input. Generally the TV does not switch
automatically to the HDMI input upon connection. A HDMI cable is necessary for this
connection. It is not included in the delivery of the receiver.
Connect the TV SCART output of HRS8560 to a free SCART input of the TV.
Please read the manual of your TV to select the SCART input. Generally the TV
does not switch automatically to the SCART input upon connection. A SCART cable
is necessary for this connection. It is not included in the delivery of the receiver.
