Introduction
2 - Speed hammer drill PSB 1050 A1
Q Introduction
Please make sure you familiarise yourself
fully with the way the device works before
you use it for the first time and that you
understand how to handle electrical power tools
correctly. To help you do this please read the ac-
companying operating instructions.
Q Proper use
The appliance is suitable for percussion drilling into
brick, concrete, stone and drilling into wood, metal,
ceramic and plastic (see Figs. B - F). Thanks to its
anticlockwise / clockwise rotation, the appliance
can also be used as a screwdriver. When drilling
into granite, we recommend you use a heavy - duty
hammer drill (rock drilling hammer). Any other use
or modification to the device shall be considered
as improper use and could give rise to considerable
risk of accident. The manufacturer will not accept li-
ability for loss or damage arising from improper use.
The device is not intended for commercial use.
Q Features
1 Quick - action drill chuck with lock
2 Changeover switch “drill / percussion drill”
3 Locking button for ON / OFF switch
4 ON / OFF switch
5 Handwheel for speed preselection
6 Rotational direction switch
7 Gear selector switch
8 Depth stop
9 Wing screw
10 Additional handle (see Fig. A)
11 Dust extraction device
12 Angle adaptor
13 Reducer piece

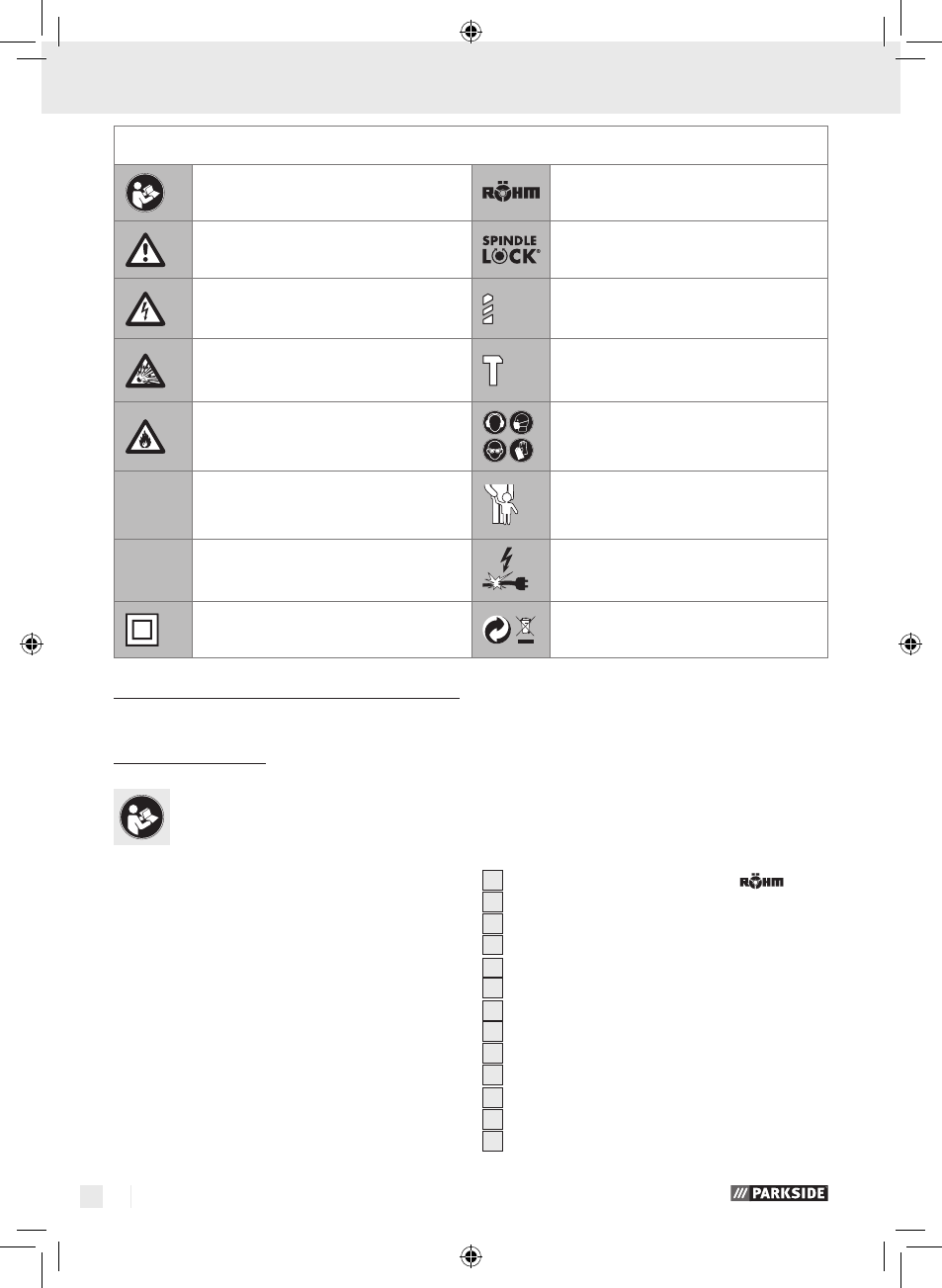

The following pictograms are used in these operating instructions / on the device:
Read instruction manual! Quick - release chuck
Observe caution and safety notes! Spindle lock
Caution – electric shock!
Danger to life!
Drilling
Explosive material! Impact drilling
Risk of fire!
Wear hearing protection, dust protec-
tion mask, protective gloves and pro-
tective glasses.
V~
Volt (AC)
Keep children away from electrical
power tools!
W
Watts (Effective power)
Check that the device, mains lead
and plug are in good condition!
Safety class II
Dispose packaging and appliance in
an environmentally - friendly way!
