6

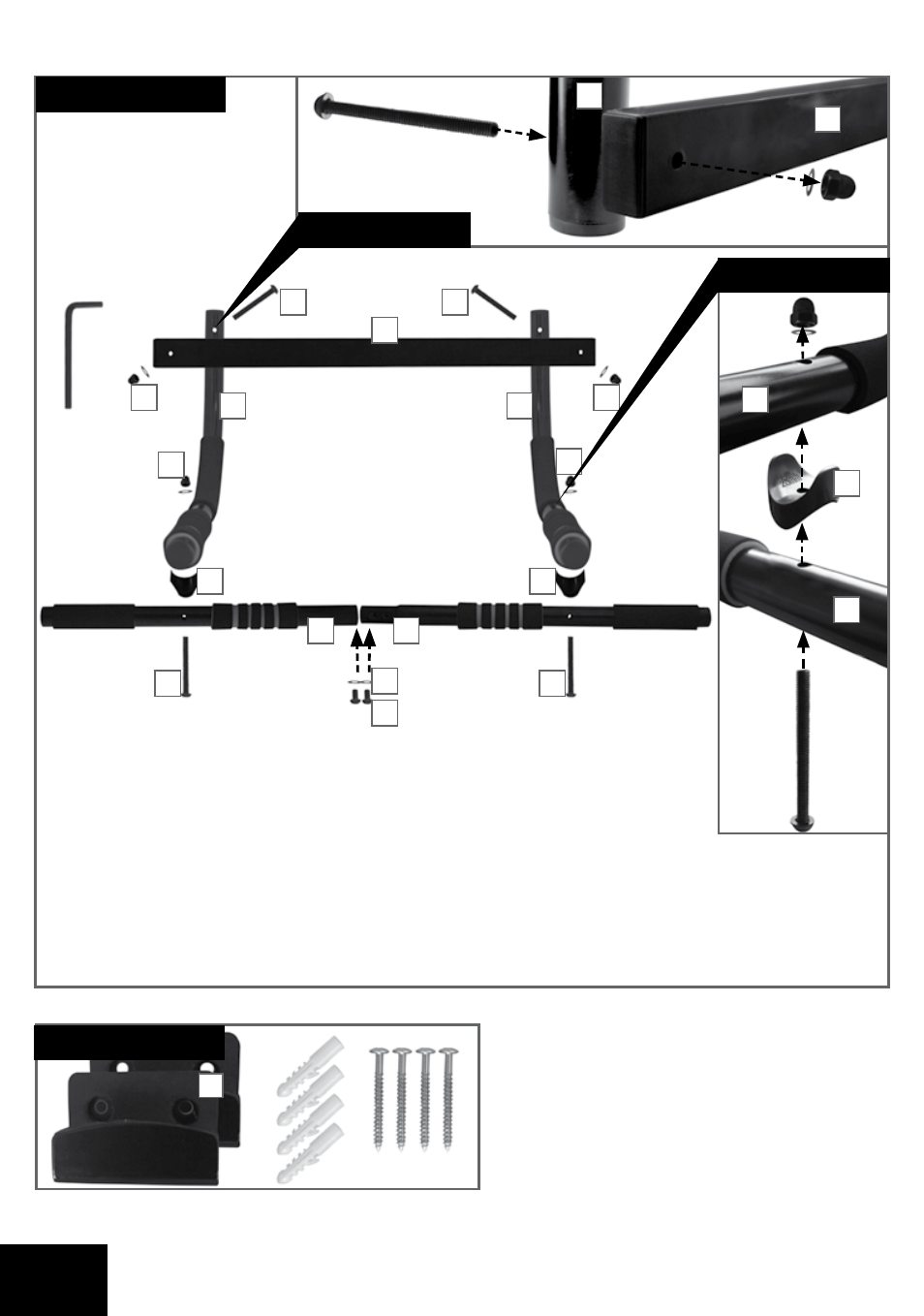

Parts overview:

Connect the rods (A) and (B) and secure with screws C) / washers (D).
Then connect the rods (E) and (F) using screws (G) (see fig.1a).
First add the washers (D), then the nuts (H), then tightly secure the screw.
Now connect the rods (A/B) and (F) using the screws (I) and the spacer (J). Be sure the
spacer is placed with the 28mm end below the rod (F) and the 32mm end on the rod (A/B)
(see fig. 1b). Insert the washers (D) before the nut (H) and tighten securely.

Fig. 2

K

B

c

A

e

D

G

G

f

f

Fig. 1a

H

H

H

H

I

I

J

J

Fig. 1

Fig. 1b

f

B

J

e

f
