8

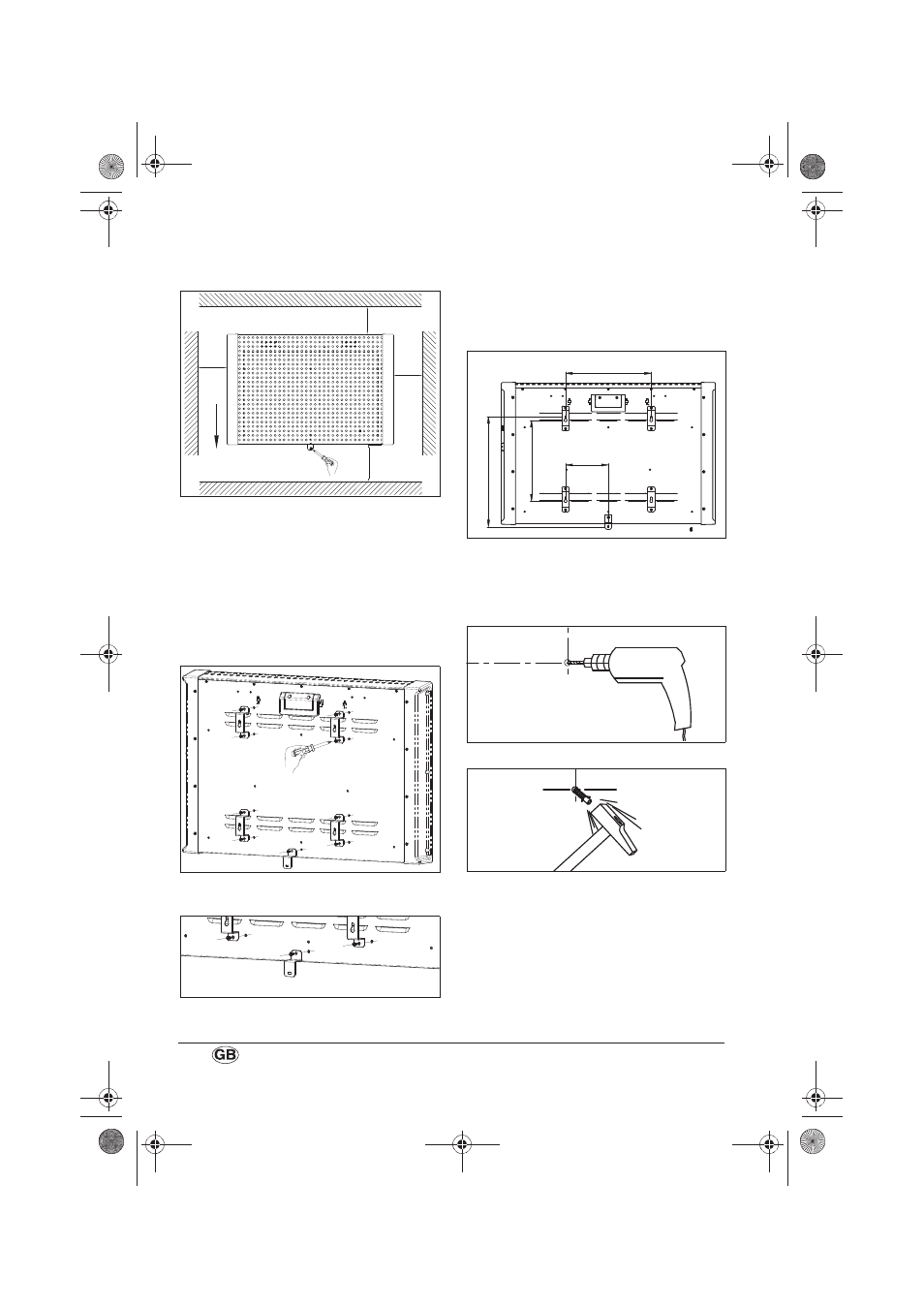

• Keep to the minimum dimensions
according to the diagram below.
• A suitable plug socket must be near
enough for the mains cable to reach the
socket.
Note: The feet may not be screwed on if
the appliance is to be mounted on a wall.
1. Screw the 4 wall brackets onto the rear
side 8 of the appliance using short
screws. Use the available holes 10 for
this.
2. Screw the fastening bracket securely into
the hole 9.
3. Screw 4 of the long screws supplied
securely to a wall suitable for this
purpose:
– Mark the drill holes according to the
diagram.
– Make sure that the lower and upper
drill holes are precisely horizontal.
– Using a 8 mm bit, drill approximately
30 mm deep.
– Insert a wall plug into each hole.
> 0,25 m
> 0,5 m
> 0,25 m
> 0,3 m
300
150
283
386
