4 GB/IE

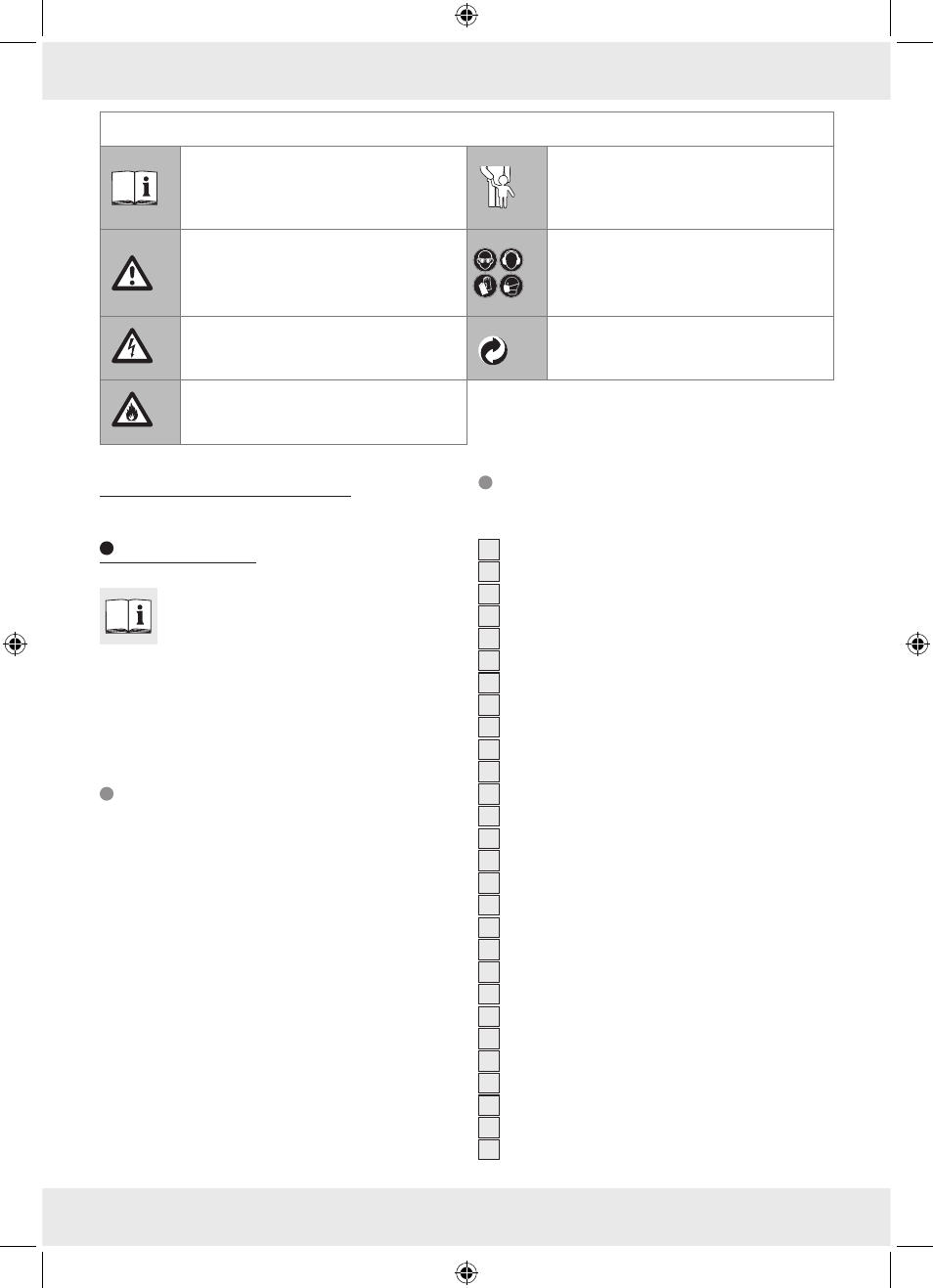

The following icons / symbols are used in this instruction manual:
Read instruction manual!
Never leave children unsupervised
with the packaging materials or the
device.
Observe caution and safety notes!
Wear protective glasses, hearing
protection, protective gloves and dust
protection mask.
Caution – electric shock!
Danger to life!
Dispose packaging and appliance in
an environmentally-friendly way!
Risk of fire!
ANGLE GRINDER STAND
Introduction
Familiarise yourself with the product
prior to assembly. Carefully read the
following assembly instructions and
safety tips. Only use the product as instructed and
only for the indicated field of application. Keep
instructions in a safe place. Submit all documents to
a third party if distributing the product.
Proper use
This product is intended to provide a method of
holding a hand-held angle grinder in a fixed position
while using it for cutting. The product is suitable for
most hand-held angle grinders that take a disc 115
or 125 mm diameter disc. Any use other than that
described above or modification to the product is
not permitted and could lead to injury and/or
damage to the product. The manufacturer accepts
no liability for loss or damage arising from improper
use. The product is not intended for commercial use.
Description of parts
and features
1 Adjustment screw with rubber buffer (short)
2 Metal rod
3 Handle
4 Nut (guard mount)
5 Safety guard
6 Plastic bushing M6
7 Plastic bushing M8
8 Washer (mounting bolt)
9 Mounting bolt M6 (angle grinder)
10 Mounting bolt M8 (angle grinder)
11 Mounting bolt M10 (angle grinder)
12 Nut (mounting bolt M6 angle grinder)
13 Nut (mounting bolt M8 angle grinder)
14 Nut (mounting bolt M10 angle grinder)
15 Distance piece (60 mm)
16 Distance piece (90 mm)
17 Distance piece (130 mm)
18 Front mounting piece
19 Plastic locating piece (mounting piece)
20 Adjustment screw with rubber buffer (long)
21 Fastening screw (vice)
22 Rotary adjustment knob (vice)
23 Vice adjustment thread (vice)
24 Guide bolt(vice)
25 Guide(vice)
26 Square nut (guide rail)
27 Stop (vice)
28 Stop (vice rear jaw)
