2. Montage des Schutzdeckels
2. Protective cover assembly
Hinweis:
siehe separate Montageanleitung
MA036, www.multi-contact-com
Note:
see separate assembly instruction
MA036, www.multi-contact.com
3. Montage der
Anschlussleitung
3. Cable connection

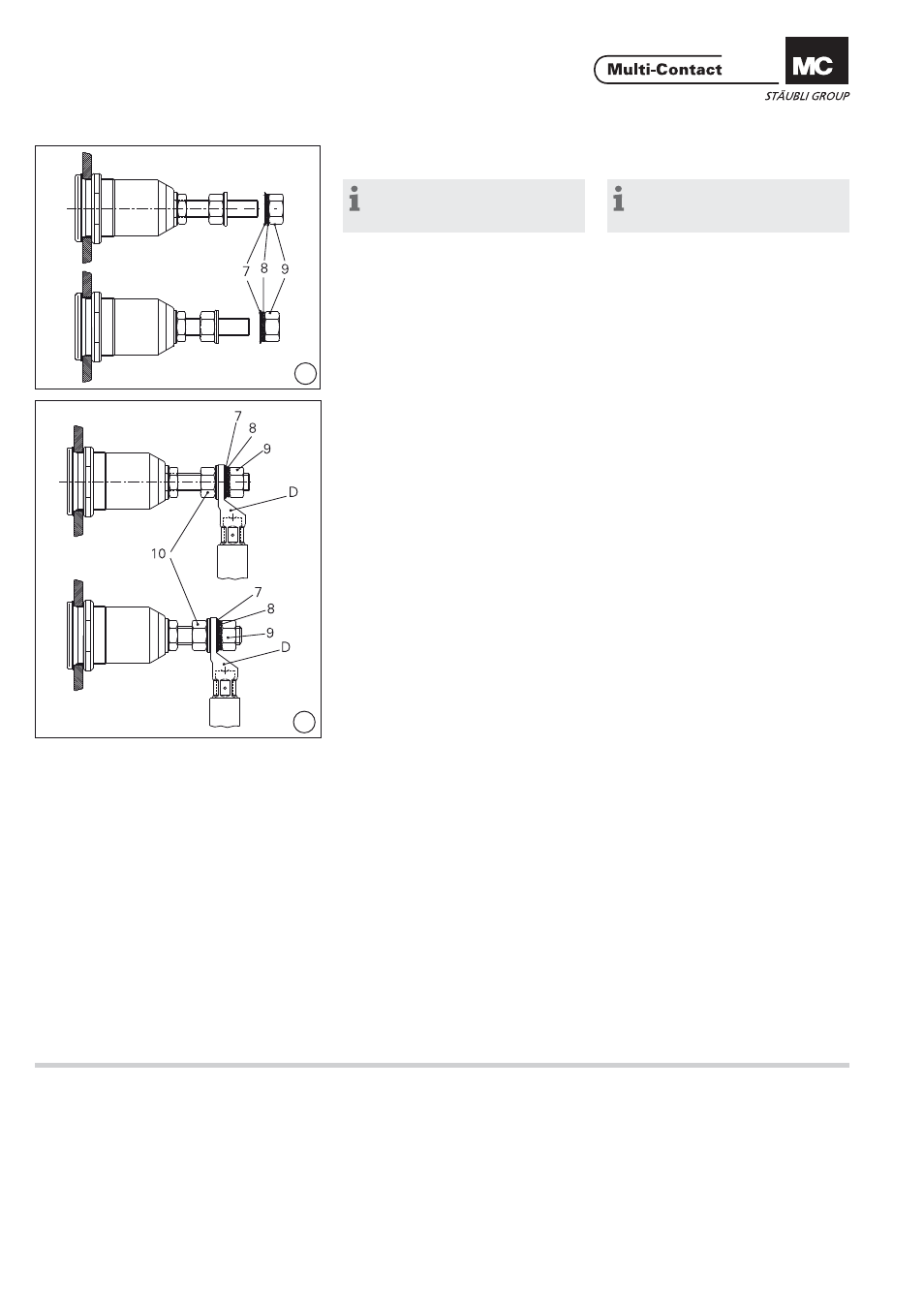

(ill. 8)
Mutter (9), Unterlegscheibe (7) und
Federscheibe (8) lösen.
(ill. 8)
Remove nut (9), washer (7), and lock
washer (8).
(ill. 9)
Kabelschuh (D) mit angeschlossener
Leitung auf das Gewinde schieben.
Unterlegscheibe (7), Federscheibe (8)
und Mutter (9) montieren. Mutter (9)
mit Drehmomentschlüssel SW22 an-
ziehen und mit Gabelschlüssel SW22
Mutter (10) kontern.
Anzugsdrehmoment: 14Nm.
(ill. 9)
Slip cable lug (D) with preassembled
cable onto the thread. Reinstall nut
(9), washer (7) and lock washer (8).
Tighten nut (9) with the torque span-
ner 22mm A/F and secure it with nut
(10) and the open-end spanner
22mm A/F. Tightening torque: 14Nm.
