Multi-Contact MA225 Benutzerhandbuch
Seite 5
Advanced Contact Technology
www.multi-contact.com
5 / 8
9
10
8
11

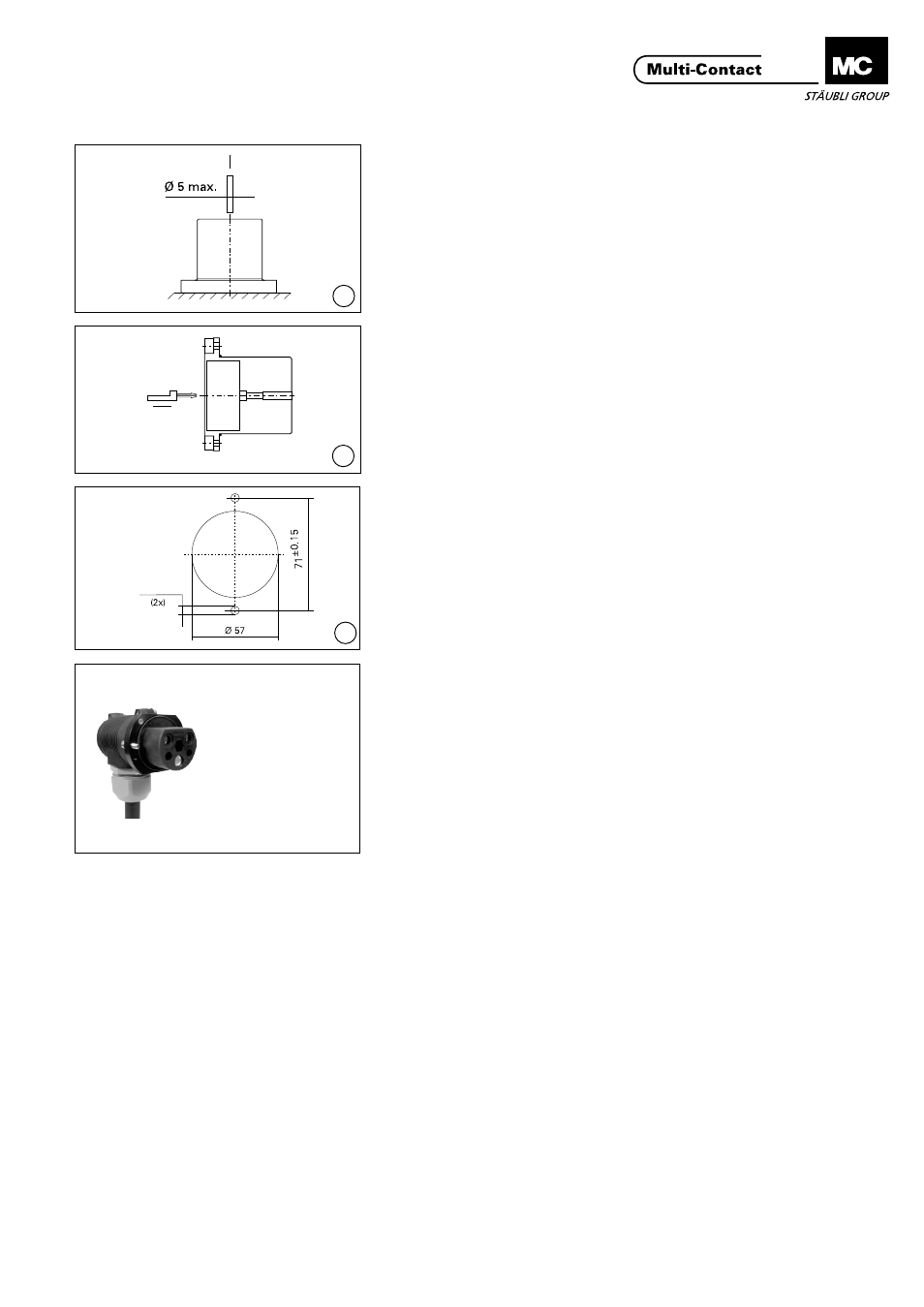

6-kant-Kodierung montieren
Assembly of hex. coding pin
(ill. 8)
Bohrung für 6-kant Kodierung
mittels Durchschlag (Ø 5 mm max.)
durchstosse n�
(ill. 8)
Break through the hole with a punch
(Ø 5 mm max.) for the hex. coding
pin�
(ill. 9)
6 kant Kodierung
(Typ 6KT�KOD�TID/S150, Best�-Nr�
30�5311) in gewünschter Lage bis
zum hörbaren Einrasten eindrücken�
(ill. 9)
Press-in the hex� coding pin
(Type 6KT�KOD�TID/S150, Order no�
30�5311) in the desired position until it
can be heard engaging�
Steckverbindermontage
Assembly of plug connector
(ill. 10)
Bohrungen gemäss Bohrplan anferti-
gen� Einbaudose auf Vorderseite der
Montagefläche aufschrauben.
(ill. 10)
Drill holes according to drilling plan�
Screw receptacle on to front assembly
surface�
(ill. 11)
Die Gewindebuchsen (B) erlauben
in Kombination mit dem drehbaren
Befestigungsflansch verschiedene
Montagevarianten�
(ill. 11)
The threaded socket (B) allows in
combination with the rotary mounting
flange different assembly possibilities.
M5
oder/or
Ø 5,5
Befestigungsflansch drehbar
Rotary mounting flange
