Advanced Contact Technology
4 / 6
www.multi-contact.com
6
5
7
Montage
Assembly

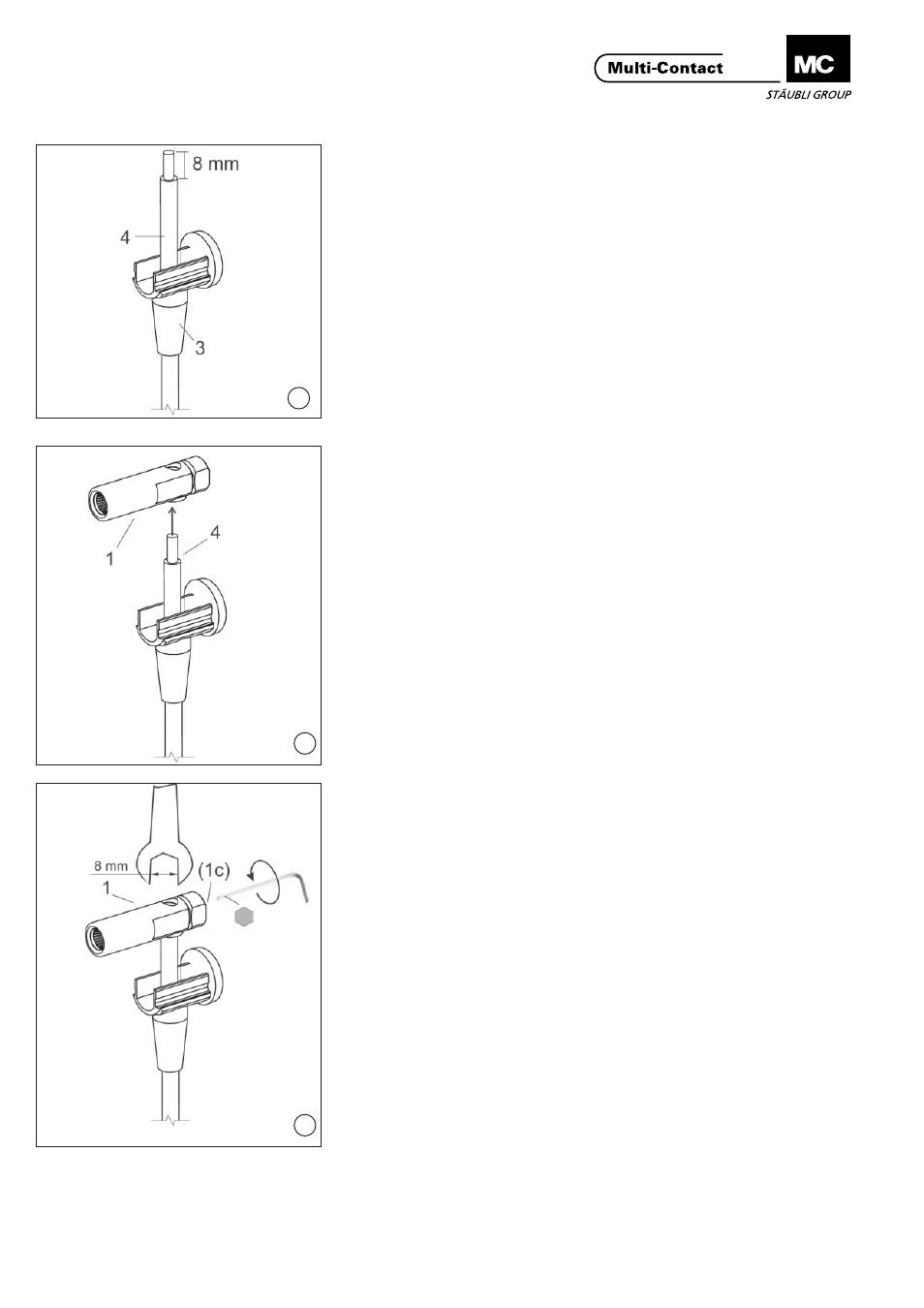

(ill. 5)
Leitung 4 durch Isolierungs-Unterteil 3
fädeln und abisolieren (ca. 8mm).
(ill. 5)
Thread wire 4 through lower part of
insulator 3 and strip wire insulation
(approx. 8mm).
(ill. 6)
Leitung 4 in Buchse 1 einstecken.
(ill. 6)
Insert wire 4 in socket 1.
(ill. 7)
Madenschraube (1c) festziehen,
Schraube muss vollständig in Buchse
1 verschwinden.
(Sechskantschlüssel HOP2, Anzugs-
drehmoment 0,7 ... 1,0Nm („hand-
fest“))
(ill. 7)
Tighten grubscrew (1c), screw must
completely disappear into socket 1.
(Hexagonal wrench HOP2, tightening
torque 0.7 ... 1.0Nm (“hand-tight”))
