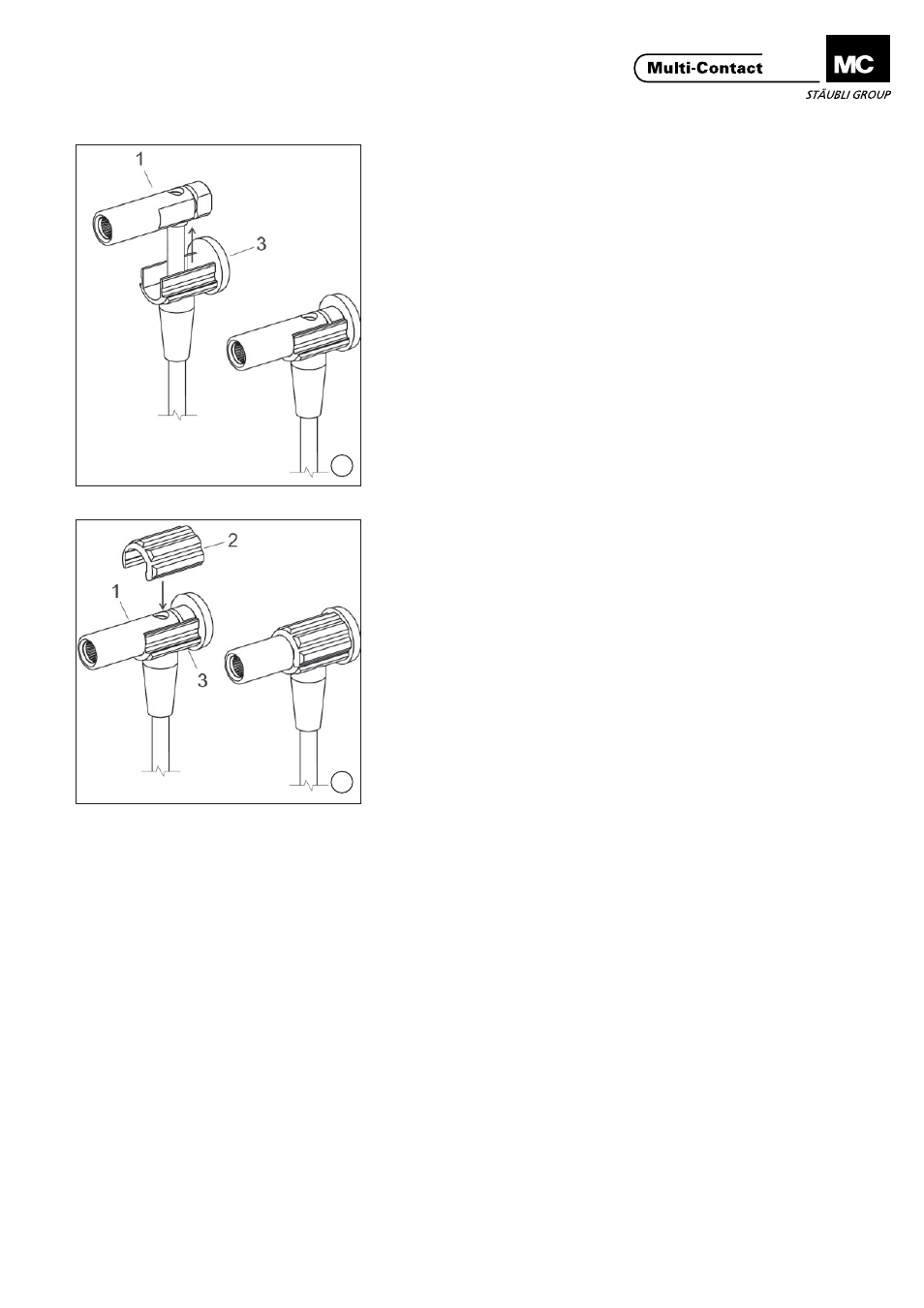

(ill. 8)
Isolierungs-Unterteil 3 heranschieben,
so dass Buchse 1 darin liegt.
(ill. 8)
Push up lower insulation part 3 so that
socket 1 rests in it.
(ill. 9)
Isolierungs-Oberteil 2 aufsetzen, so
dass sich dessen „Grat“ in die Nut der
Buchse 1 einpasst.
Danach Isolierungs-Ober- und -Unter-
teil (2 und 3) zusammendrücken, bis
beide spürbar ineinander rasten.
(ill. 9)
Place upper insulation part 2 in posi-
tion so that its “ridge” fi ts in the slot
of the socket 1.
Then press the upper and lower insu-
lator parts (2 and 3) together until they
are felt to engage in each other.
