Multi-Contact MA145 Benutzerhandbuch
Seite 3
Advanced Contact Technology
www.multi-contact.com
3 / 4
3
1
4
2
5
6
7
Tab. 1

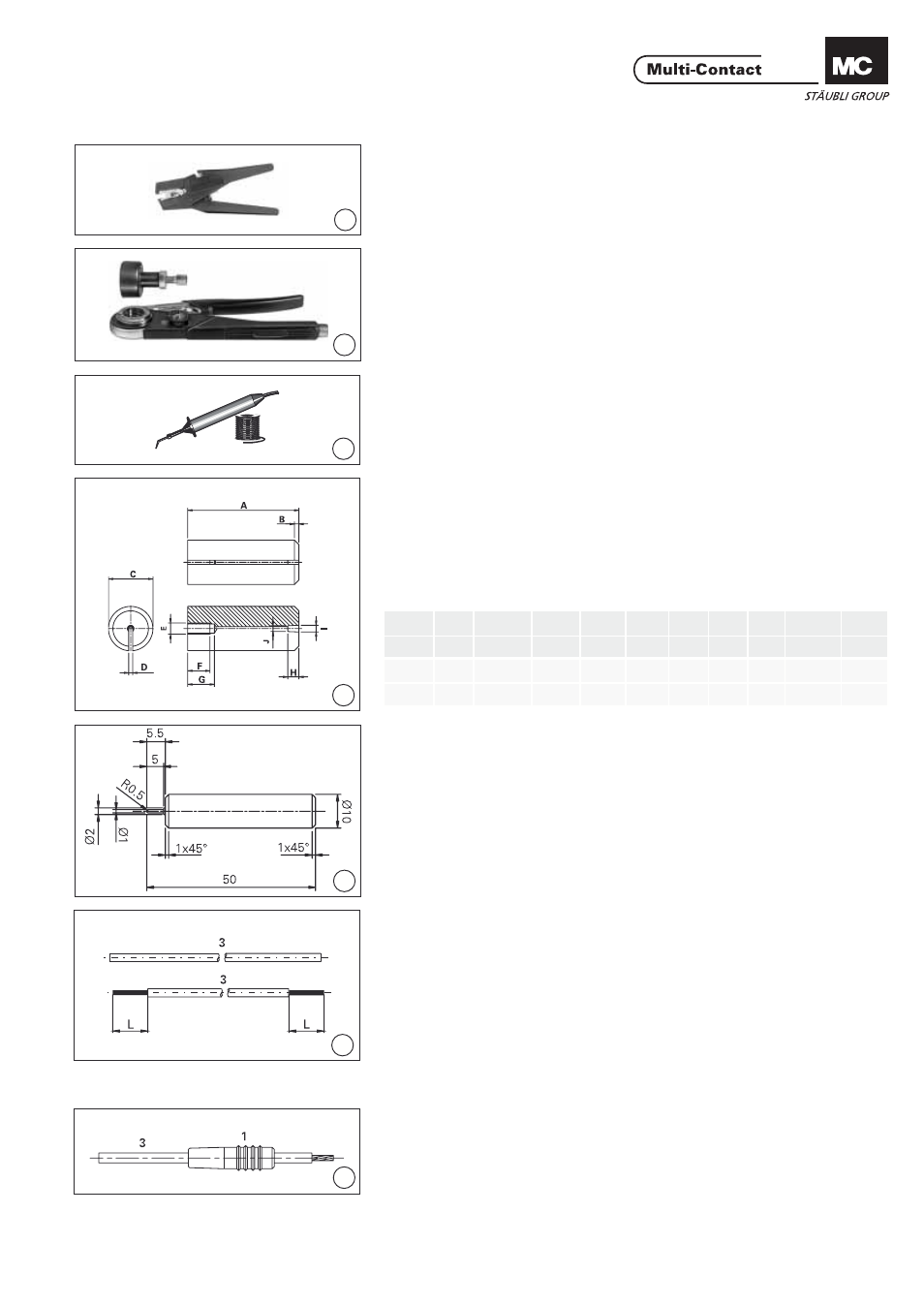

Notwendiges Werkzeug
Tools required
(ill. 1)
Abisolierzange „Stripax“
Bestell-Nr. 25.0015
(ill. 1)
Cable stripper “Stripax”
Order No. 25.0015
(ill. 2)
(für B1-TH)
Crimpwerkzeug M-CZ
Bestell-Nr. 18.3800
Locator MES-CZ-CT1,5/2
Bestell-Nr. 18.3802
(ill. 2)
(for B1-TH)
Crimping pliers M-CZ
Order No. 18.3800
Locator MES-CZ-CT1,5/2
Order No. 18.3802
(ill. 3)
- Lötkolben 60W
- Lötdraht
z.B. bleifreies Lot
Ø 1,5#58/405
(SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Bezugsquelle:
www.kester-online.de
(ill. 3)
- Soldering iron 60W
- Solder
e.g. lead free solder
Ø 1,5#58/405
(SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source of supply:
www.kester-online.de
(ill. 4)
Unteres Hilfswerkzeug
Empfohlenes Material: Messing
Abmessungen siehe Tab.1
(ill. 4)
Lower auxiliary tool.
Recommended material: Brass
Dimensions see Tab.1
A
B
C
D
E
F
G
H
I
J
mm
mm
mm
mm
mm
mm
mm
mm
KT1-S
50
2x45°
Ø20
1,8
M5
10
12
5
Ш3
Ш2,6
KT2-S
50
2x45°
Ø20
2,4
M5
10
12
6
Ш4,4
Ш3,4
(ill. 5)
Oberes Hilfswerkzeug
Empfohlenes Material: Stahl
(ill. 5)
Upper auxiliary tool.
Recommended material: Steel
Vorbereitung der Leitung
Preparation of the cable
(ill. 6)
Leitung 3 auf gewünschte Nenn-
länge ablängen und Leitungsenden
mittels Abisolierzange auf Länge L
abisoliere n:
- für LS1-B und LS1,25-B:
L = 3mm
- für B1-TH:
L = 4mm,
Leitung max. Ø2mm
(ill. 6)
Cut the cable 3 to the desired nomi-
nal length and strip ends of cable to
length L with cable stripper:
- for LS1-B and LS1,25-B:
L = 3mm
- für B1-TH:
L = 4mm,
Cable max. Ø2mm
Montage
Assembly
(ill. 7)
Tülle 1 auf Leitung 3 schieben.
(ill. 7)
Slide insulator 1 onto cable 3.
